Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

16 part groups · 3 illustrations

Illustrations

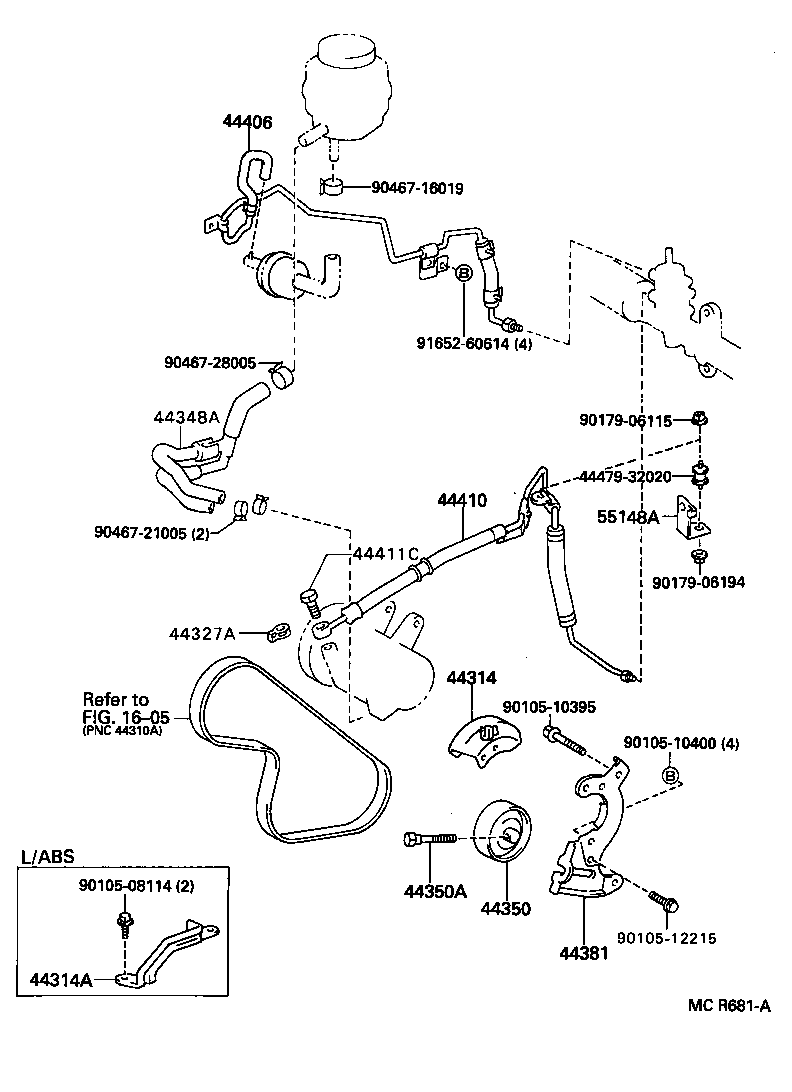

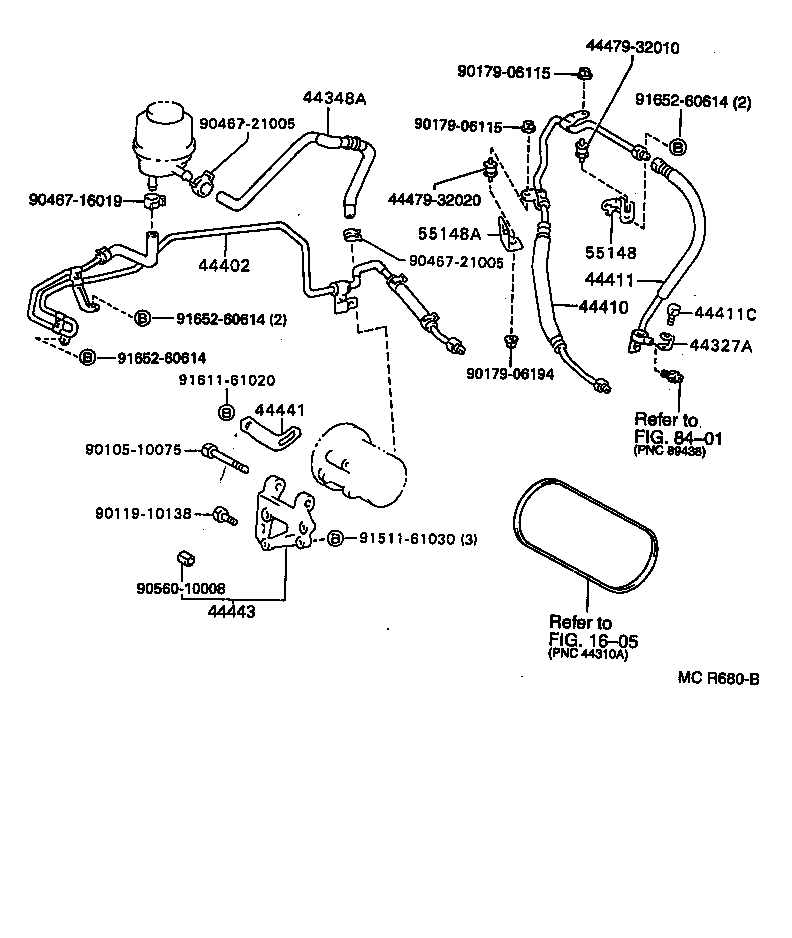

Figure MCR679A MCR679A 1994-06 → — Figure MCR680B MCR680B 1994-06 → — Figure MCR681A MCR681A 1994-06 → —

Part groups

PNCDescription
44314 Cover, Pulley
44314A Cover, Pulley, NO.2
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44350 Pulley Assy, Power Steering Idle
44350A Bolt(FOR POWER STEERING IDLE PULLEY)
44381 Bracket, Power Steering Idle Pulley
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44406 Tube Sub-assy, Return
44410 Tube Assy, Pressure Feed
44411 Hose, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44441 Bracket, Pump, Front
44443 Bracket, Pump
55148 Bracket, Power Steering Tube, N0.1
55148A Bracket, Power Steering Tube, N0.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
