Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Disc Brake Caliper & Dust Cover

29 part groups · 2 illustrations

Illustrations

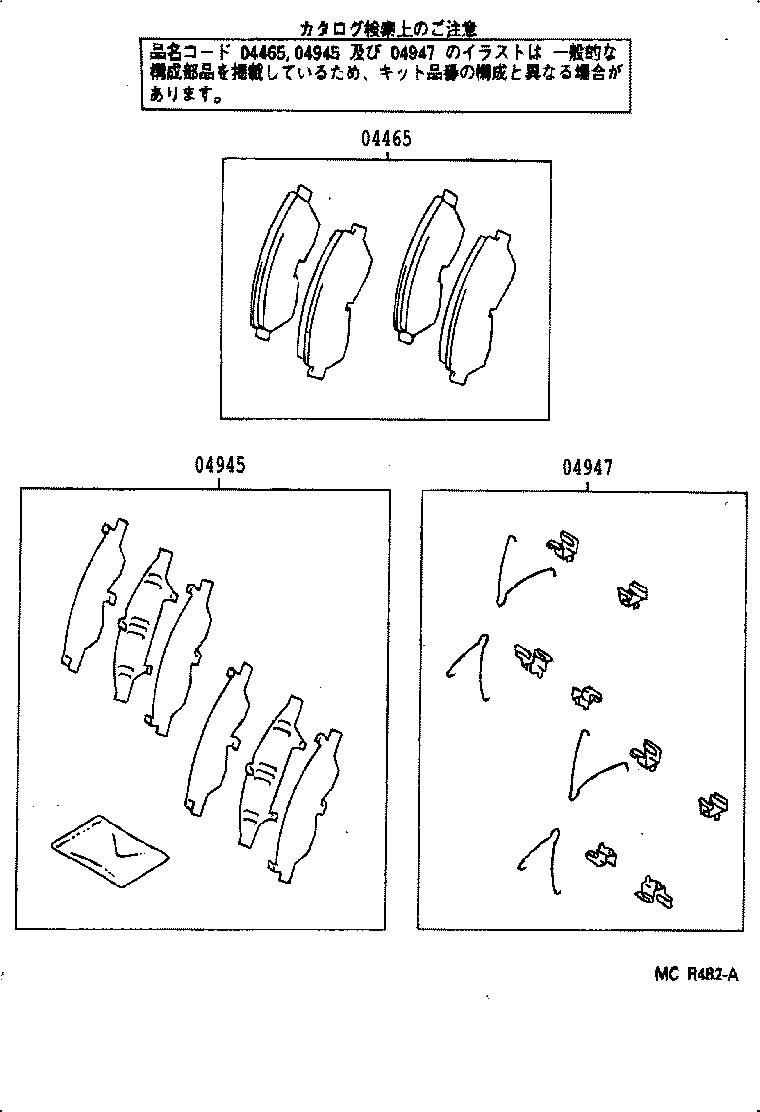

Figure 479132A 479132A 1994-06 → — Figure MCR482A MCR482A 1994-06 → —

Part groups

PNCDescription
04465 Pad Kit, Disc Brake, Front
04479 Cylinder Kit, Disc Brake, Front
04491 Pad Kit, Disc Brake, Front
04945 Shim Kit, Anti Squeal, Front
04947 Fitting Kit, Disc Brake, Front
31478B Cap, Bleeder Plug(FOR FRONT DISC BRAKE)
47547B Plug, Bleeder(FOR FRONT DISC BRAKE)
47703 Cover Sub-assy, Disc Brake Dust, Front RH
47704 Cover Sub-assy, Disc Brake Dust, Front LH
47710A Bolt, Hexagon(FOR FRONT DISC BRAKE CALIPER)
47715A Pin, Front Disc Brake Cylinder Slide
47715B Bolt(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47716 Plate, Pad Support, NO.1(FOR FRONT DISC BRAKE)
47717 Plate, Pad Support, NO.2(FOR FRONT DISC BRAKE)
47718A Plate, Pad Support, NO.3(FOR FRONT DISC BRAKE)
47719A Plate, Pad Support, NO.4(FOR FRONT DISC BRAKE)
47721 Mounting, Front Disc Brake Cylinder, RH
47722 Mounting, Front Disc Brake Cylinder, LH
47730 Cylinder Assy, Front Disc Brake, RH
47731 Piston, Front Disc Brake
47731A Ring, Set(FOR FRONT DISC BRAKE PISTON)
47743A Spring, Anti-squeal(FOR FRONT DISC BRAKE)
47744 Shim, Anti-squeal, NO.1(FOR FRONT DISC BRAKE)
47745 Shim, Anti-squeal, NO.2(FOR FRONT DISC BRAKE)
47745A Shim, Anti-squeal, NO.4(FOR FRONT DISC BRAKE)
47750 Cylinder Assy, Disc Brake, LH
47769 Bush, Cylinder Slide, NO.1(FOR FRONT DISC BRAKE)
47775 Boot, Bush Dust(FOR FRONT DISC BRAKE)
47781A Bolt(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
