Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

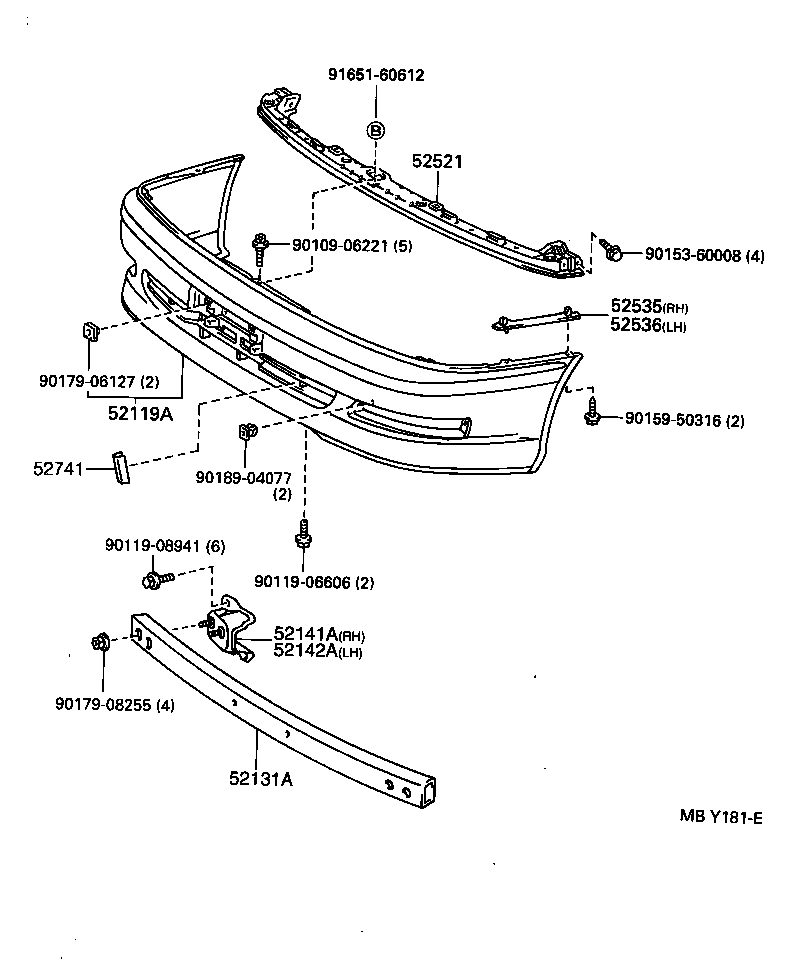

Front Bumper & Bumper Stay
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52111E | Bar, Front Bumper |
| 52119A | Cover, Front Bumper |
| 52131A | Reinforcement, Front Bumper |
| 52141A | Arm, Front Bumper, Upper RH |
| 52142A | Arm, Front Bumper, Upper LH |
| 52521 | Retainer, Front Bumper, Upper Center |
| 52535 | Retainer, Front Bumper Side, RH |
| 52536 | Retainer, Front Bumper Side, LH |
| 52741 | Garnish, Front Bumper Bar, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
