Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01
Instrument Panel & Glove Compartment

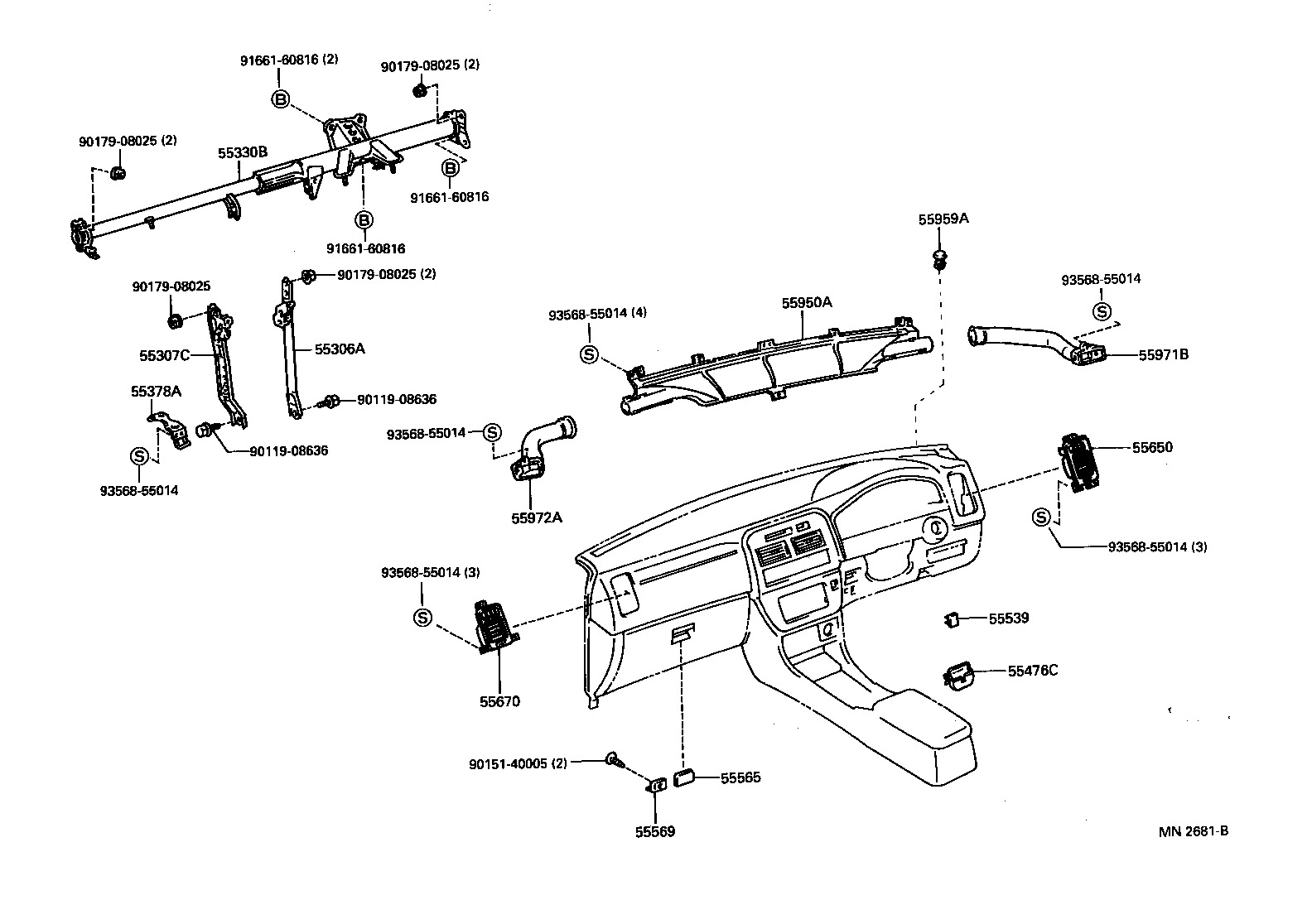

31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55045A | Panel Sub-assy, Instrument Panel Finish, Lower RH |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55307C | Brace Sub-assy, Instrument Panel, NO.2 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55378A | Bracket, Glove Compartment Door Lock Mounting |
| 55401E | Pad Sub-assy, Instrument Panel Safety |
| 55404C | Panel Sub-assy, Instrument Cluster Finish, NO.2 |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55413D | Panel, Instrument Cluster Finish, Center Lower |
| 55432B | Panel, Instrument Panel Finish, Lower |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55437A | Retainer, Instrument Panel Finish Panel, NO.1 |
| 55441 | Box, Instrument Panel |
| 55458A | Cap, Instrument Panel Safety Pad |
| 55476C | Garnish, Instrument Panel Finish Plate |
| 55510 | Door Assy, Glove Compartment |
| 55510A | Cushion(FOR GLOVE COMPARTMENT DOOR) |
| 55539 | Cover, Spare Switch Hole |
| 55565 | Handle, Glove Compartment Door Lock |
| 55568B | Plate, Glove Compartment Door Finish |
| 55569 | Cover, Glove Compartment Door Lock |
| 55574 | Shaft, Glove Compartment Door Hinge |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670 | Register Assy, Instrument Panel, NO.3 |
| 55950A | Nozzle Assy, Defroster |
| 55959A | Cover, Defroster Nozzle Opening, NO.1 |
| 55971B | Duct, Side Defroster Nozzle, NO.1 |
| 55972A | Duct, Side Defroster Nozzle, NO.2 |
| 55981 | Garnish, Defroster Nozzle, NO.1 |
| 73970A | Airbag Assy, Instrument Panel Passenger |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
