Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01
Package Tray Panel & Luggage Compartment Mat

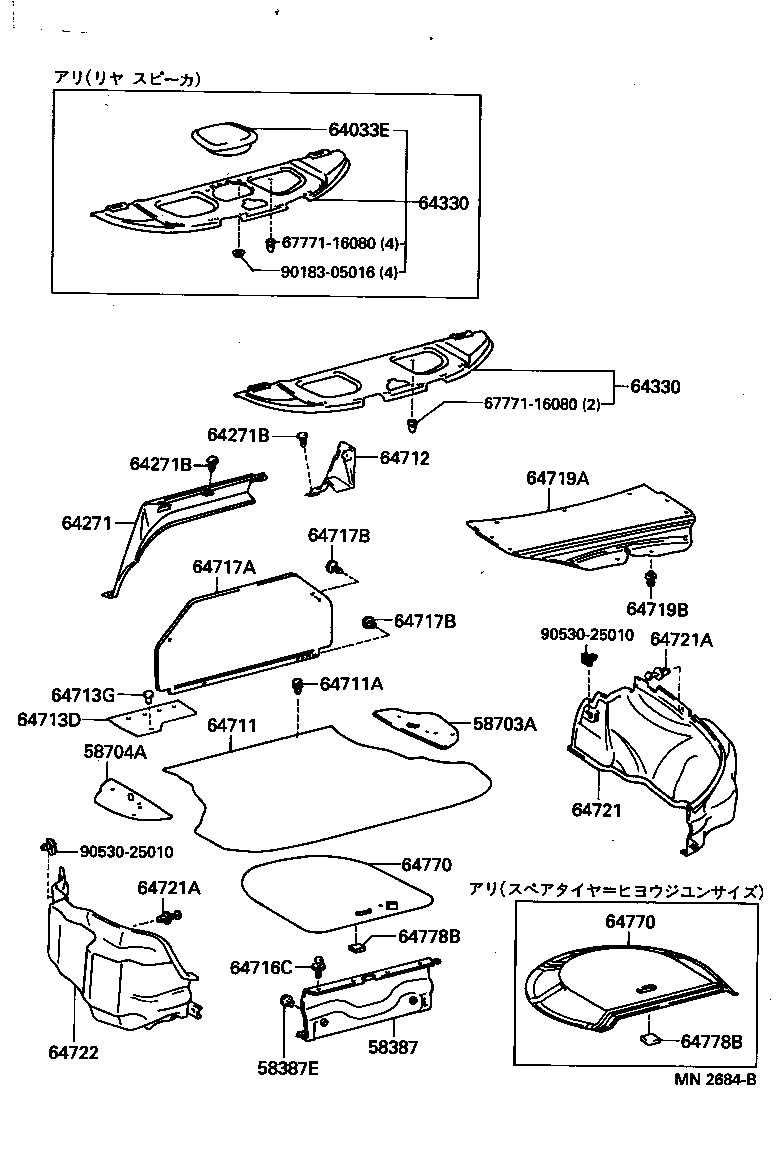

23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64033E | Grille Sub-assy, Rear Speaker |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64330 | Panel Assy, Package Tray Trim |
| 64711 | Mat, Luggage Compartment Floor |
| 64711A | Clip(FOR LUGGAGE COMPARTMENT FLOOR MAT) |
| 64712 | Cover, Luggage Compartment Trim, RH |
| 64713D | Cover, Luggage Compartment Trim, Front LH |
| 64713G | Clip(FOR DECK SIDE TRIM COVER) |
| 64716C | Clip(FOR LUGGAGE COMPARTMENT TRIM REAR COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64770 | Cover Assy, Spare Wheel |
| 64778B | Protector, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
