Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

14 part groups · 2 illustrations

Illustrations

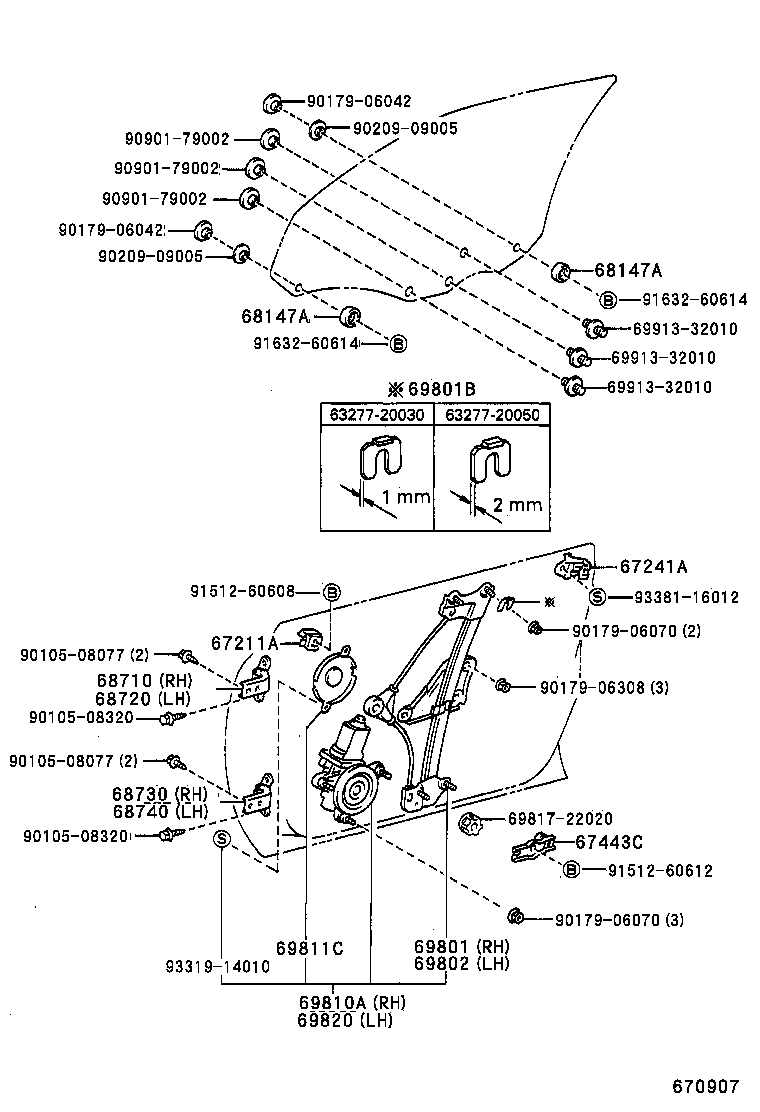

Figure 670858 670858 1994-06 → — Figure 670907 670907 1994-06 → —

Part groups

PNCDescription
67211A Stop, Front Door Window, Upper
67241A Stabilizer, Door Glass, Inner
67443C Plate, Front Door Window Guide, Lower
68147A Stop, Front Door Glass, Upper
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69801 Regulator Sub-assy, Front Door Window, RH
69801B Shim, Window Regulator
69802 Regulator Sub-assy, Front Door Window, LH
69810A Regulator Assy, Front Door Window, RH
69811C Plate, Front Door Power Window Regulator Base
69820 Regulator Assy, Front Door Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
