Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Door Window Regulator & Hinge

17 part groups · 2 illustrations

Illustrations

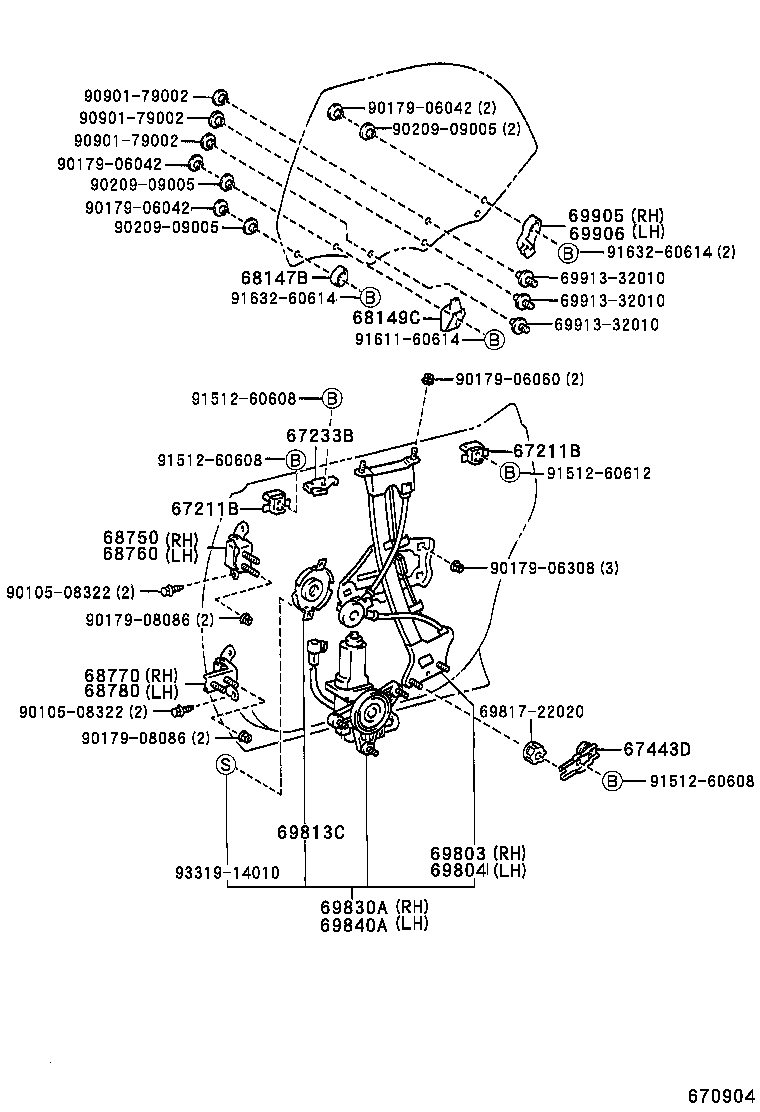

Figure MBY264A MBY264A 1994-06 → — Figure 670904 670904 1994-06 → —

Part groups

PNCDescription
67211B Stop, Rear Door Window, Upper
67233B Support, Rear Door Trim
67443D Plate, Rear Door Window Guide, Lower
68147B Stop, Rear Door Glass, Upper
68149C Stabilizer, Rear Door Glass Male
68750 Hinge Assy, Rear Door, Upper RH
68760 Hinge Assy, Rear Door, Upper LH
68770 Hinge Assy, Rear Door, Lower RH
68780 Hinge Assy, Rear Door, Lower LH
69803 Regulator Sub-assy, Rear Door Window, RH
69804 Regulator Sub-assy, Rear Door Window, LH
69813C Plate, Rear Door Power Window Regulator Base
69830A Regulator Assy, Rear Door Window, RH
69840A Regulator Assy, Rear Door Window, LH
69888 Cushion, Window Regulator Door Glass Bracket, NO.2
69905 Bracket Sub-assy, Rear Door Glass, RH
69906 Bracket Sub-assy, Rear Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
