Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

10 part groups · 2 illustrations

Illustrations

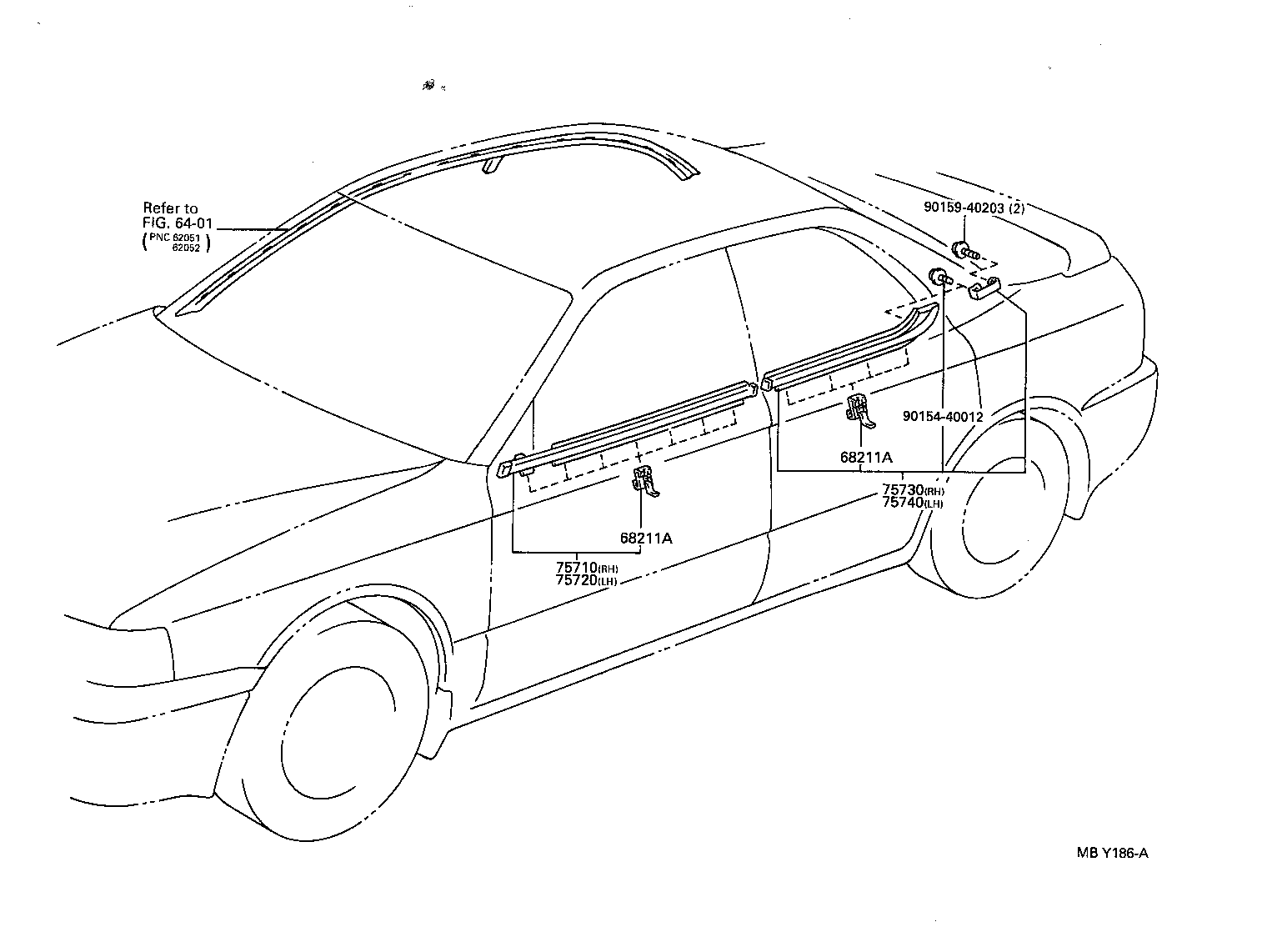

Figure 752724 752724 1994-06 → — Figure MBY186A MBY186A 1994-06 → —

Part groups

PNCDescription
68211A Clip, Door Belt Moulding
75707 Moulding Sub-assy, Rear Door Window Frame, RH
75708 Moulding Sub-assy, Rear Door Window Frame, LH
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75740 Moulding Assy, Rear Door Belt, LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75791B Clip, Belt Moulding Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
