Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

16 part groups · 2 illustrations

Illustrations

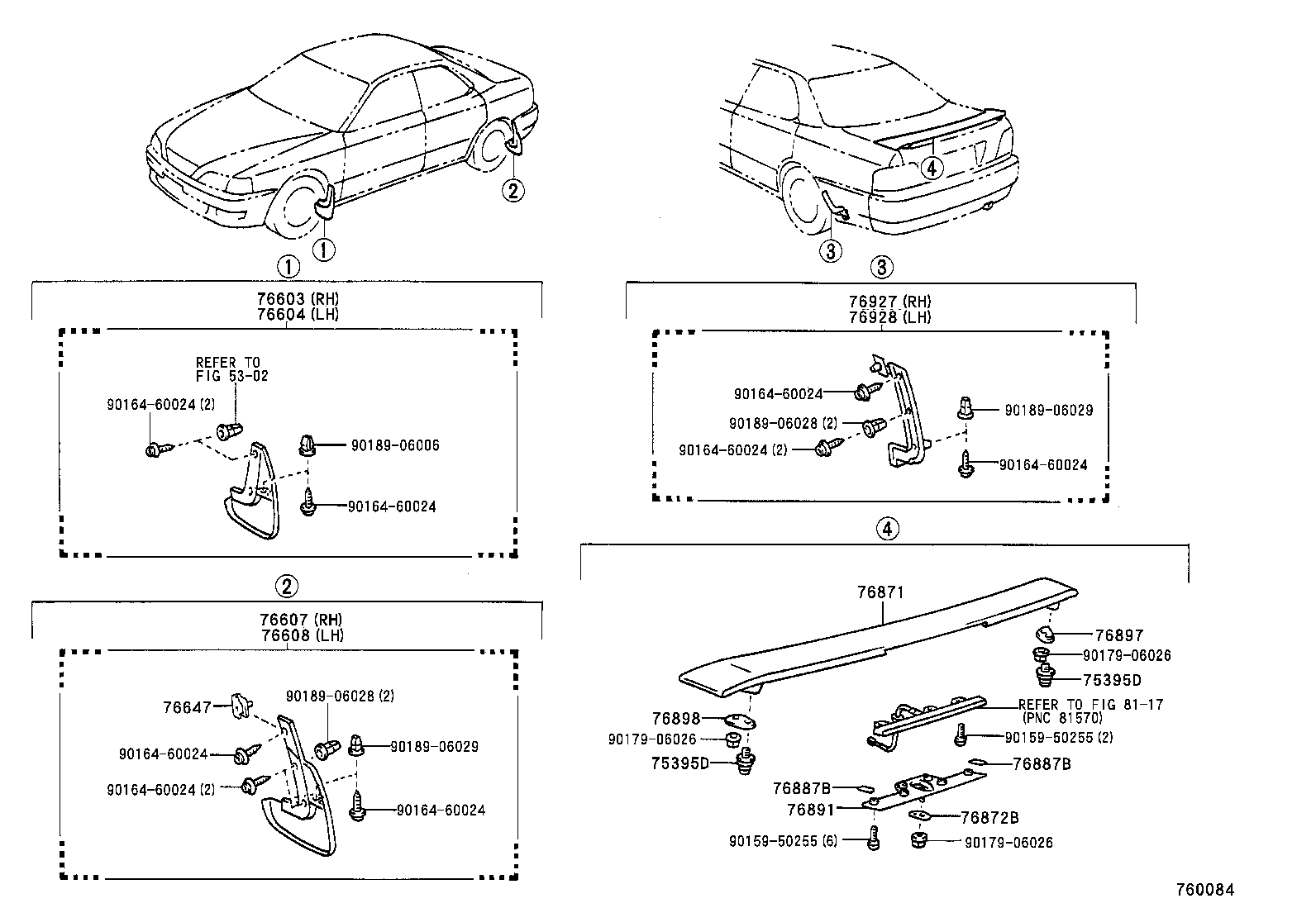

Figure 760083 760083 1994-06 → — Figure 760084 760084 1994-06 → —

Part groups

PNCDescription
75395D Clip, Outside Moulding, NO.1
76603 Mudguard Sub-assy, Front Fender, RH
76604 Mudguard Sub-assy, Front Fender, LH
76607 Mudguard Sub-assy, Quarter Panel, Rear RH
76608 Mudguard Sub-assy, Quarter Panel, Rear LH
76647 Retainer, Quarter Panel Rear Mudguard
76871 Spoiler, Rear
76872B Protector, Rear Spoiler, Center
76881 Protector, Rear Spoiler Side, NO.1 RH
76882 Protector, Rear Spoiler Side, NO.1 LH
76887B Protector, Rear Spoiler Side, NO.2
76891 Spoiler, Rear NO.1
76897 Protector, Rear Spoiler, Side RH
76898 Protector, Rear Spoiler, Side LH
76927 Protecter, Rear Mudguard, RH
76928 Protecter, Rear Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
