Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

13 part groups · 3 illustrations

Illustrations

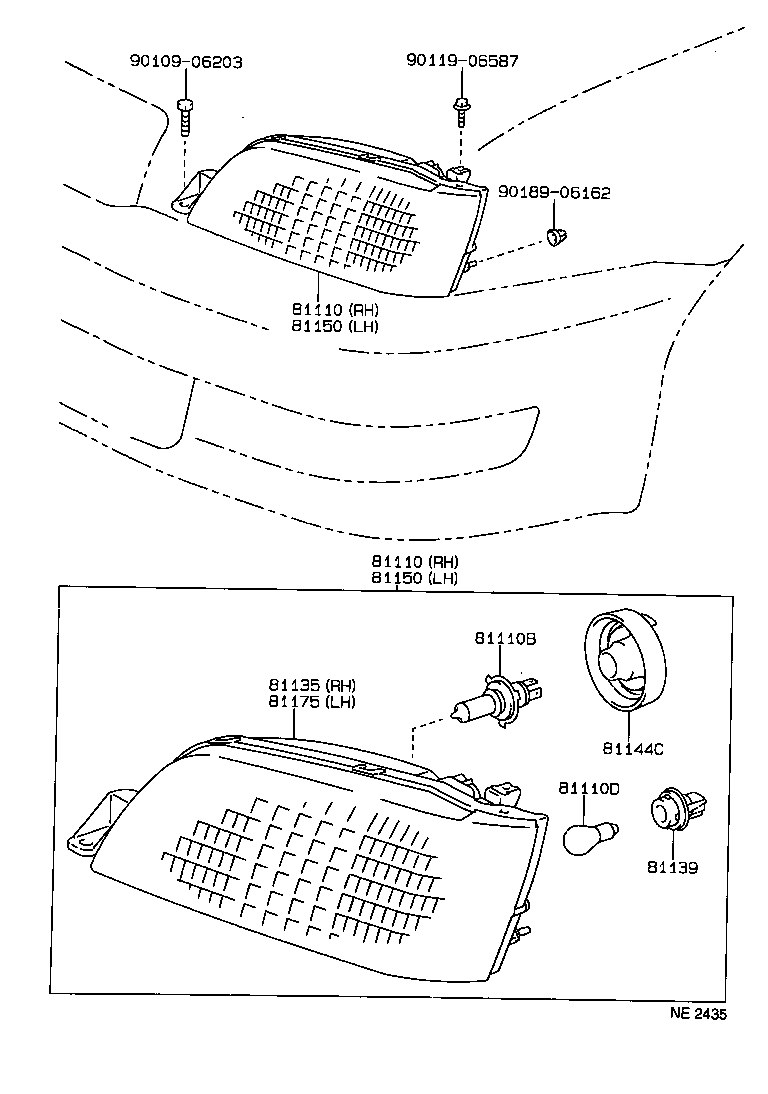

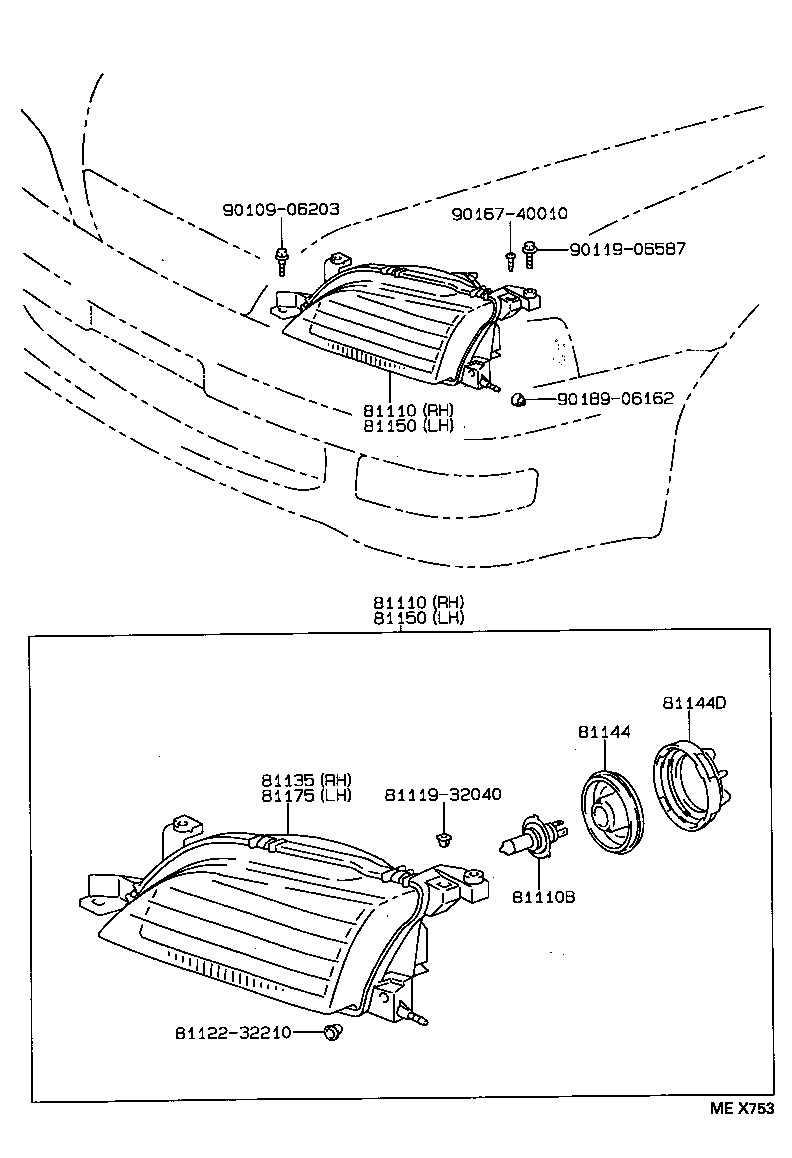

Figure MEX752 MEX752 1994-06 → 1996-05 Figure NE2435 NE2435 1996-05 → — Figure MEX753 MEX753 1994-06 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110D Bulb(FOR HEADLAMP, NO.2)
81135 Unit Assy, Headlamp, RH
81139 Cover, Headlamp Socket
81144 Cover, Headlamp, NO.1
81144C Cover, Headlamp Socket
81144D Cap, Headlamp Locking
81145 Cover, Headlamp, NO.2
81150 Headlamp Assy, LH
81175 Unit Assy, Headlamp, LH
81510C Bulb (FOR FRONT TURN SIGNAL LAMP)
81515B Socket, Front Turn Signal Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
