Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01
Meter
22 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

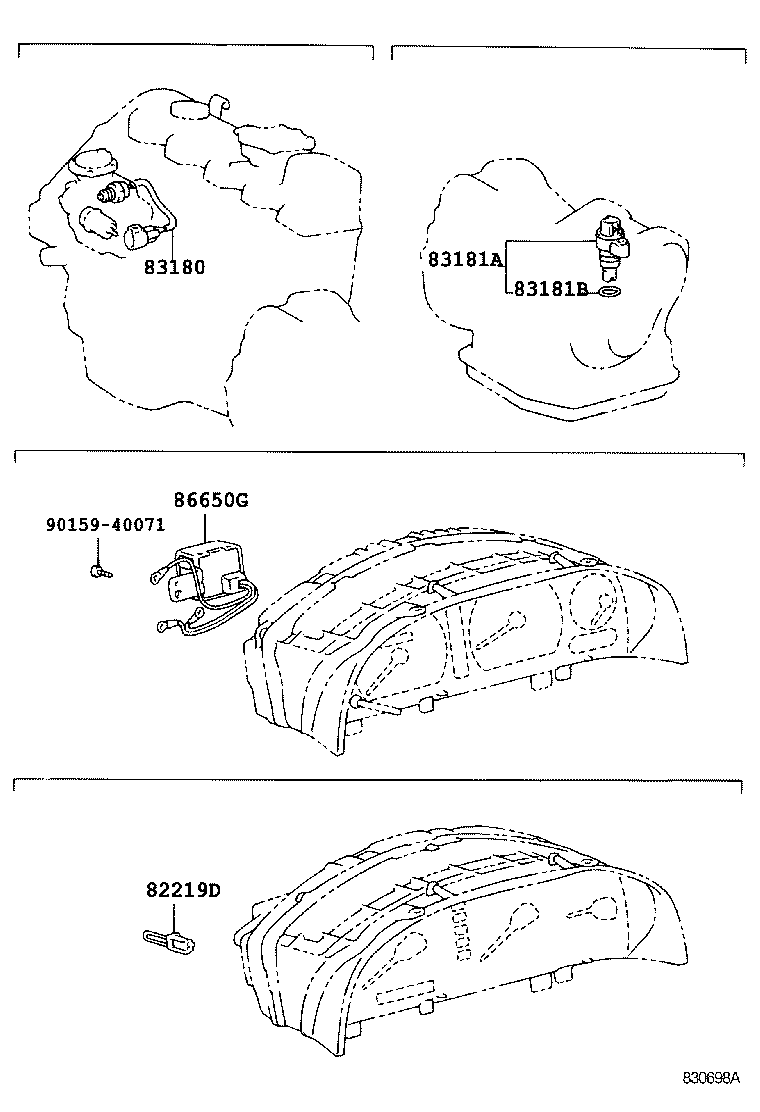

| 82219D | Wire, Sensor |

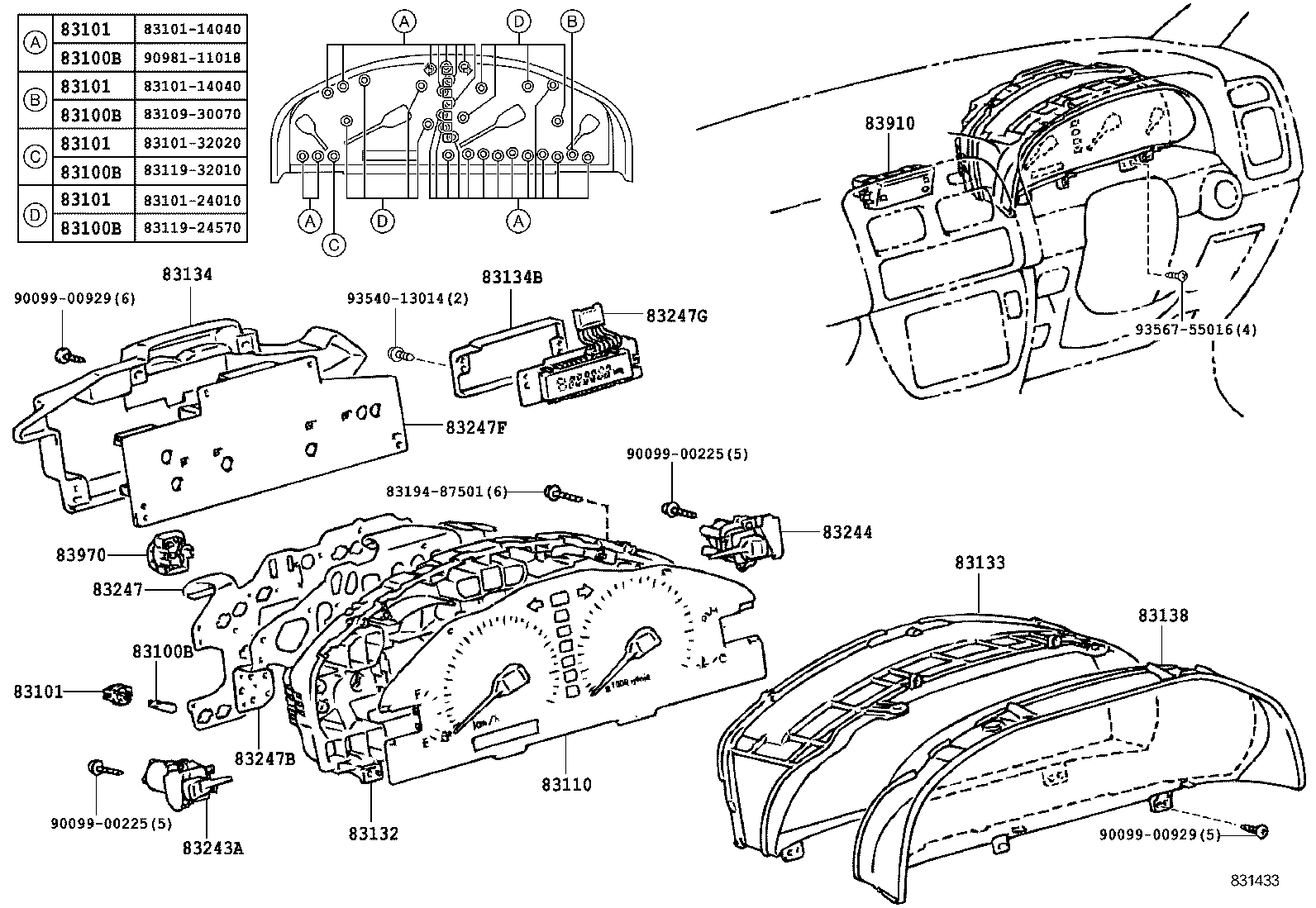

| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83134B | Cover, Combination Meter, NO.2 |
| 83138 | Glass, Speedometer |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83242 | Tachometer Assy, Engine |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83247B | Plate, Meter Circuit, NO.2 |
| 83247F | Plate, Meter Circuit, NO.1 (FOR COMPUTER) |
| 83247G | Plate, Meter Circuit, NO.2 (FOR COMPUTER) |
| 83910 | Clock Assy |
| 83970 | Buzzer Assy, Reverse Warning |
| 86650G | Buzzer Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
