Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01
Overdrive & Electronic Controlled Transmission

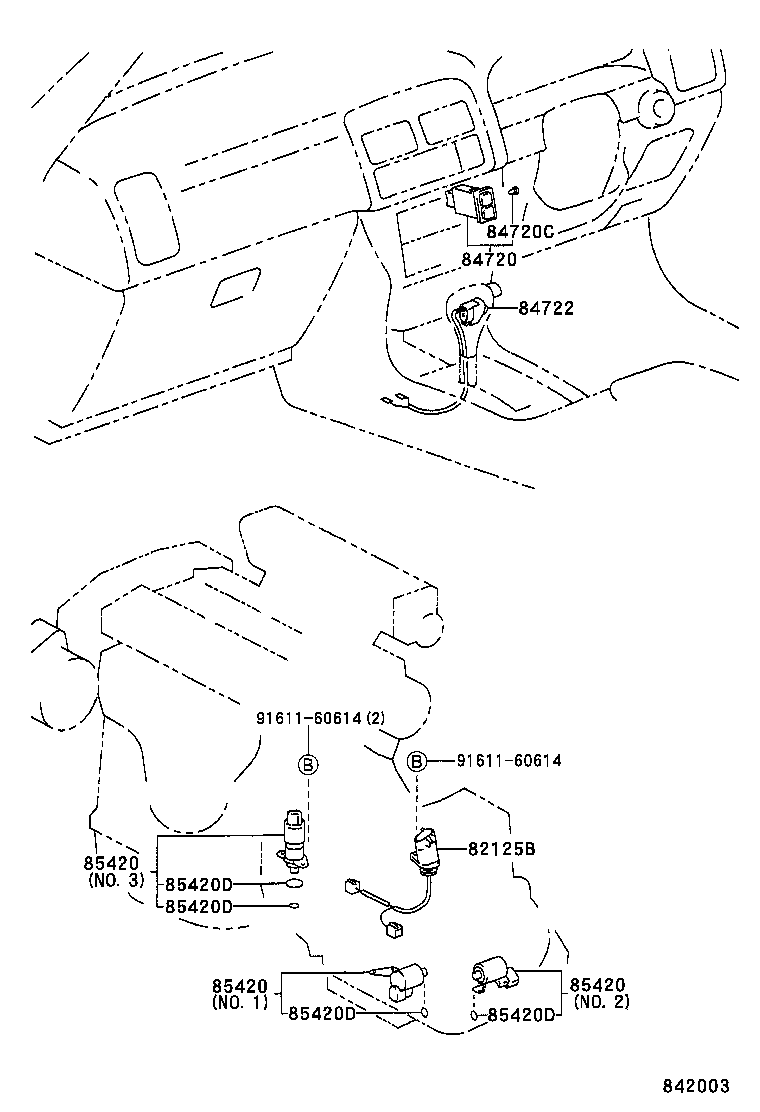

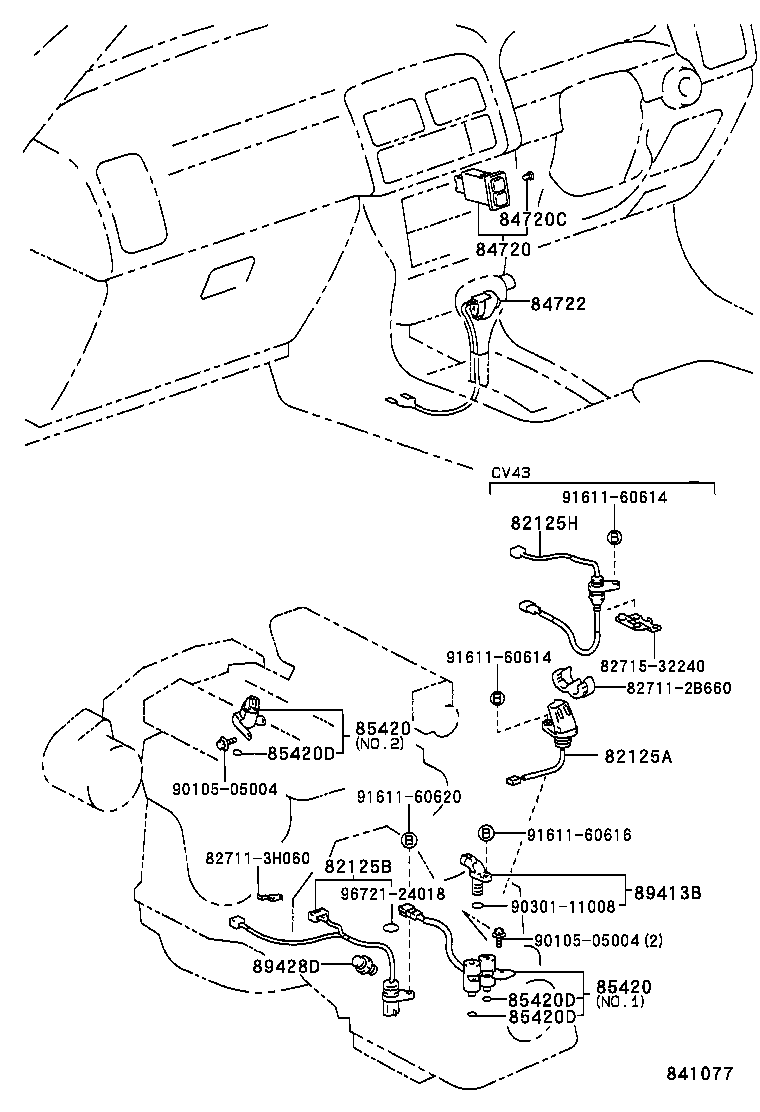

11 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82125B | Wire, Transmission |
| 82125H | Wire, Transmission(FOR 4WD CONTROL) |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 84722 | Switch, Transmission Control |
| 85420 | Solenoid Assy, Transmission |
| 85420B | Solenoid Assy, Transmission |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 89413B | Sensor, Transmission Revolution |
| 89428D | Switch, Temperature, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
