Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

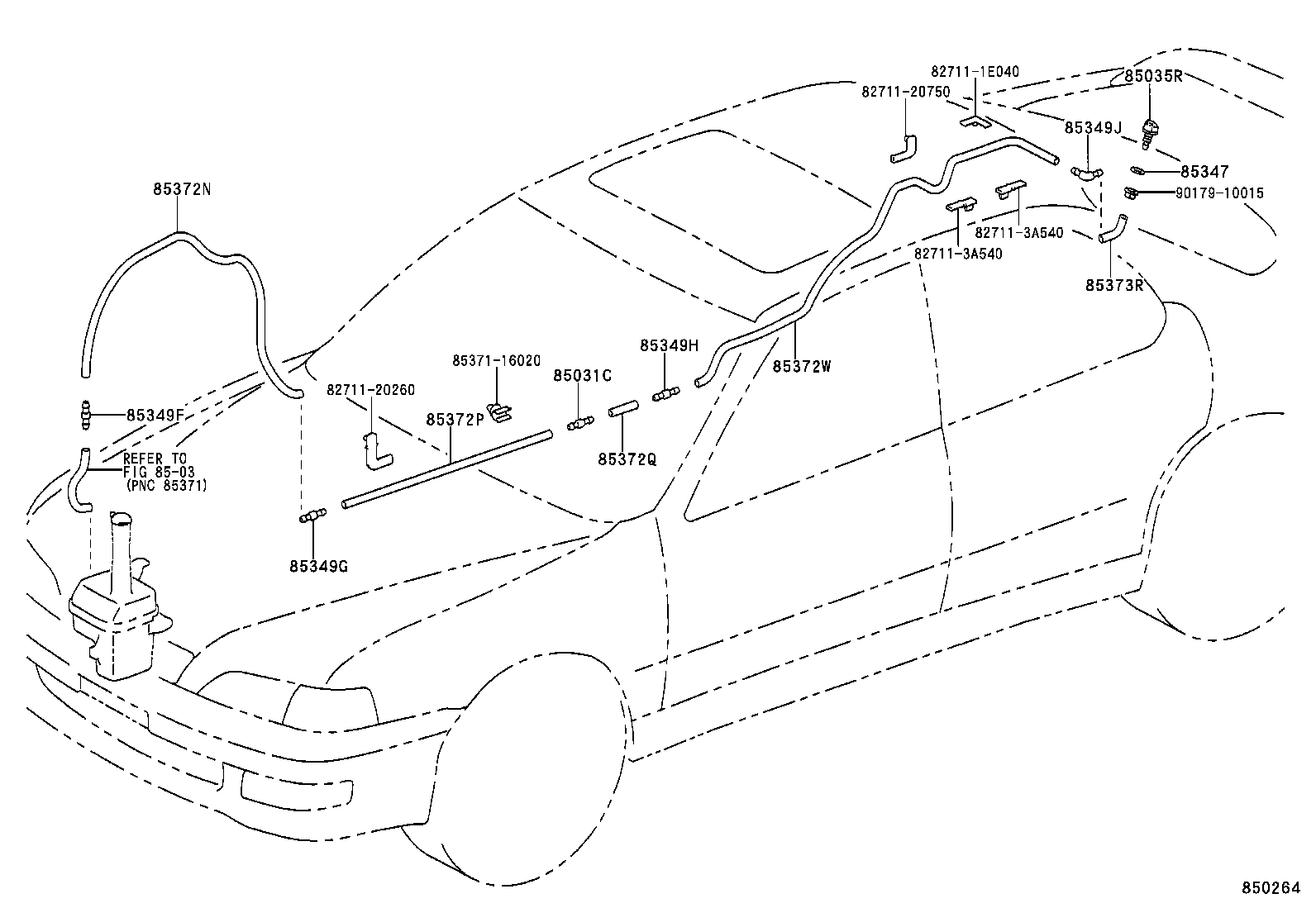

Rear Washer
12 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 85031C | Valve Sub-assy, Washer |
| 85035R | Nozzle Sub-assy, Rear Washer |
| 85347 | Packing, Rear Washer |
| 85349F | Joint, Rear Washer Hose, NO.1 |
| 85349G | Joint, Rear Washer Hose, NO.2 |
| 85349H | Joint, Rear Washer Hose, NO.3 |
| 85349J | Joint, Rear Washer Hose, NO.4 |
| 85372N | Hose, Rear Washer (FROM JOINT TO JOINT), NO.1 |
| 85372P | Hose, Rear Washer (FROM JOINT TO JOINT), NO.2 |
| 85372Q | Hose, Rear Washer (FROM JOINT TO JOINT), NO.3 |
| 85372W | Hose, Rear Washer (FROM JOINT TO JOINT), NO.5 |
| 85373R | Hose, Rear Washer (FROM JOINT TO NOZZLE) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
