Toyota Camry/Vista

1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan

Discontinued model Data version 1999-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

11 part groups · 2 illustrations

Illustrations

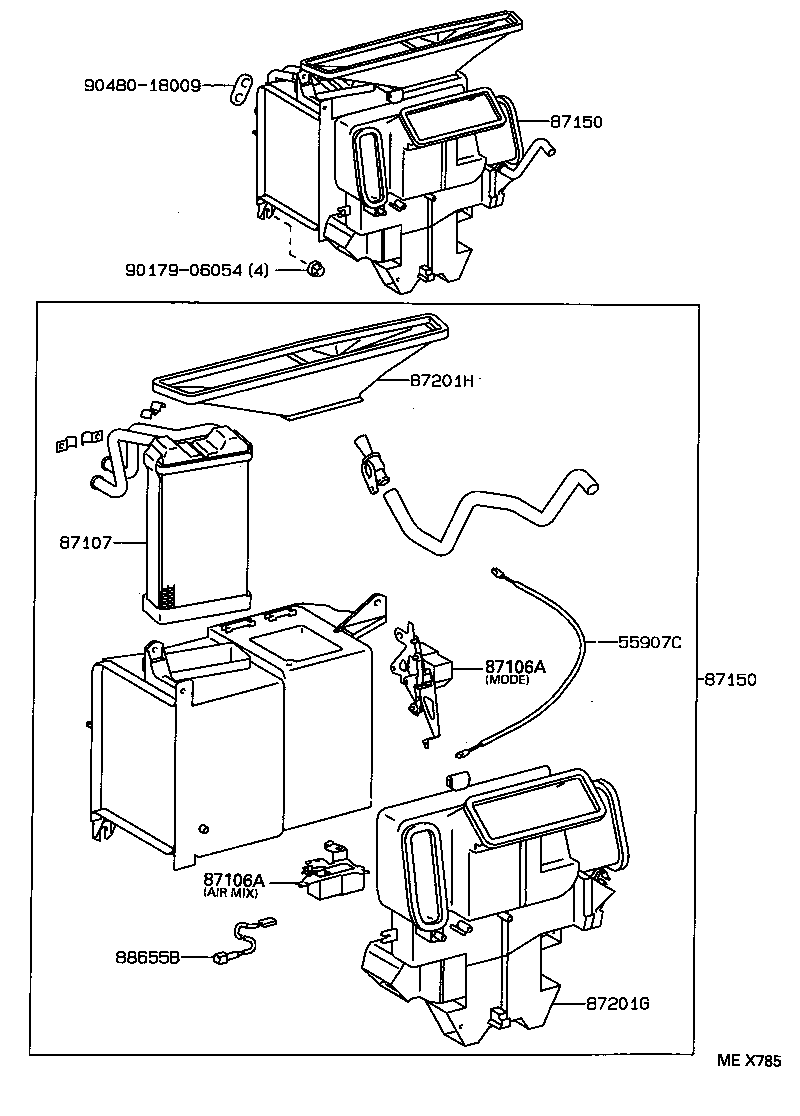

Figure 871382A 871382A 1994-06 → — Figure MEX785 MEX785 1994-06 → —

Part groups

PNCDescription
55907C Cable Sub-assy, Water Valve Control
87103 Motor Sub-assy, Heater Blower, W/Fan
87105 Fan Sub-assy, Heater Blower
87106A Servo Sub-assy, Damper
87106C Servo Sub-assy, Damper(FOR BLOWER)
87107 Unit Sub-assy, Heater Radiator
87130 Blower Assy, Heater, Front
87150 Radiator Assy, Heater
87201G Duct Sub-assy, Air
87201H Duct Sub-assy, Air
88655B Switch, Water Temperature
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
