Toyota Camry/Vista
1994-06 → 1998-06 · chassis SV4#,CV4# · catalogue 281160 · Japan
Discontinued model
Data version 1999-01

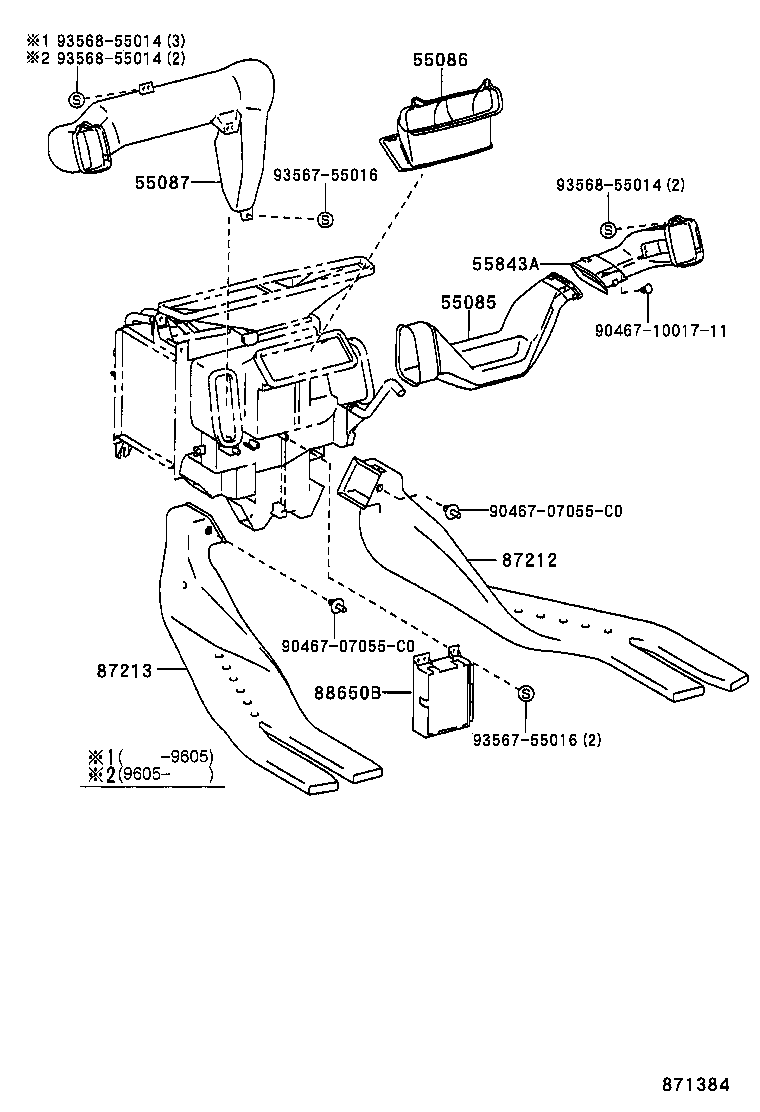

Heating & Air Conditioning - Control & Air Duct
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 55085 | Duct Sub-assy, Heater TO Register, NO.2 |
| 55086 | Duct Sub-assy, Heater TO Register, NO.3 |
| 55087 | Duct Sub-assy, Heater TO Register, NO.4 |
| 55843A | Duct, Heater TO Register, NO.1 |
| 55900 | Control Assy, Air Conditioner |
| 55900B | Bulb, Air Conditioner Control |
| 55905A | Knob, Heater Control |
| 87212 | Duct, Air, Rear NO.1 |
| 87213 | Duct, Air, Rear NO.2 |

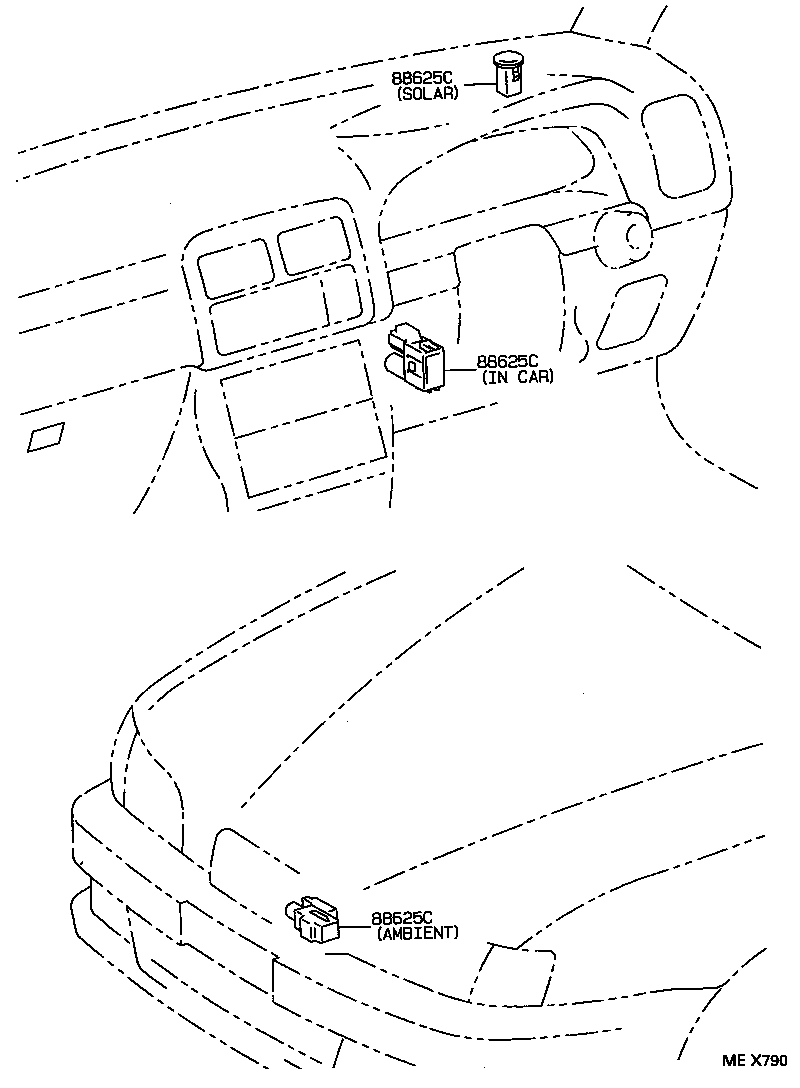

| 88625C | Thermistor, Cooler |
| 88650B | Amplifier Assy, Airconditioner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
