Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 10 illustrations

Illustrations

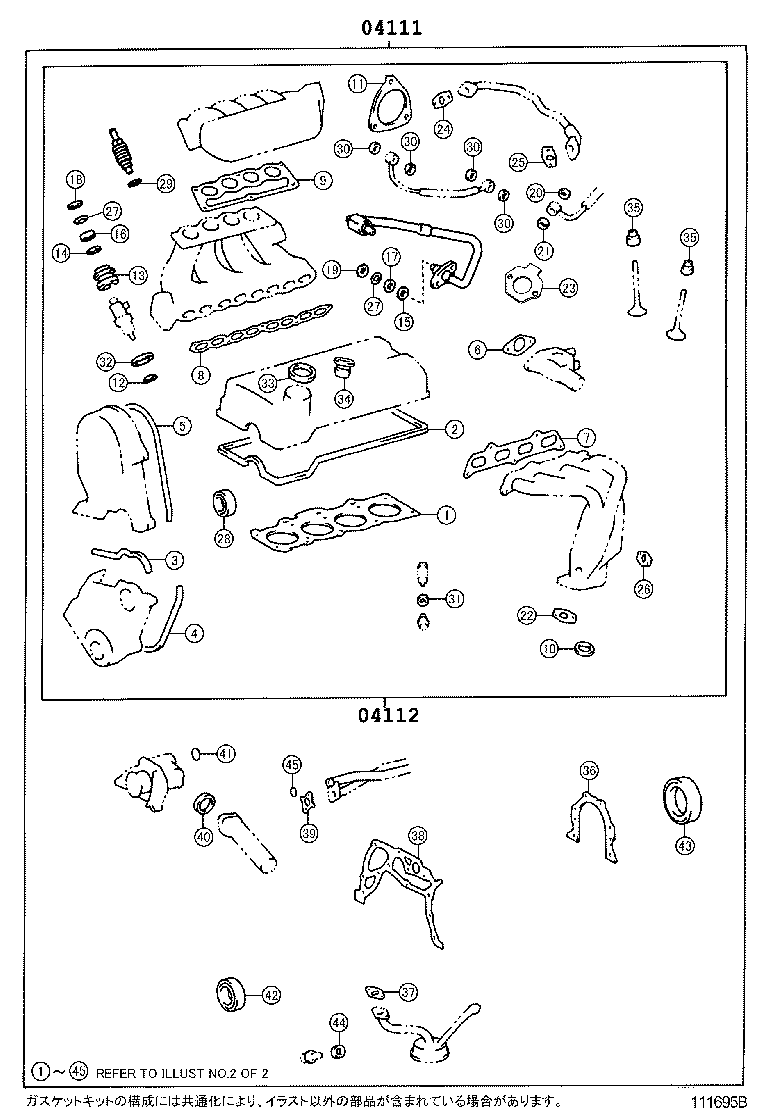

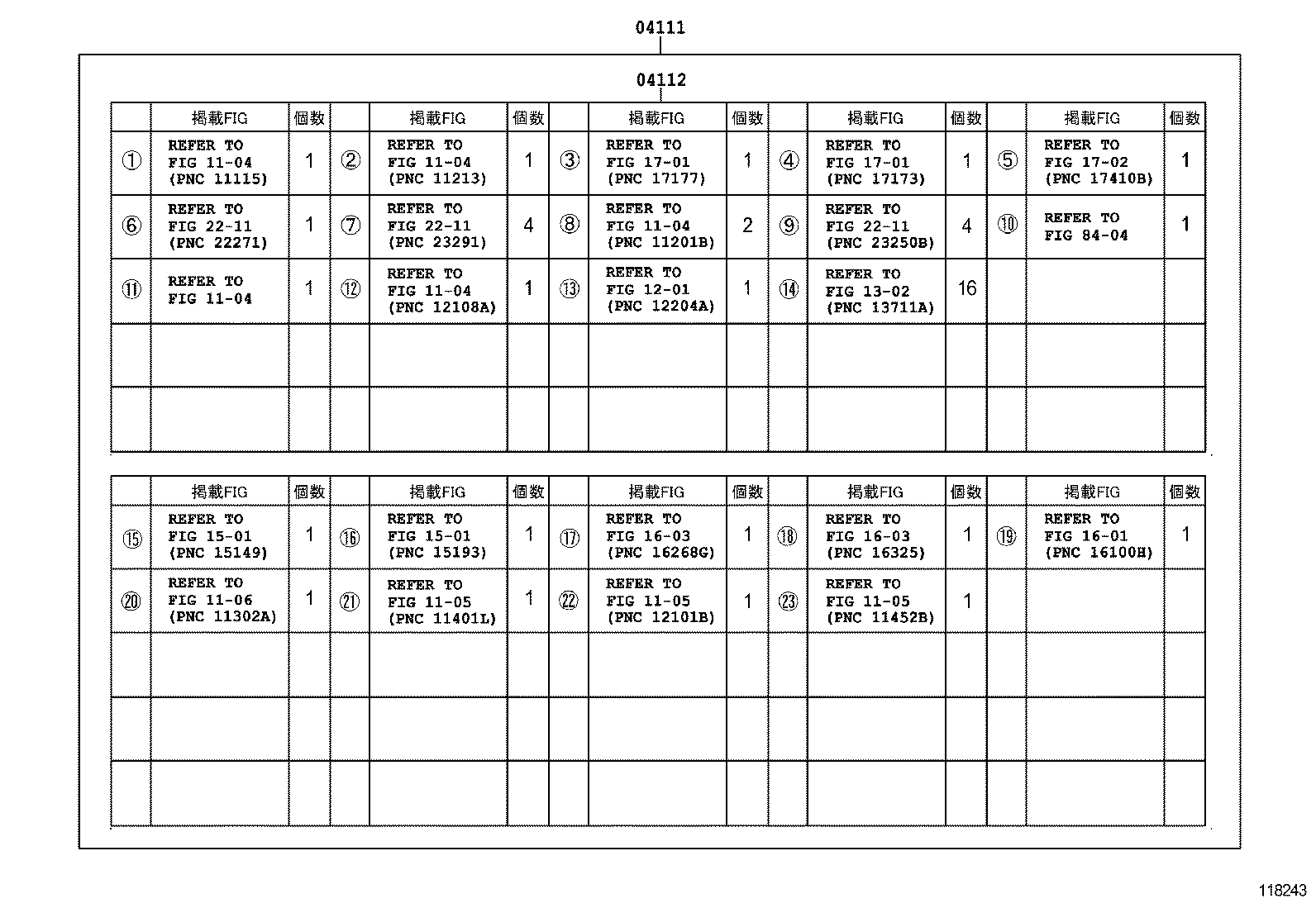

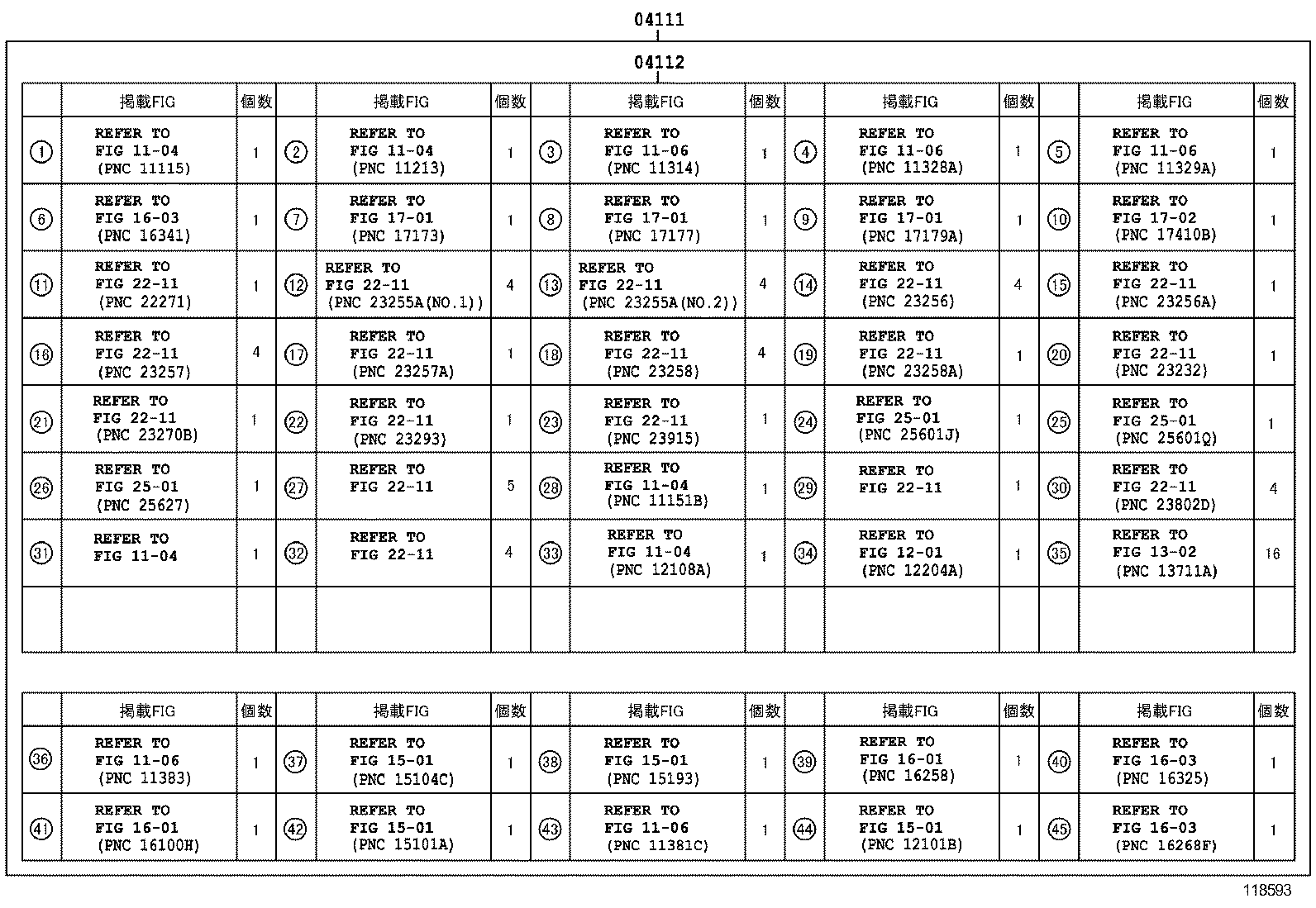

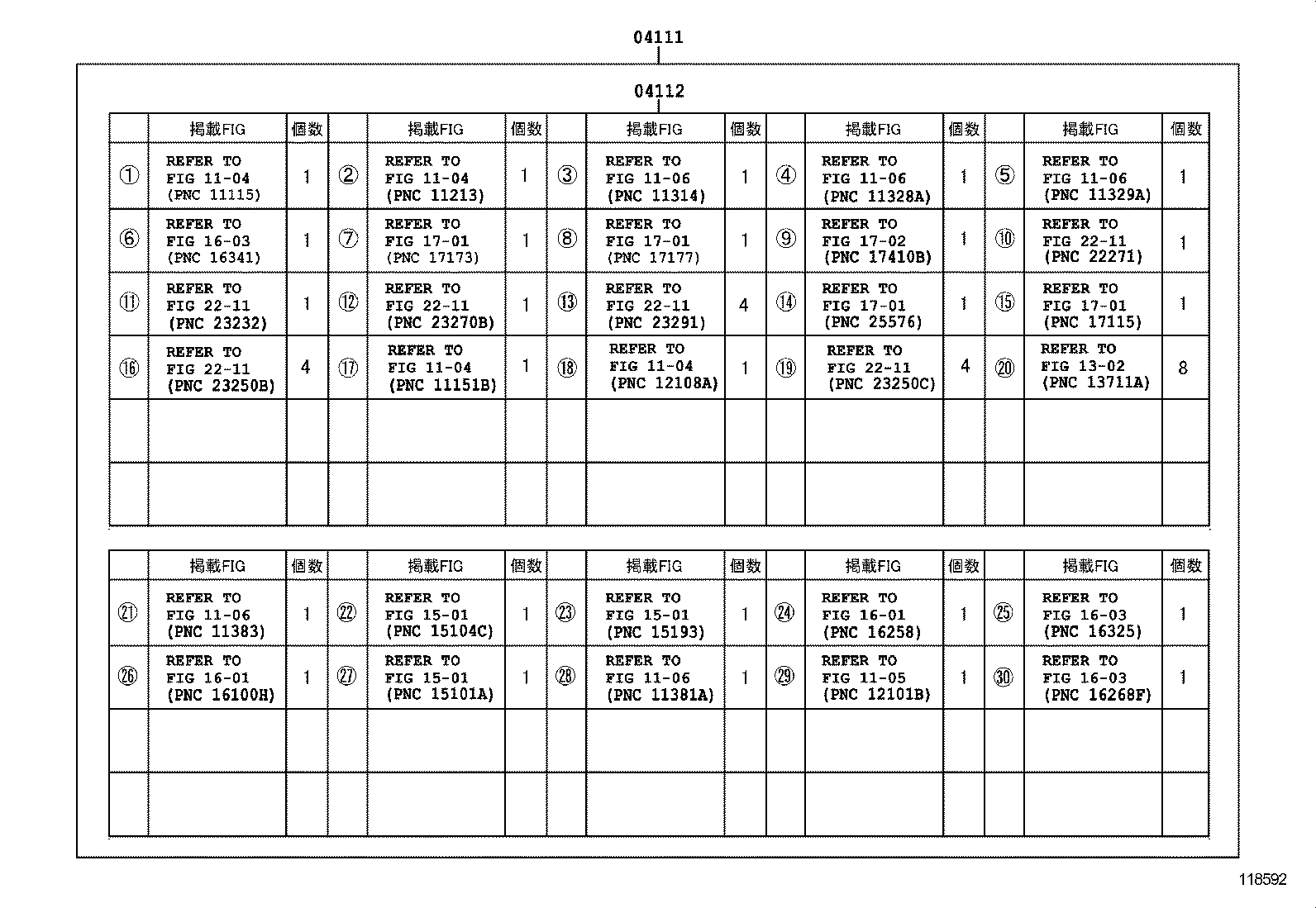

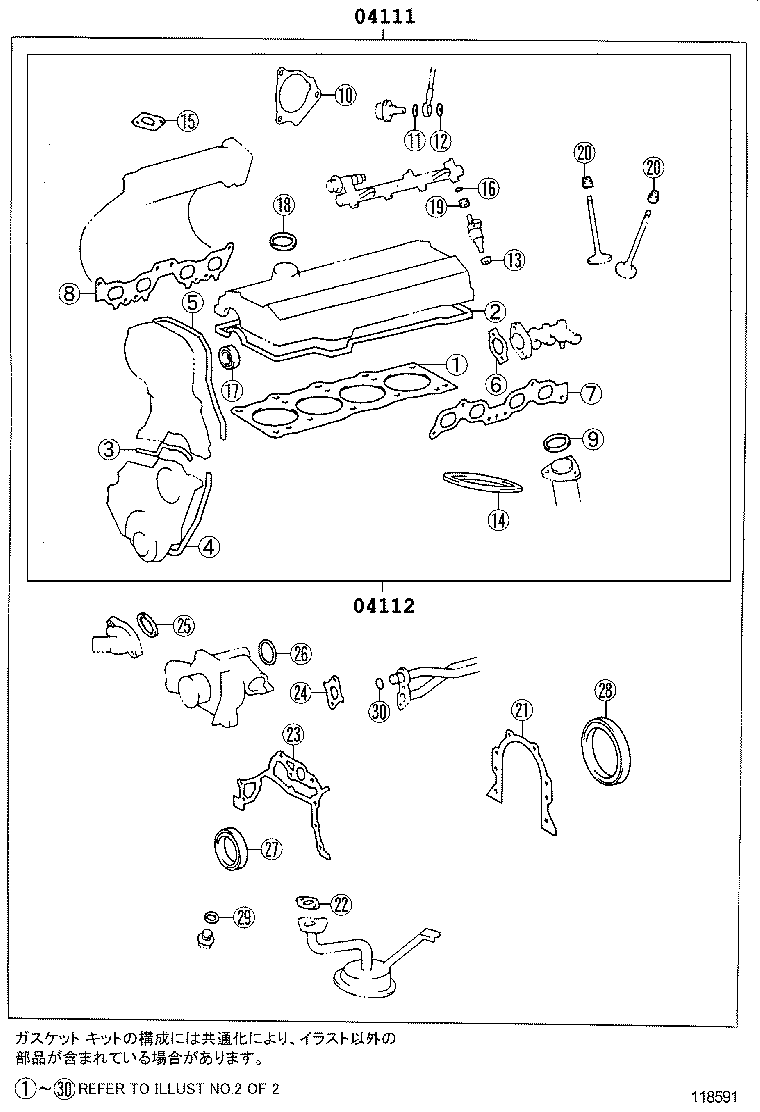

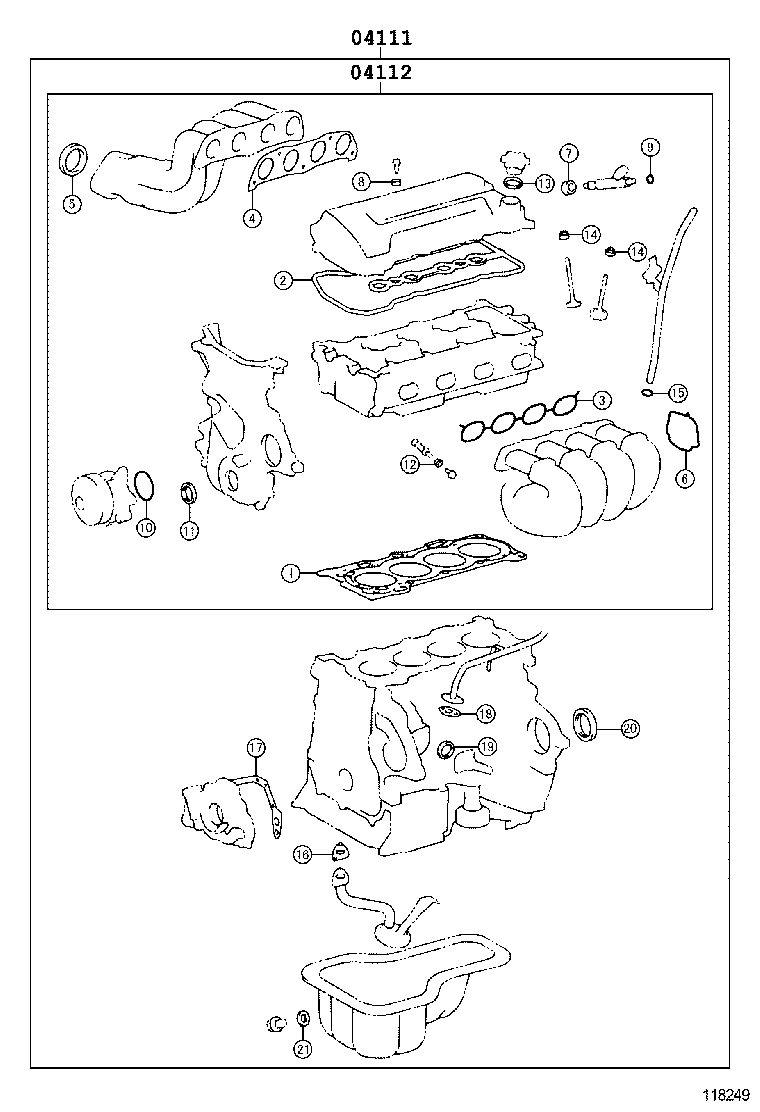

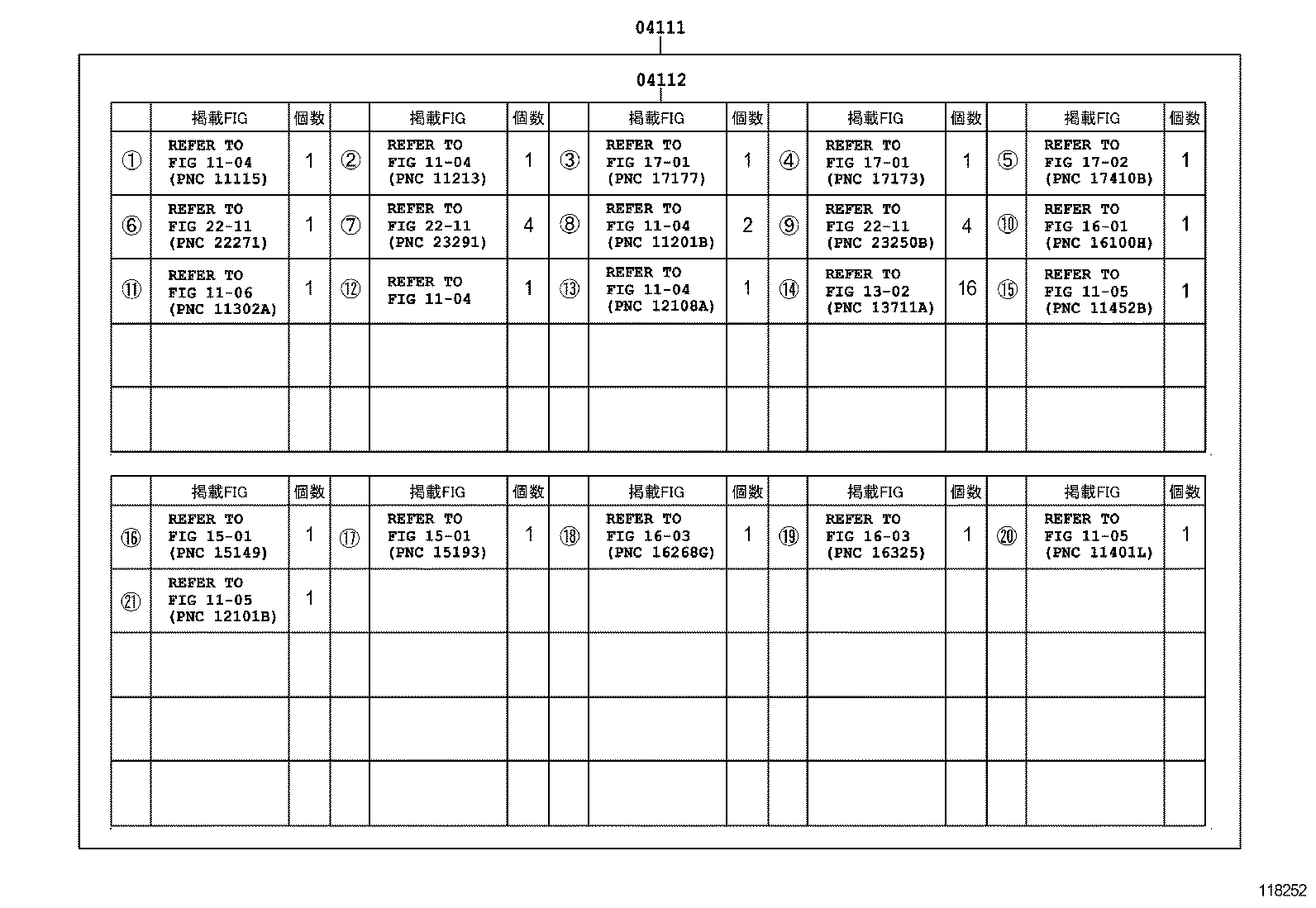

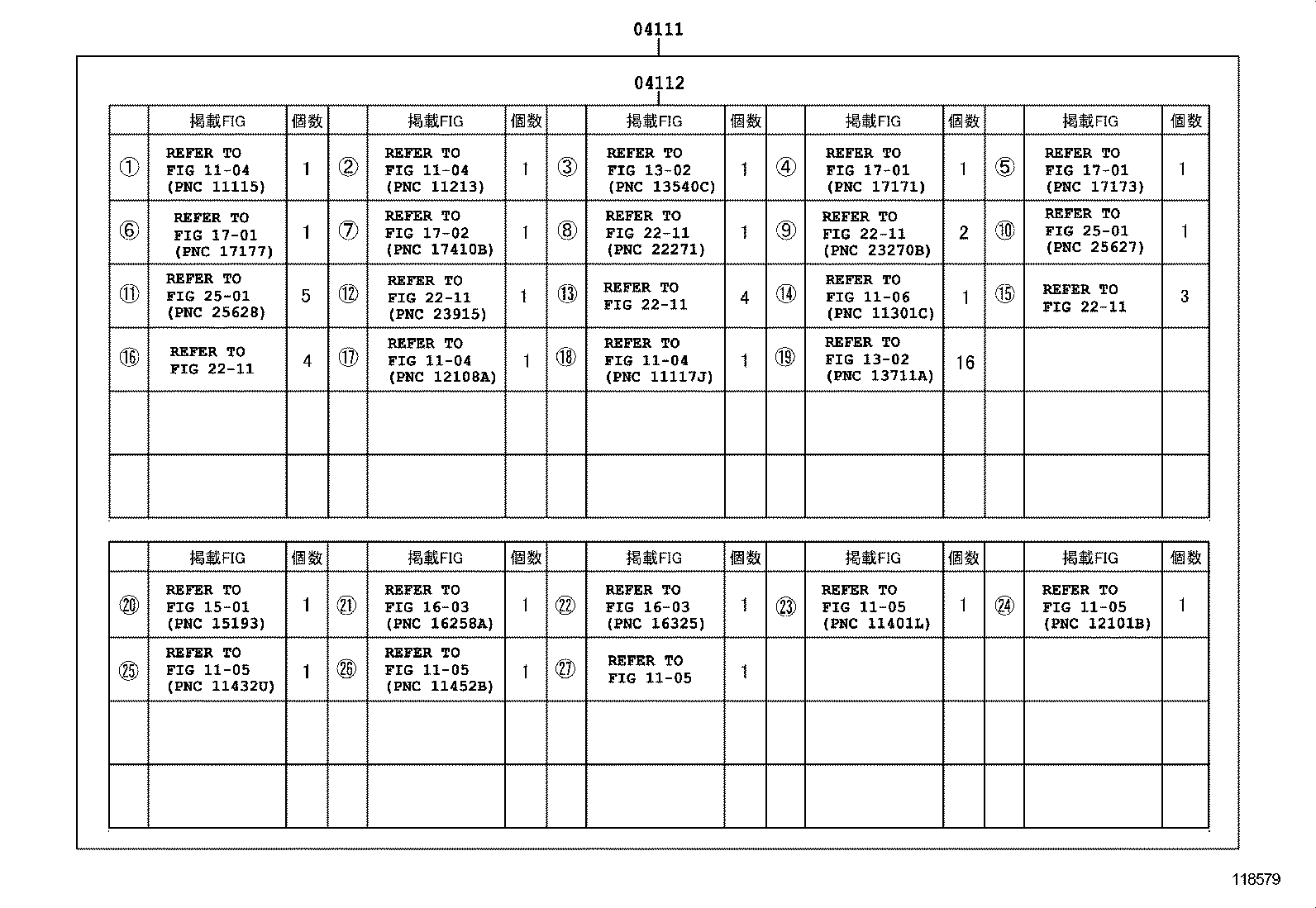

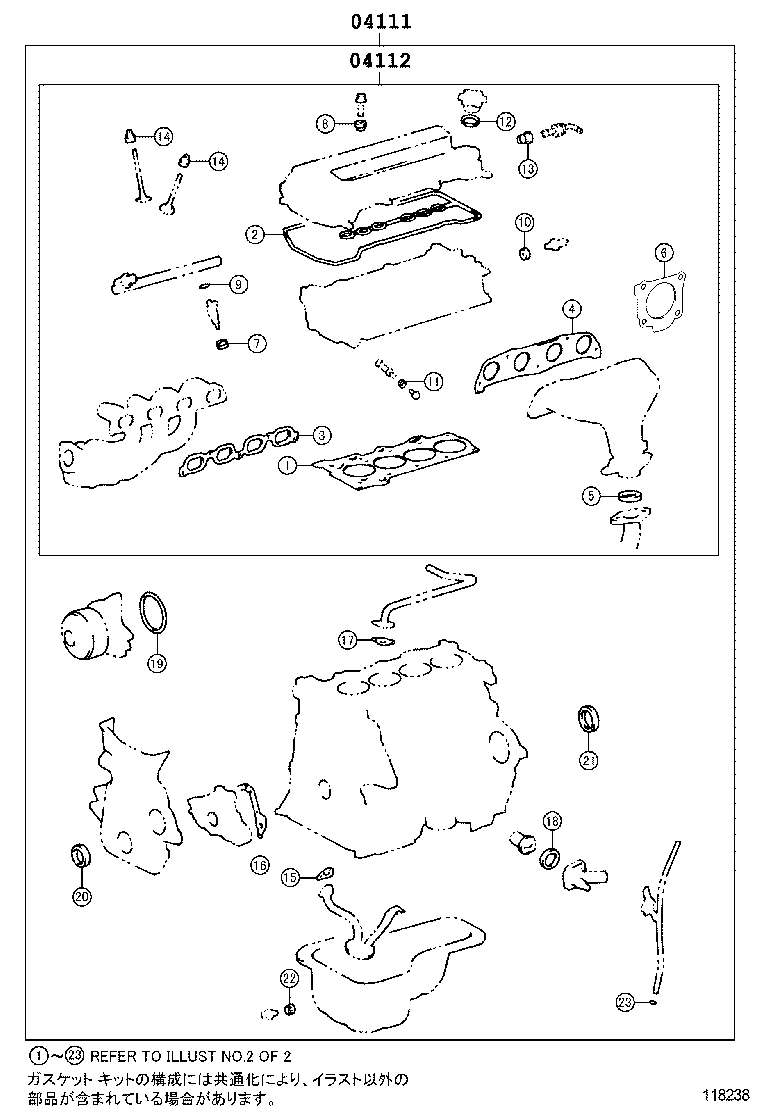

Figure 118578 118578 2001-08 → — Figure 118579 118579 2001-08 → — Figure 118591 118591 1998-06 → — Figure 118592 118592 1998-06 → — Figure 111695B 111695B 1998-06 → 2001-08 Figure 118593 118593 1998-06 → 2001-08 Figure 118238 118238 1998-06 → 2000-04 Figure 118243 118243 1998-06 → 2000-04 Figure 118249 118249 2000-04 → 2003-08 Figure 118252 118252 2000-04 → 2003-08

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
