Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01

Cylinder Head

43 part groups · 5 illustrations

PNC	Description

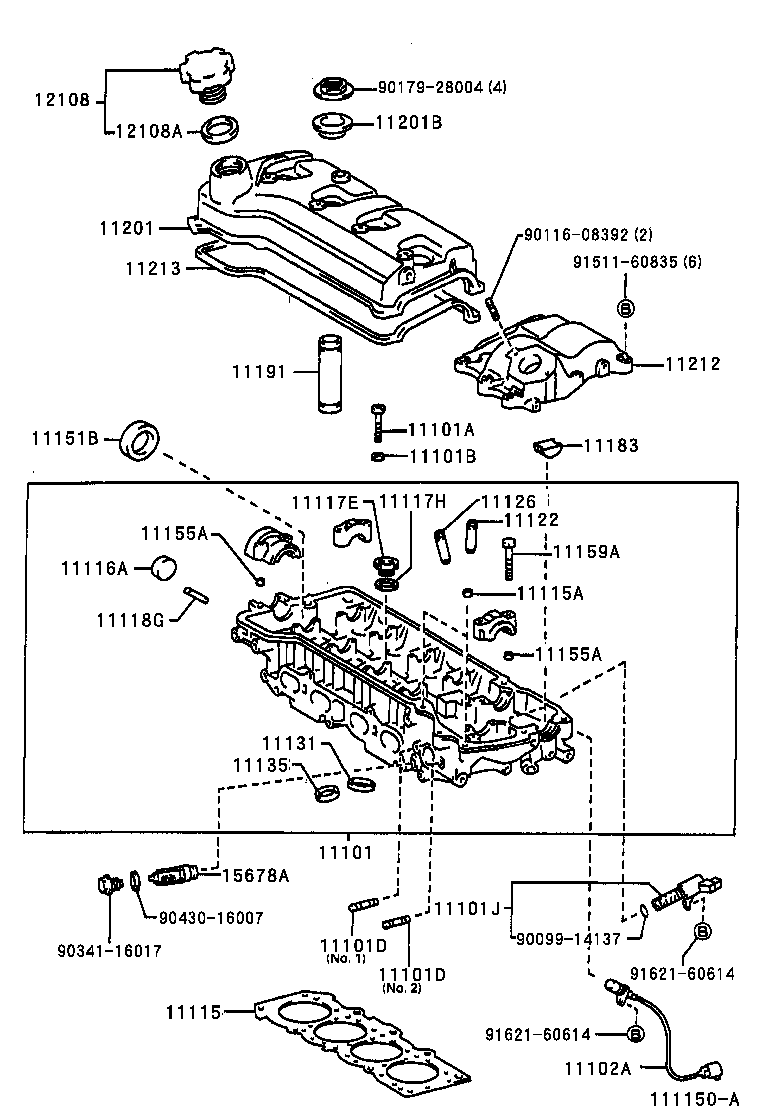

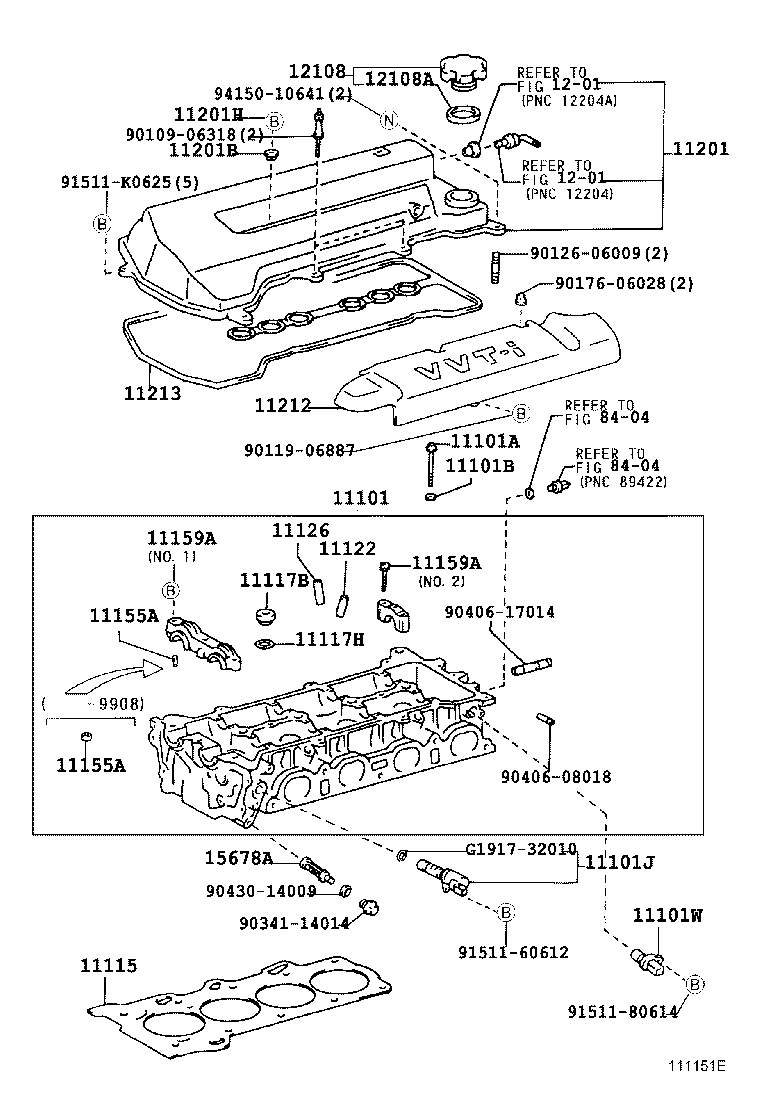

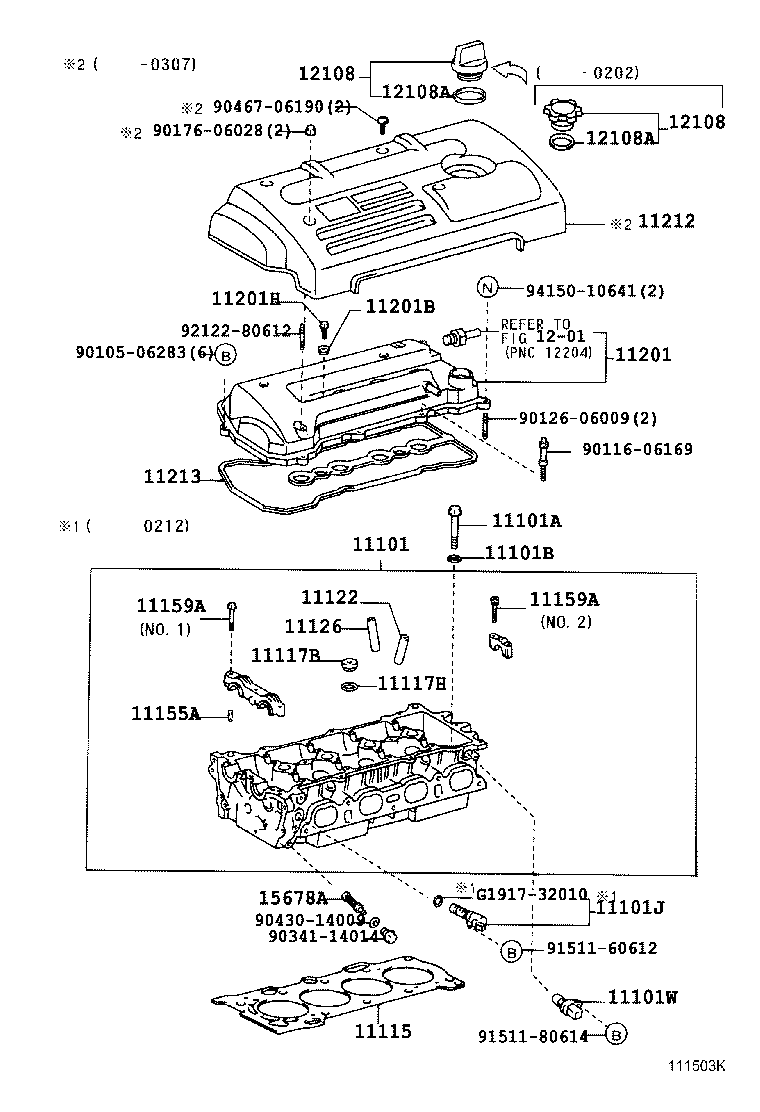

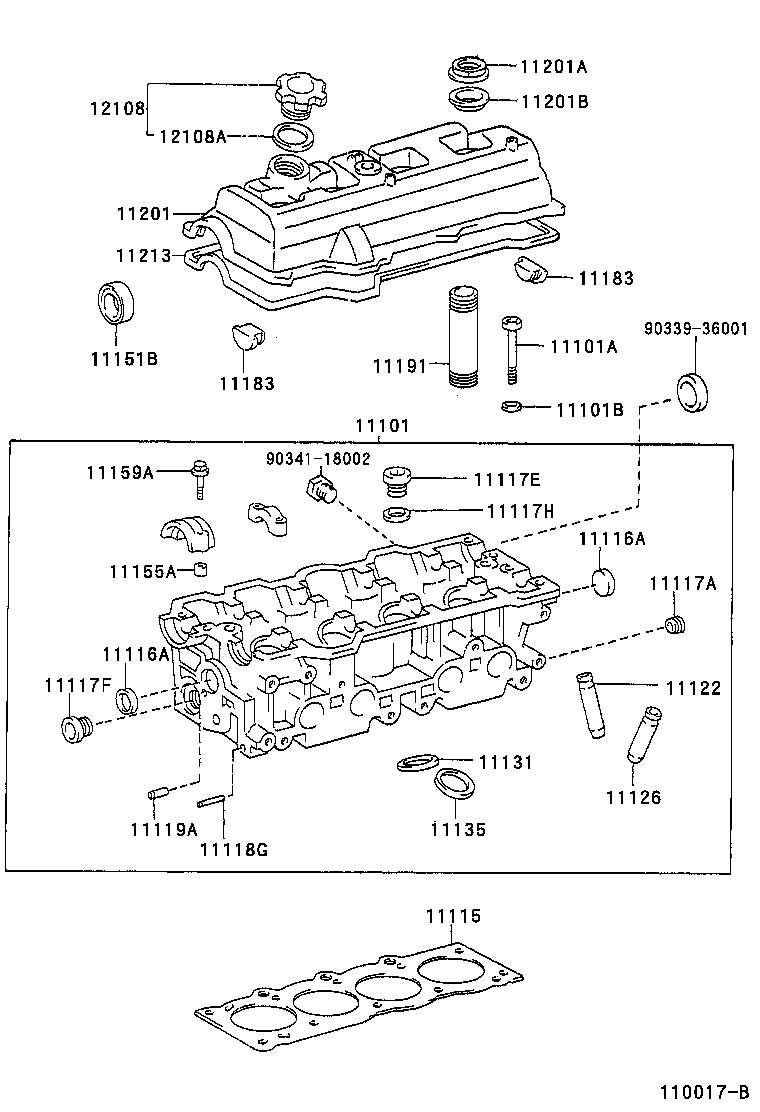

11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101D	Bolt, Stud(FOR WATER OUTLET)
11101J	Valve Assy, Camshaft Timing Oil Control
11101W	Sensor, Crank Position, NO.1
11102A	Sensor, Camshaft Position
11115	Gasket, Cylinder Head
11115A	Pin, Ring
11116A	Plug, Tight, NO.1
11117A	Plug, W/Head Taper Screw, NO.1
11117B	Plug, W/Head Taper Screw, NO.2
11117E	Plug, W/Head Straight Screw, NO.1
11117F	Plug, W/Head Straight Screw, NO.2
11117H	Gasket(FOR WATER HOLE)
11117J	Gasket(FOR CYLINDER HEAD SCREW PLUG)
11118G	Pin, Slotted Spring, NO.1
11119A	Pin, Straight, NO.1
11122	Bush, Intake Valve Guide
11126	Bush, Exhaust Valve Guide
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151B	Seal, Oil(FOR CAMSHAFT SETTING)
11155A	Pin, Ring W/Head
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11159C	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11183	Plug, Semicircular
11188	Plug, Camshaft Housing
11188A	Ring, O(FOR CAMSHAFT HOUSING PULG)
11191	Tube, Spark Plug
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201H	Bolt(FOR CYLINDER HEAD COVER)
11212	Cover, Cylinder Head, NO.2
11213	Gasket, Cylinder Head Cover
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)
12281A	Hanger, Engine, NO.1
12282D	Hanger, Engine, NO.2
12601B	Cover Sub-assy, Engine, NO.1
12631A	Bracket, Engine Cover
15678A	Filter, Oil Control Valve

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
