Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

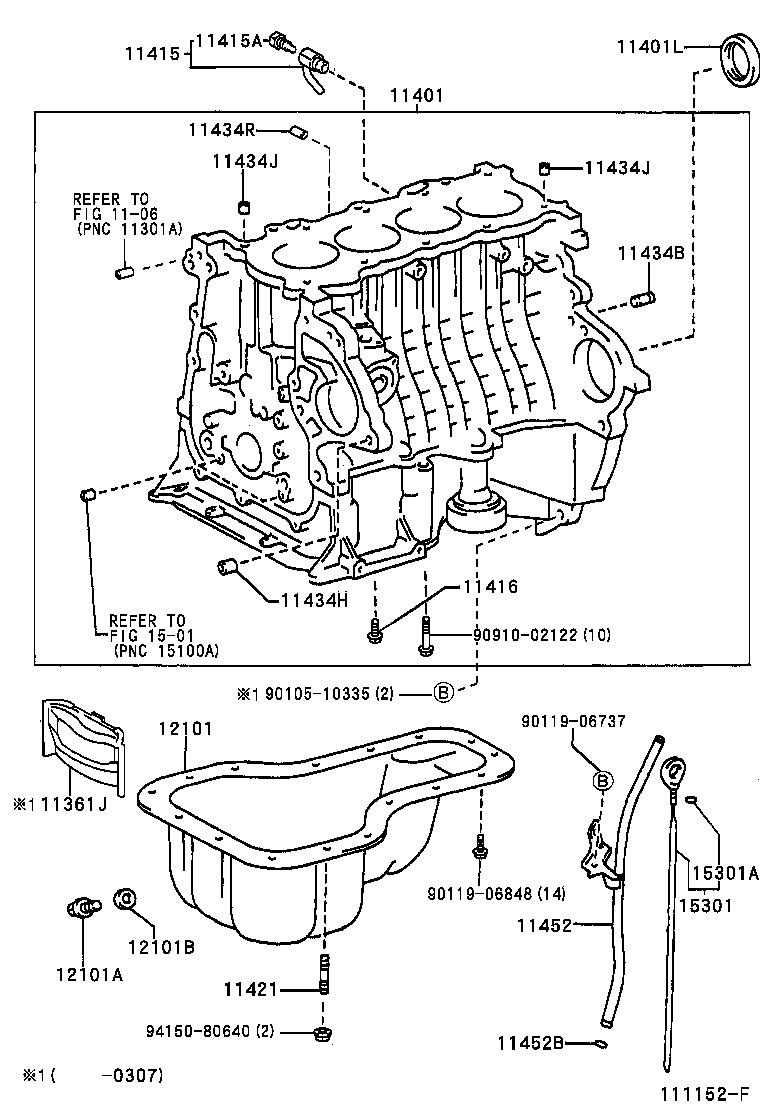

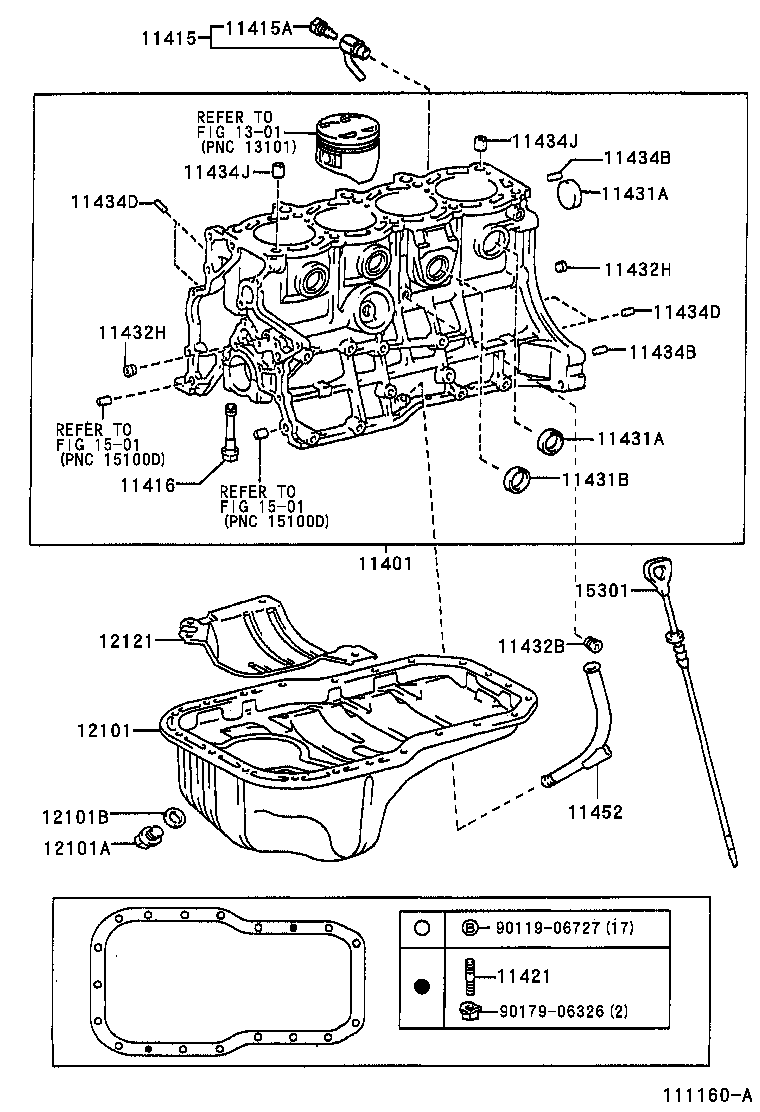

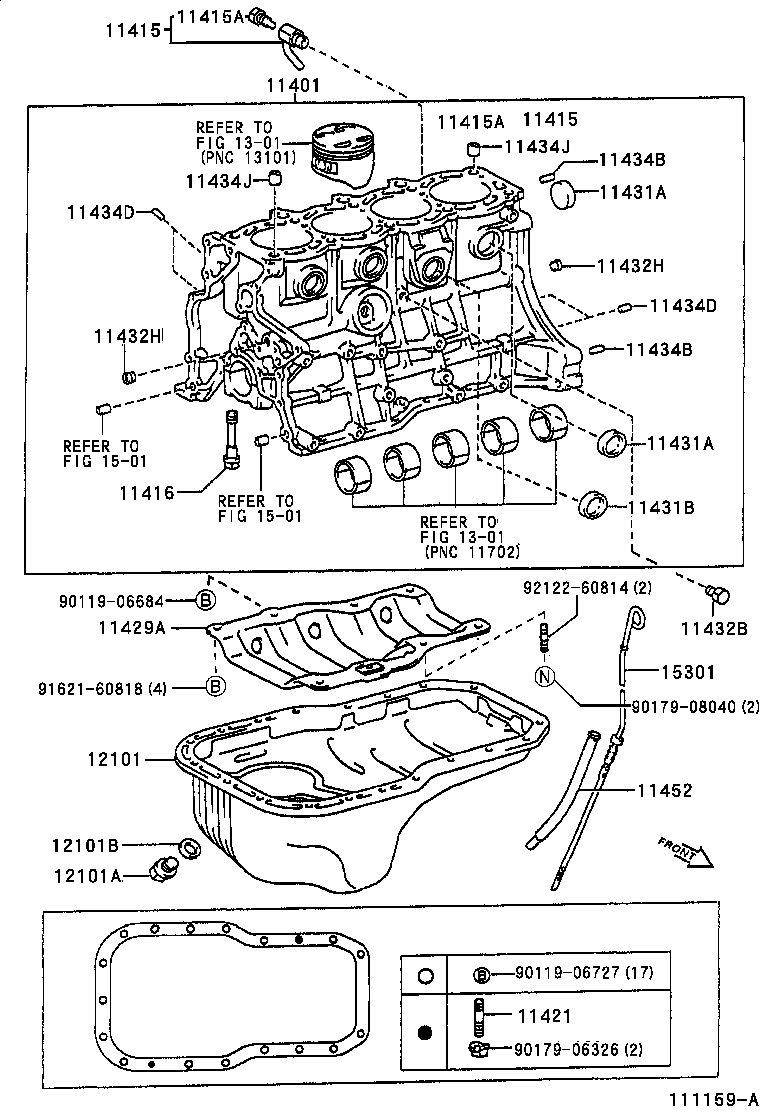

Cylinder Block
34 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11361J | Cover, Flywheel Housing Under |
| 11401 | Block Sub-assy, Cylinder |
| 11401L | Seal, Engine Rear Oil |
| 11415 | Cock Sub-assy, Water Drain(FOR CYLINDER BLOCK) |
| 11415A | Plug, Water Drain Cock(FOR CYLINDER BLOCK) |
| 11416 | Bolt(FOR CRANKSHAFT BEARING CAP SET) |
| 11416A | Pin, Ring(FOR CRANKSHAFT BEARING CAP SET) |
| 11420 | Crankcase Assy, Stiffening |
| 11421 | Bolt, Stud(FOR OIL PAN) |
| 11429A | Plate, Cylinder Block Stiffening |
| 11431A | Plug, Tight, NO.1(FOR CYLINDER BLOCK) |
| 11431B | Plug, Tight, NO.2(FOR CYLINDER BLOCK) |
| 11432A | Plug, W/Head Taper Screw, NO.1 |
| 11432B | Plug, W/Head Taper Screw, NO.2 |
| 11432H | Plug, W/Head Taper Screw, NO.5 |
| 11432T | Plug, W/Head Straight Screw, NO.3(FOR CYLINDER BLOCK) |
| 11432U | Gasket, Straight Screw Plug NO.1(FOR CYLINDER BLOCK) |
| 11434A | Pin, Straight(FOR TIMING GEAR COVER SET) |
| 11434B | Pin, Straight(FOR CLUTCH HOUSING SET) |
| 11434C | Pin, Straight (FOR CYLINDER HEAD SET) |
| 11434D | Pin, Straight(FOR ENGINE REAR OIL SEAL) |
| 11434H | Pin, Ring (FOR TIMING BELT COVER SET) |
| 11434J | Pin, Ring (FOR CYLINDER HEAD SET) |
| 11434R | Pin, Straight(FOR DRIVE SHAFT BEARING BRACKET) |
| 11434Y | Pin, Straight(FOR OIL PAN) |
| 11452 | Guide, Oil Level Gage |
| 11452B | Ring, O(FOR OIL LEVEL GAGE GUIDE) |
| 12101 | Pan Sub-assy, Oil |
| 12101A | Plug(FOR OIL PAN DRAIN) |
| 12101B | Gasket(FOR OIL PAN DRAIN PLUG) |
| 12121 | Plate, Oil Pan Baffle, NO.1 |
| 15301 | Gage Sub-assy, Oil Level |
| 15301A | Ring, O(FOR OIL LEVEL GAGE) |
| 15678B | Filter, Oil Control Valve |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
