Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Timing Gear Cover & Rear End Plate

22 part groups · 4 illustrations

Illustrations

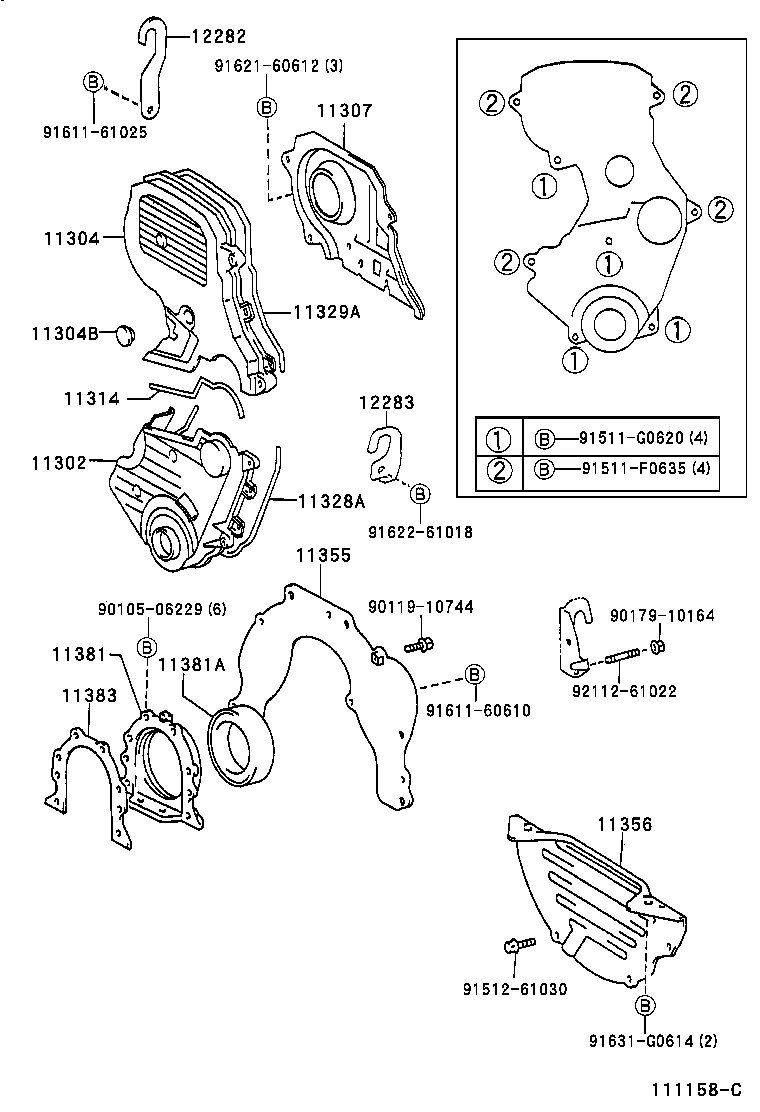

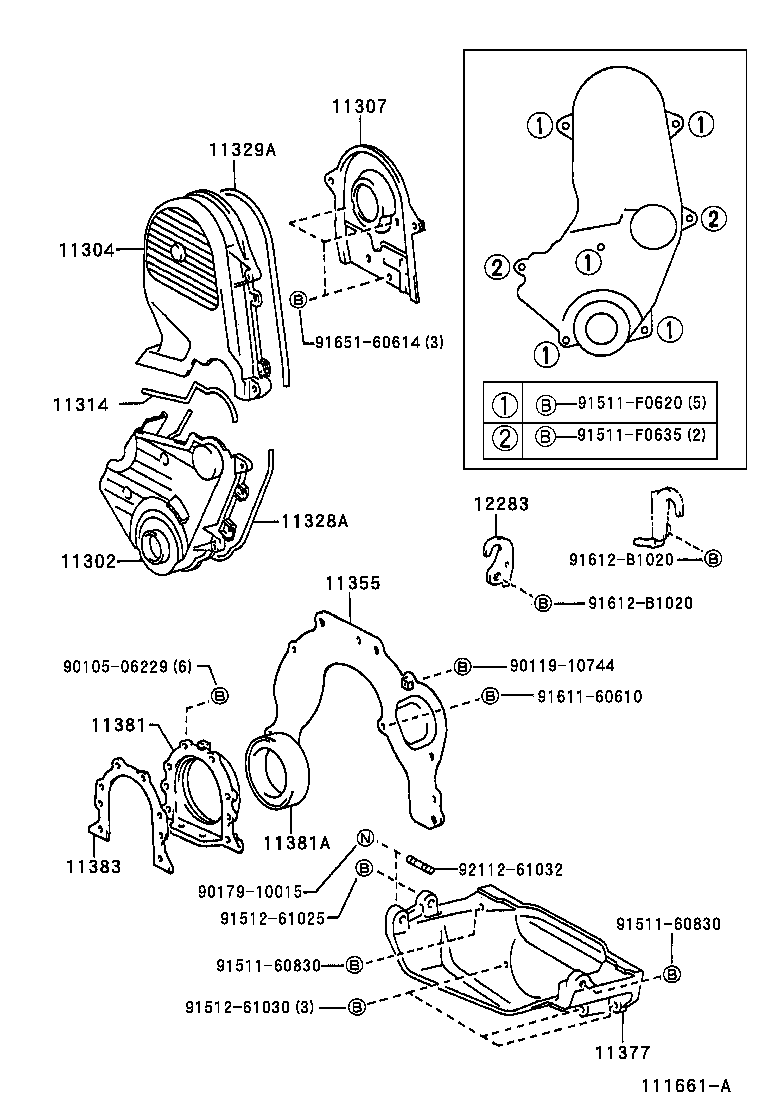

Figure 112354 112354 2001-08 → — Figure 111158C 111158C 1998-06 → — Figure 111661A 111661A 1998-06 → 2001-08 Figure 110745G 110745G 1998-06 → —

Part groups

PNCDescription
11301A Pin, Straight(FOR TIMING GEAR CASE)
11301C Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
11301K Sensor, Crank Position
11302 Cover Sub-assy, Timing Chain OR Belt
11302A Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
11304 Cover, Timing Chain OR Belt, NO.2
11304B Plug, Semi Circular(FOR CHAIN COVER NO.2)
11307 Cover, Sub-assy, Timing Belt, NO.3
11314 Gasket, Timing Chain NO.2 Cover
11328A Gasket, Timing Belt Cover, NO.1
11329A Gasket, Timing Belt OR Chain Cover, NO.2
11355 Plate, Rear End
11356 Plate, Rear End, NO.2
11377 Stiffener, Rear End Plate
11381 Retainer, Engine Rear Oil Seal
11381A Seal, Engine Rear Oil
11383 Gasket, Engine Rear Oil Seal Retainer
12281 Hanger, Engine, NO.1
12282 Hanger, Engine, NO.2
12283 Hanger, Engine, NO.3
19529A Clamp
19941C Clamp, Cord(FOR CRANK POSITION SENSOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
