Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

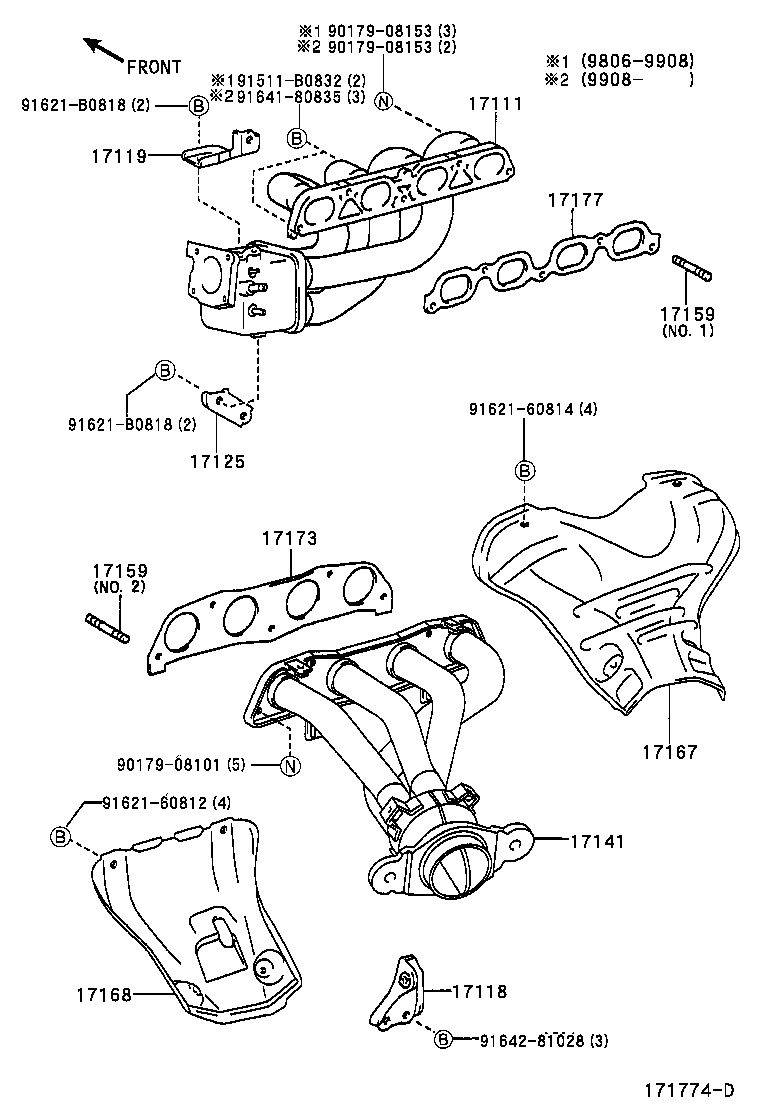

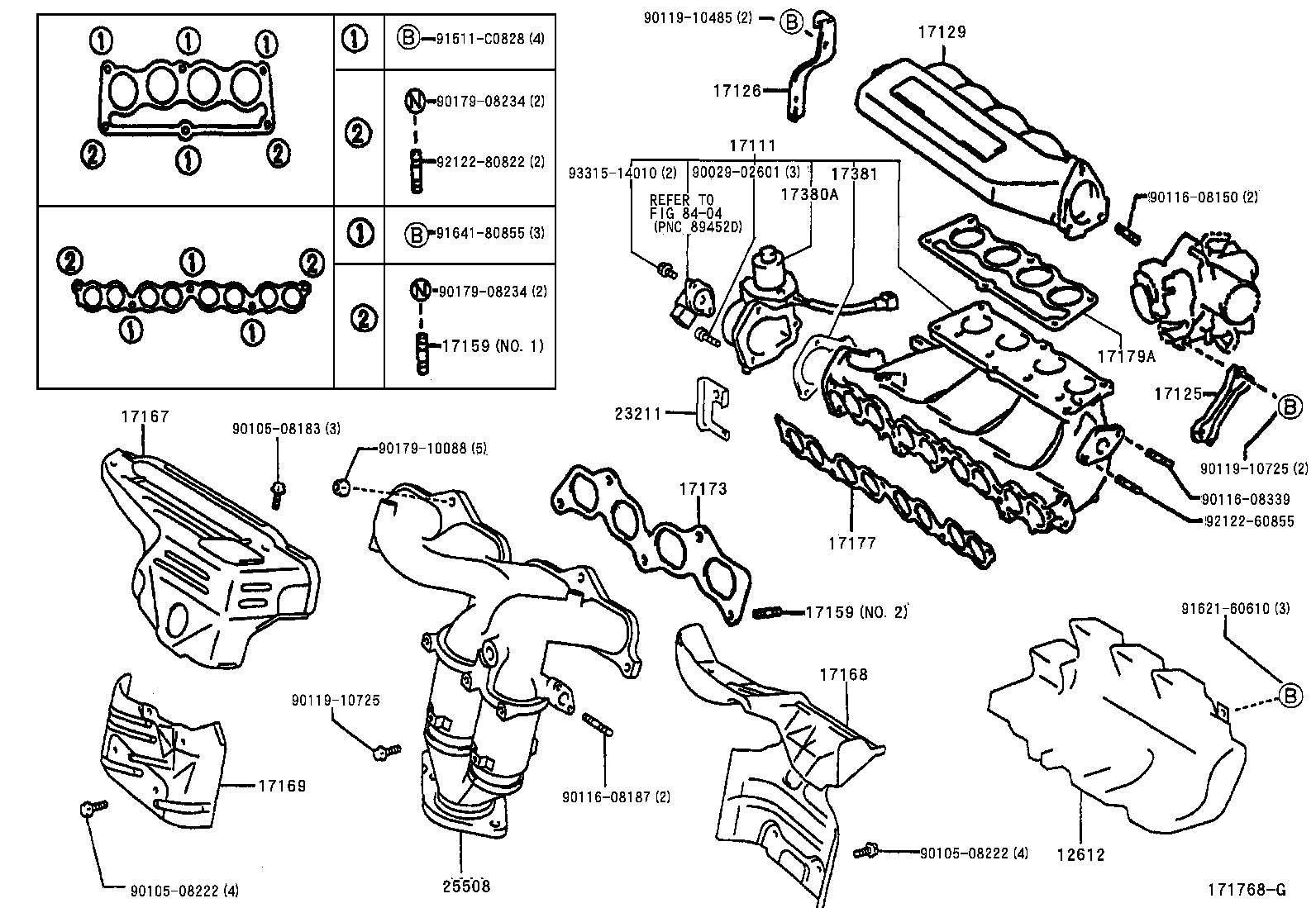

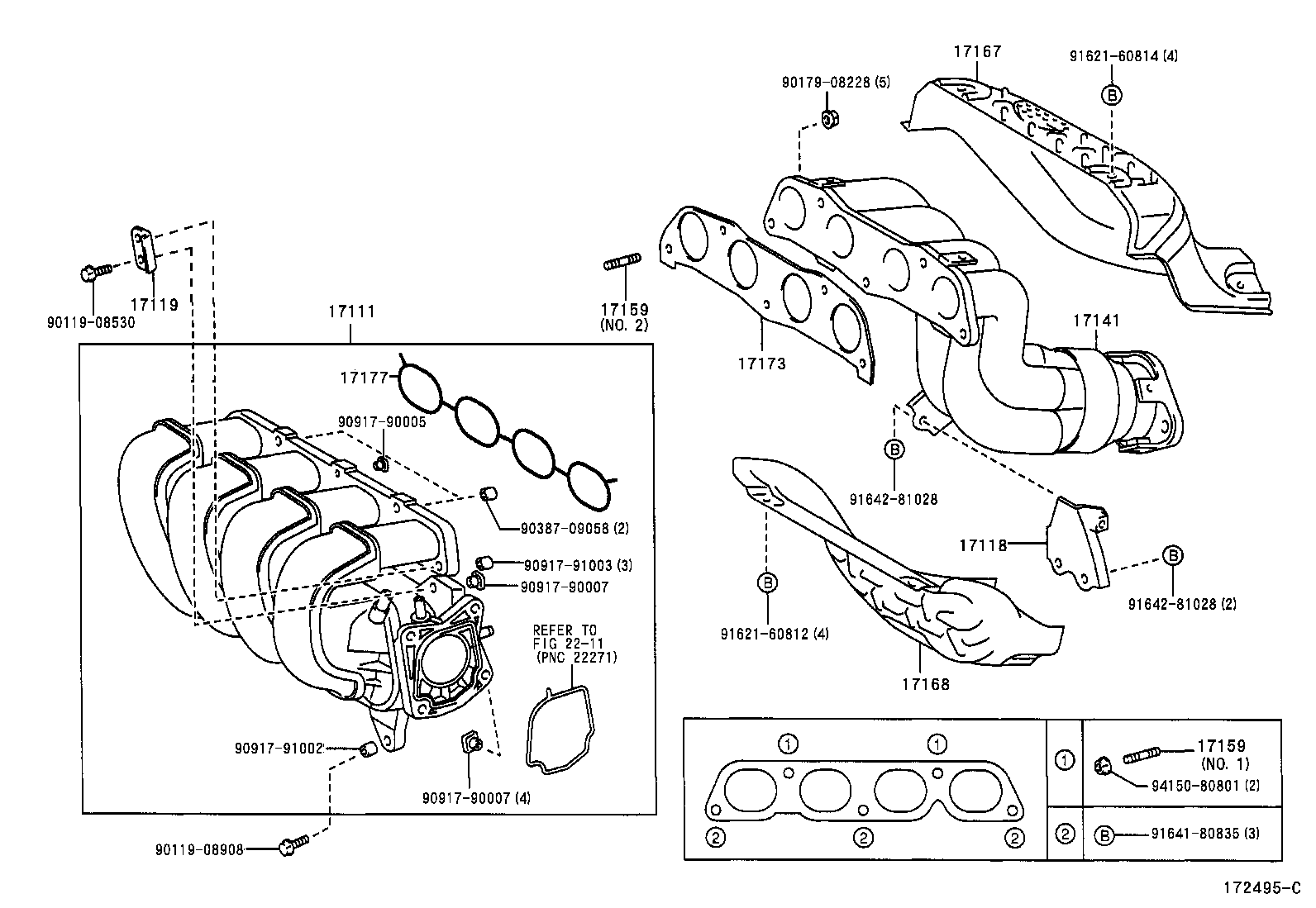

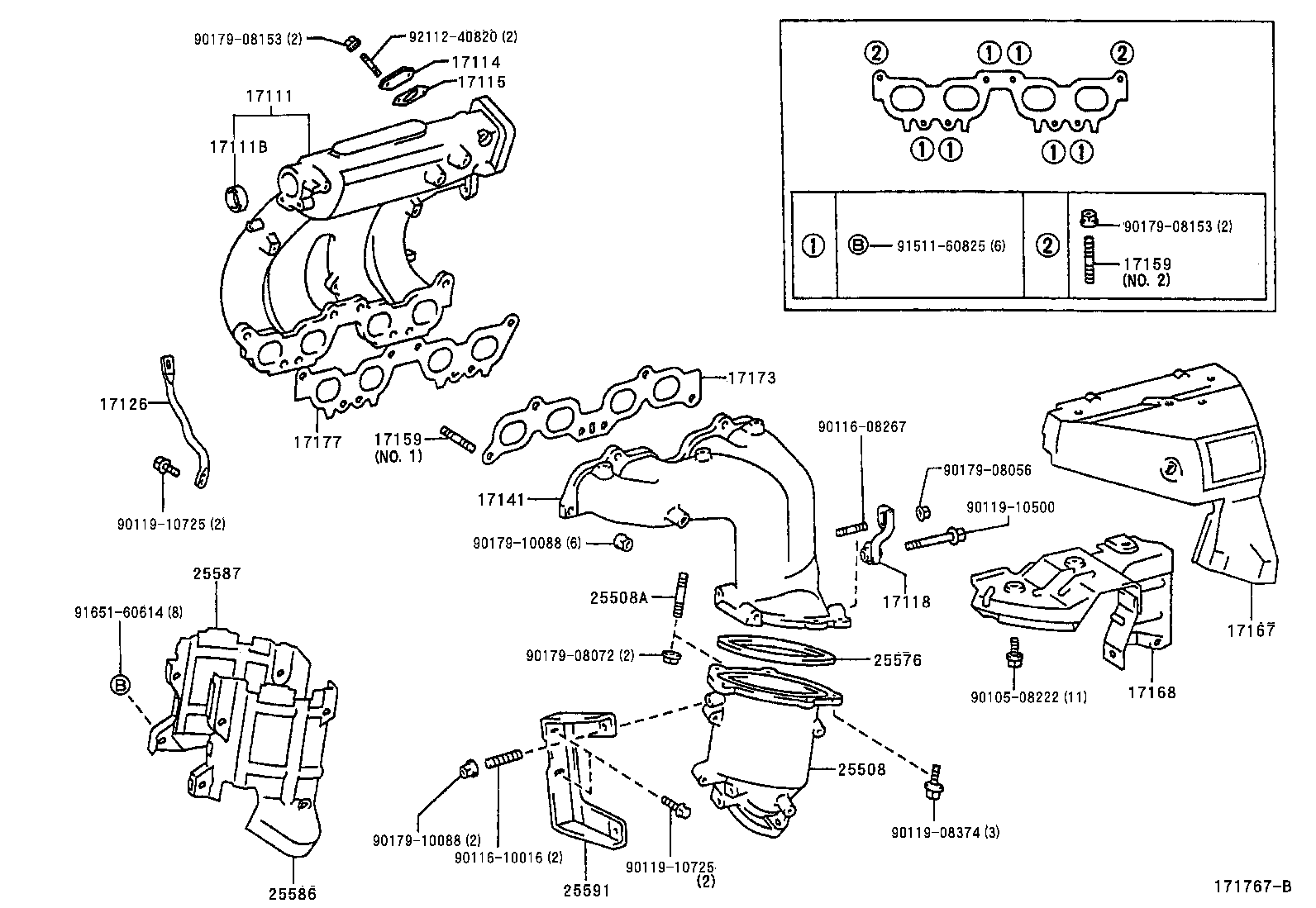

Manifold
35 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 12612 | Cover, Engine, NO.2 |
| 17111 | Manifold, Intake |
| 17111B | Plug, NO.2 |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17114 | Plate, Intake Manifold Hole Cover |
| 17115 | Gasket, Intake Manifold Hole Cover |
| 17118 | Stay, Manifold |
| 17119 | Stay, Manifold, NO.2 |
| 17125 | Stay, Surge Tank, NO.1 |
| 17126 | Stay, Surge Tank, NO.2 |
| 17129 | Tank, Intake Air Surge |
| 17135A | Insulator, Intake Manifold, NO.1 |
| 17136 | Insulator, Intake Manifold, NO.2 |
| 17139 | Stay, Manifold, NO.2 |
| 17141 | Manifold, Exhaust |
| 17141J | Bolt, Stud(FOR EXHAUST MANIFOLD, RH) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17167 | Insulator, Exhaust Manifold Heat, NO.1 |
| 17168 | Insulator, Exhaust Manifold Heat, NO.2 |
| 17169 | Insulator, Exhaust Manifold Heat, NO.3 |
| 17171 | Gasket, Intake TO Exhaust Manifold |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17179A | Gasket, Intake Manifold, NO.2 |
| 17300 | Valve Assy, Intake Air Control |
| 17380A | Actuator Assy, Swirl Control |
| 17381 | Gasket, Swirl Control Actuator |
| 23211 | Bracket, Wire |
| 25051 | Converter Sub-assy, Exhaust Manifold |
| 25508 | Converter Sub-assy, Manifold |
| 25508A | Bolt, Stud(FOR MANIFOLD CONVERTER) |
| 25576 | Gasket, Manifold Converter |
| 25586 | Insulator, Manifold Converter, NO.1 |
| 25587 | Insulator, Manifold Converter, NO.2 |
| 25591 | Bracket, Manifold Support |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
