Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

15 part groups · 6 illustrations

Illustrations

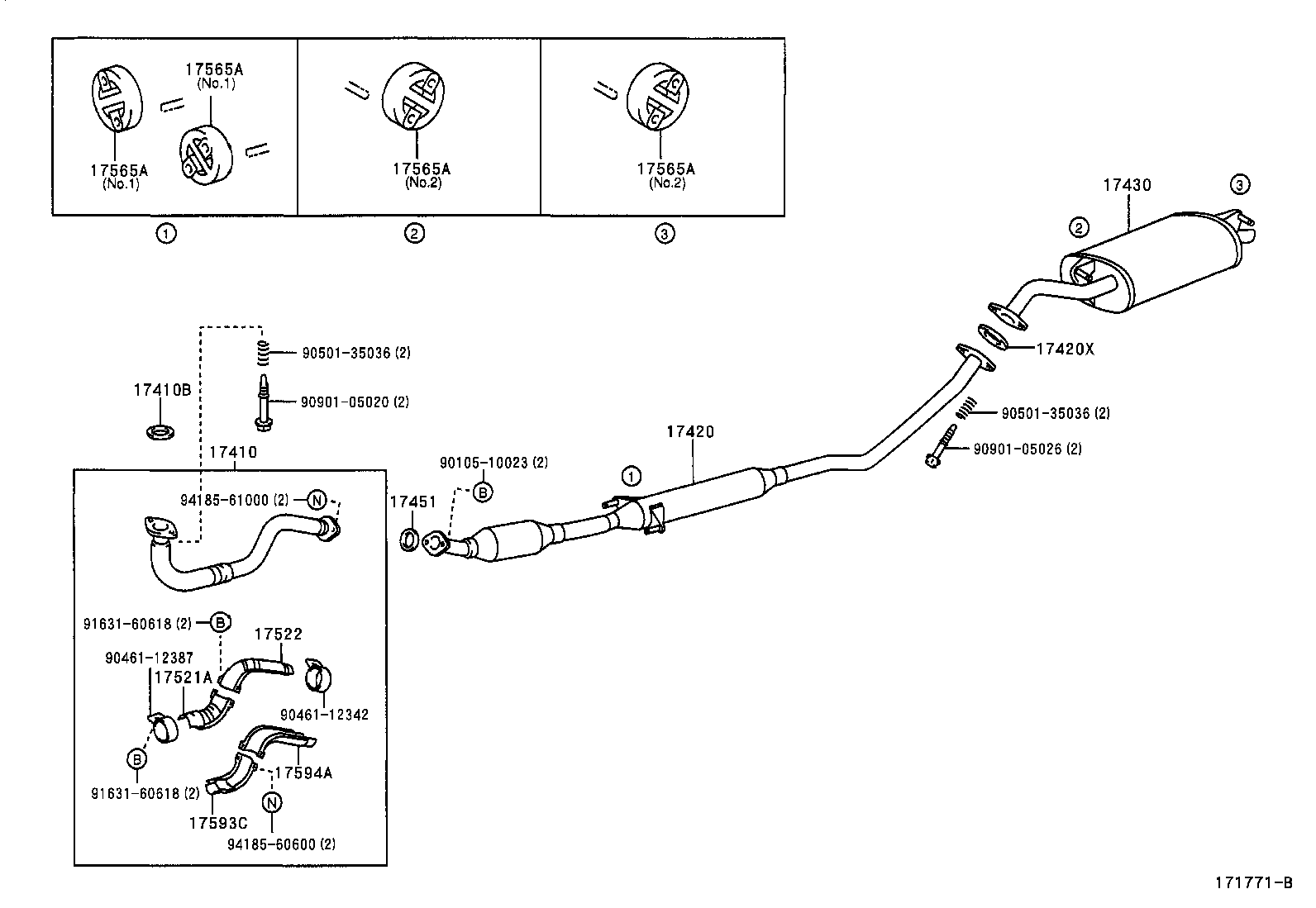

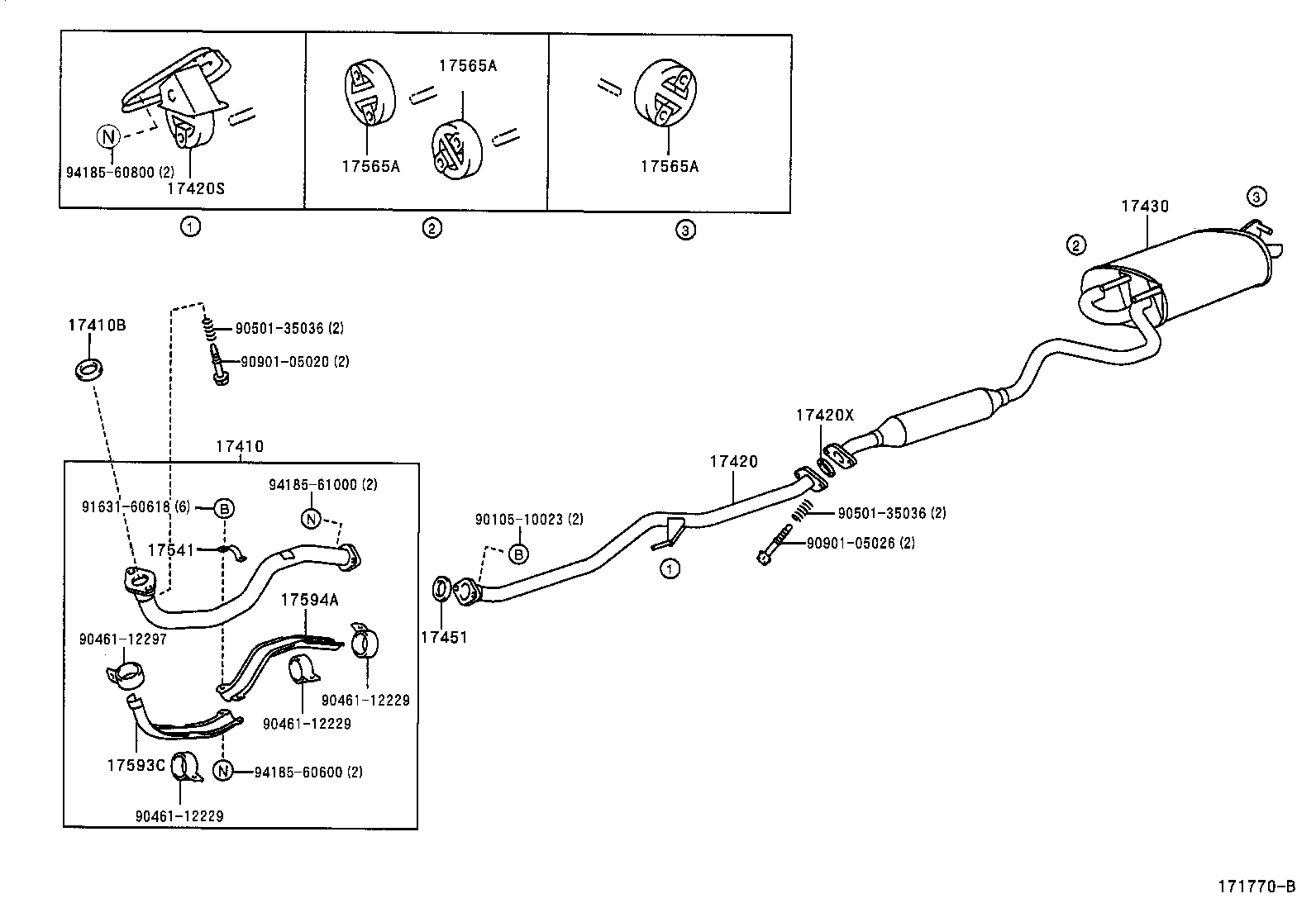

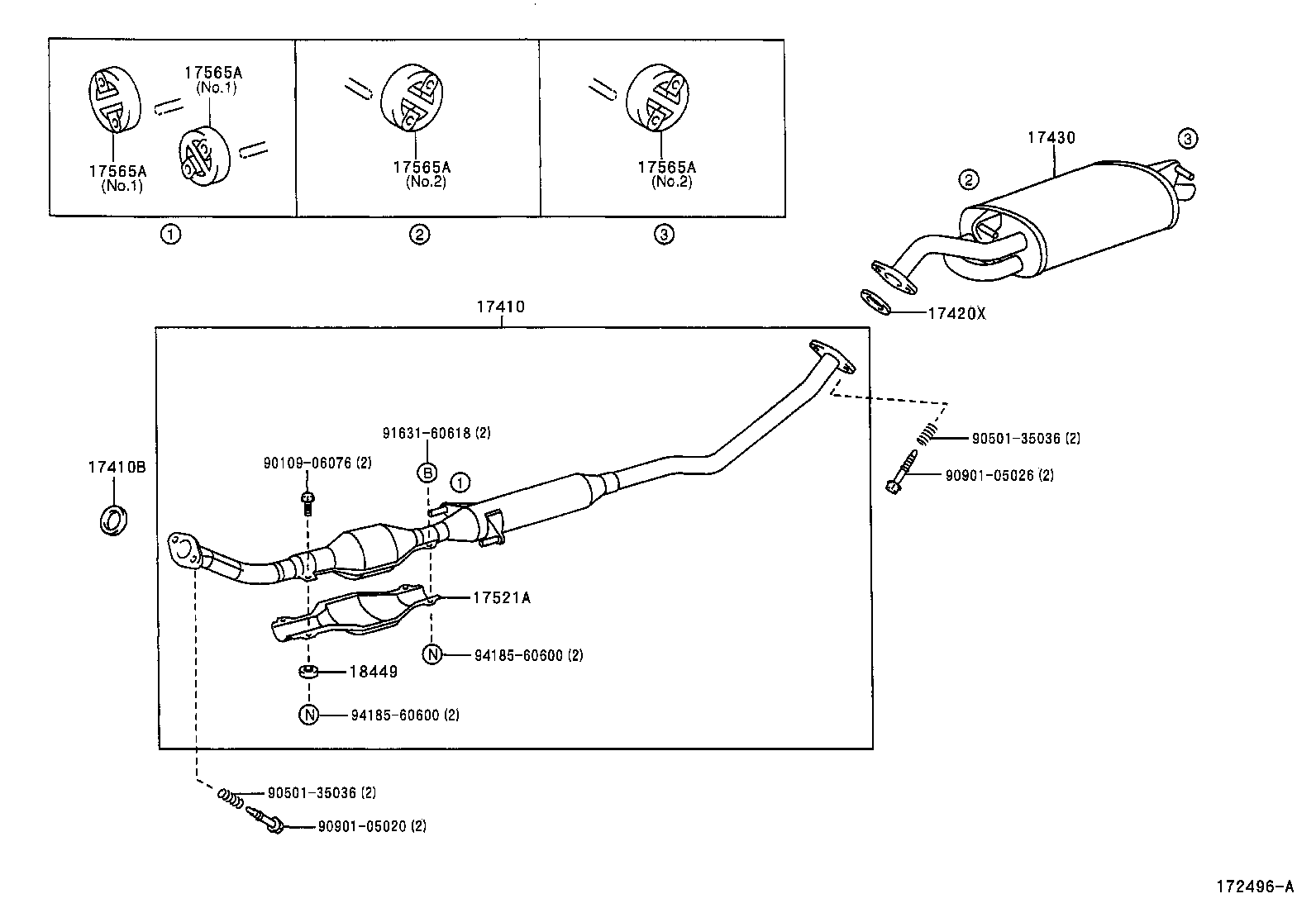

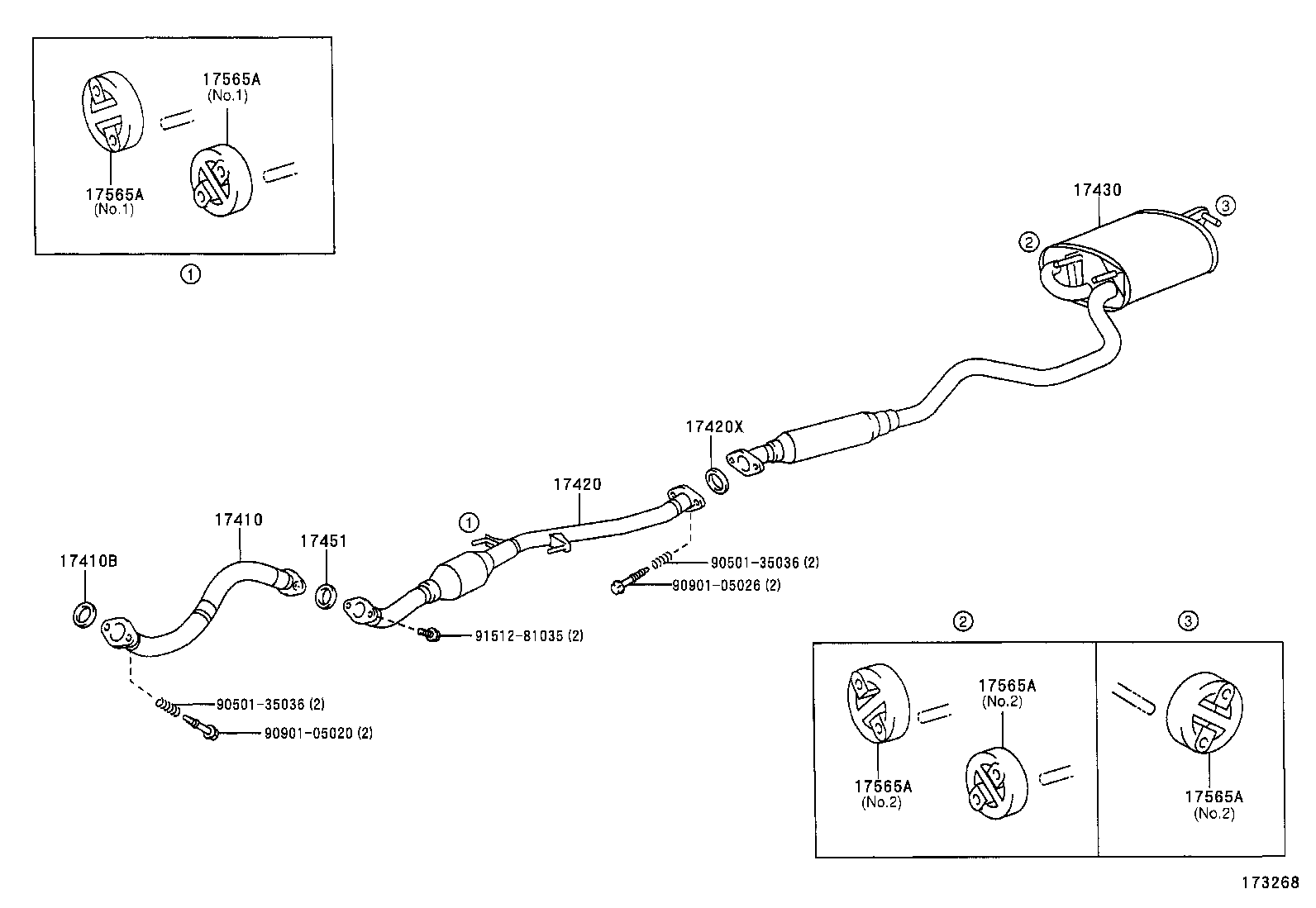

Figure 171769B 171769B 1998-06 → 2000-04 Figure 172496A 172496A 2000-04 → — Figure 171770B 171770B 1998-06 → 2002-04 Figure 171771B 171771B 1998-06 → 2001-08 Figure 173052 173052 2001-08 → — Figure 173268 173268 2002-04 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420S Bracket, Exhaust Pipe Center, Rear
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17522 Protector, Exhaust Pipe, Upper NO.2
17541 Stay, Exhust Pipe Protector, NO.1
17542 Stay, Exhaust Pipe Protector, NO.2
17565A Support, Exhaust Pipe, NO.4
17593C Protector, Exhaust Pipe, Lower NO.1
17594A Protector, Exhaust Pipe, Lower NO.2
18449 Spacer, Converter Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
