Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fuel Injection System

60 part groups · 9 illustrations

Illustrations

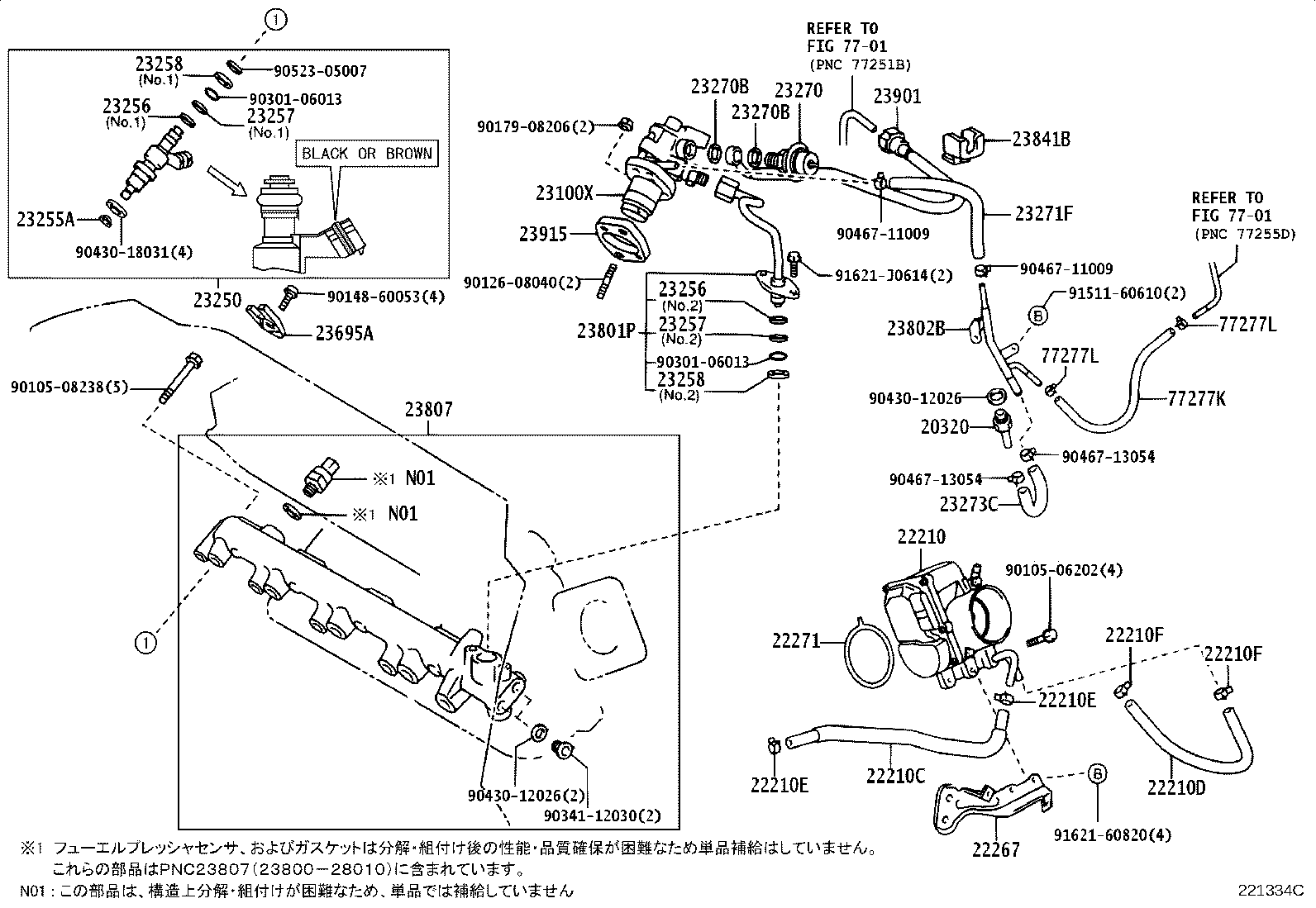

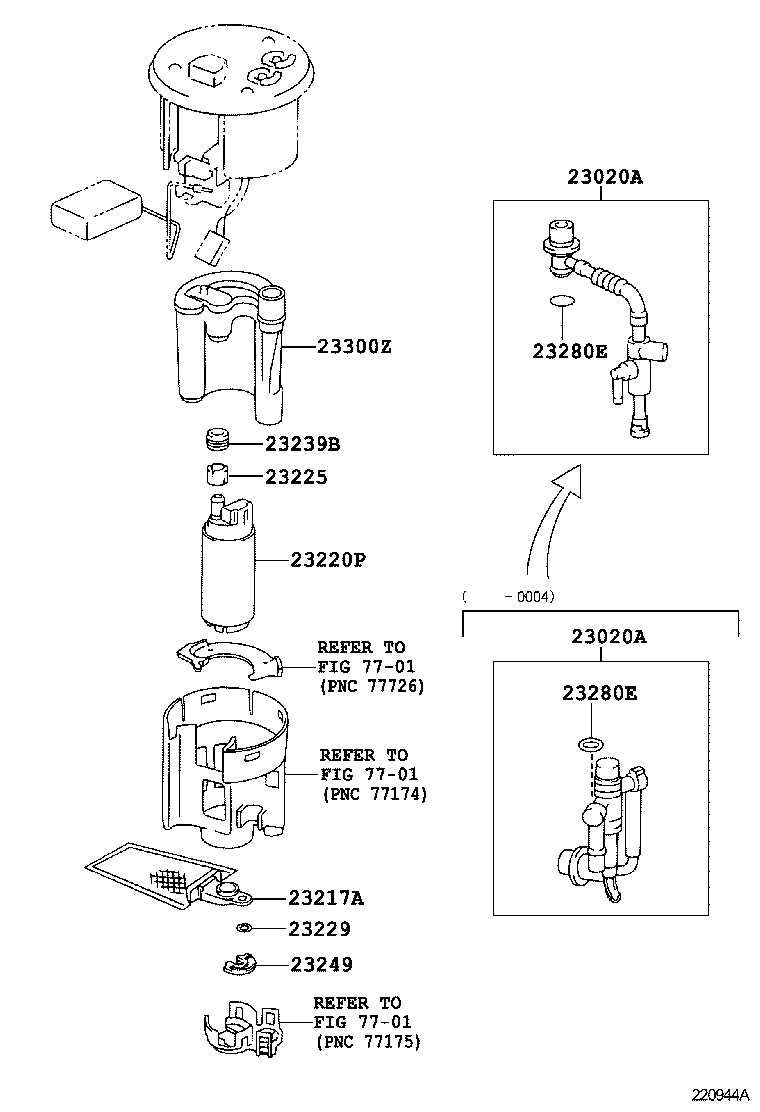

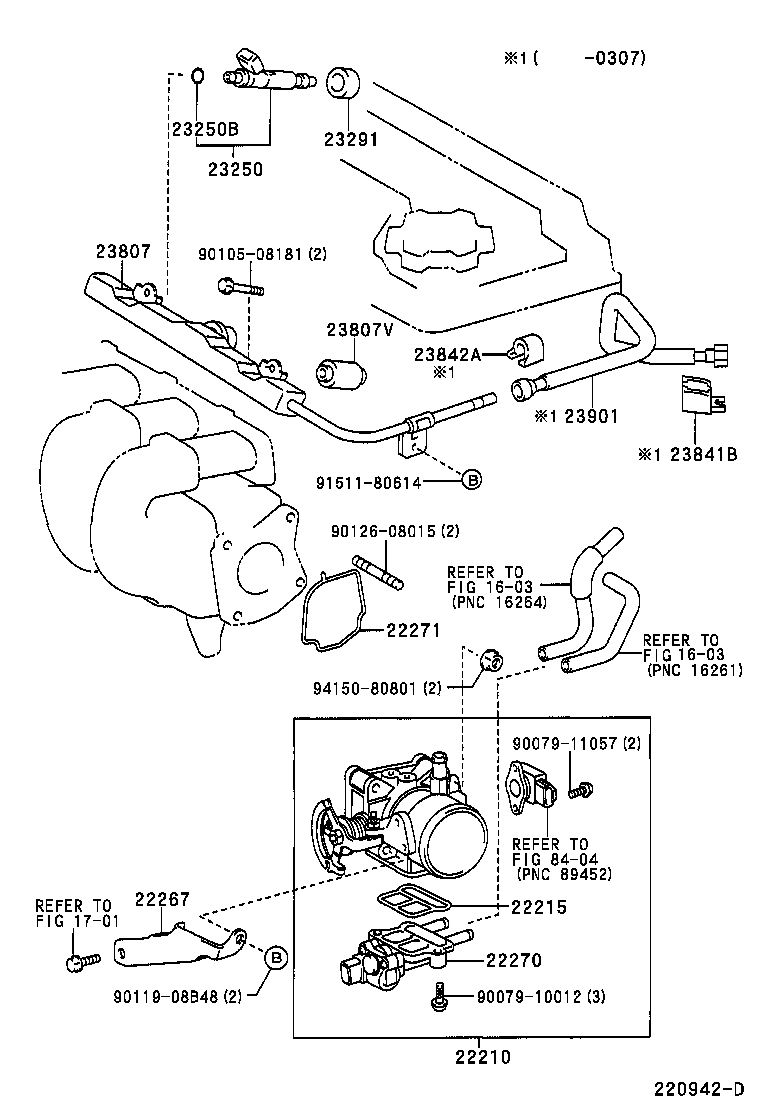

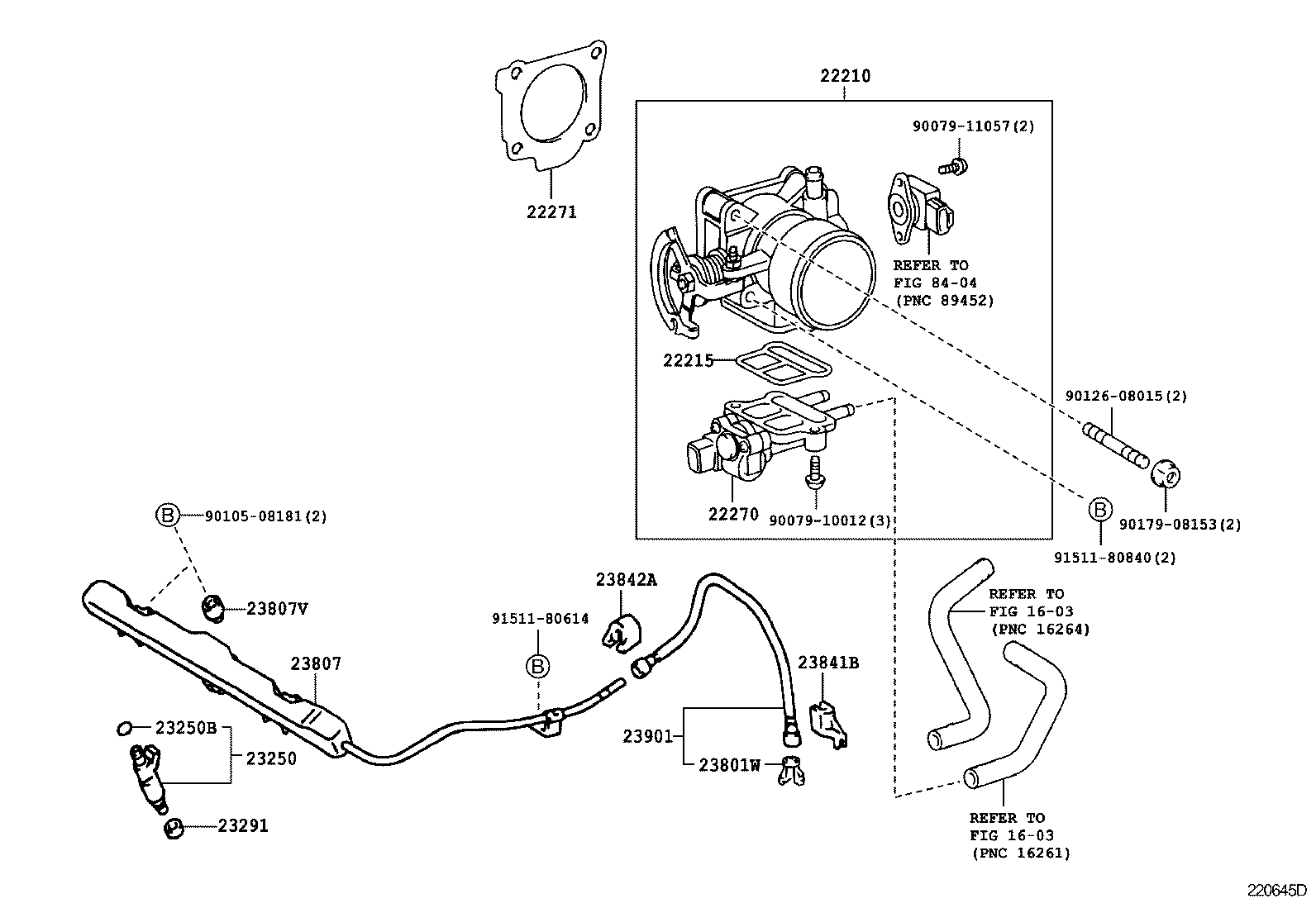

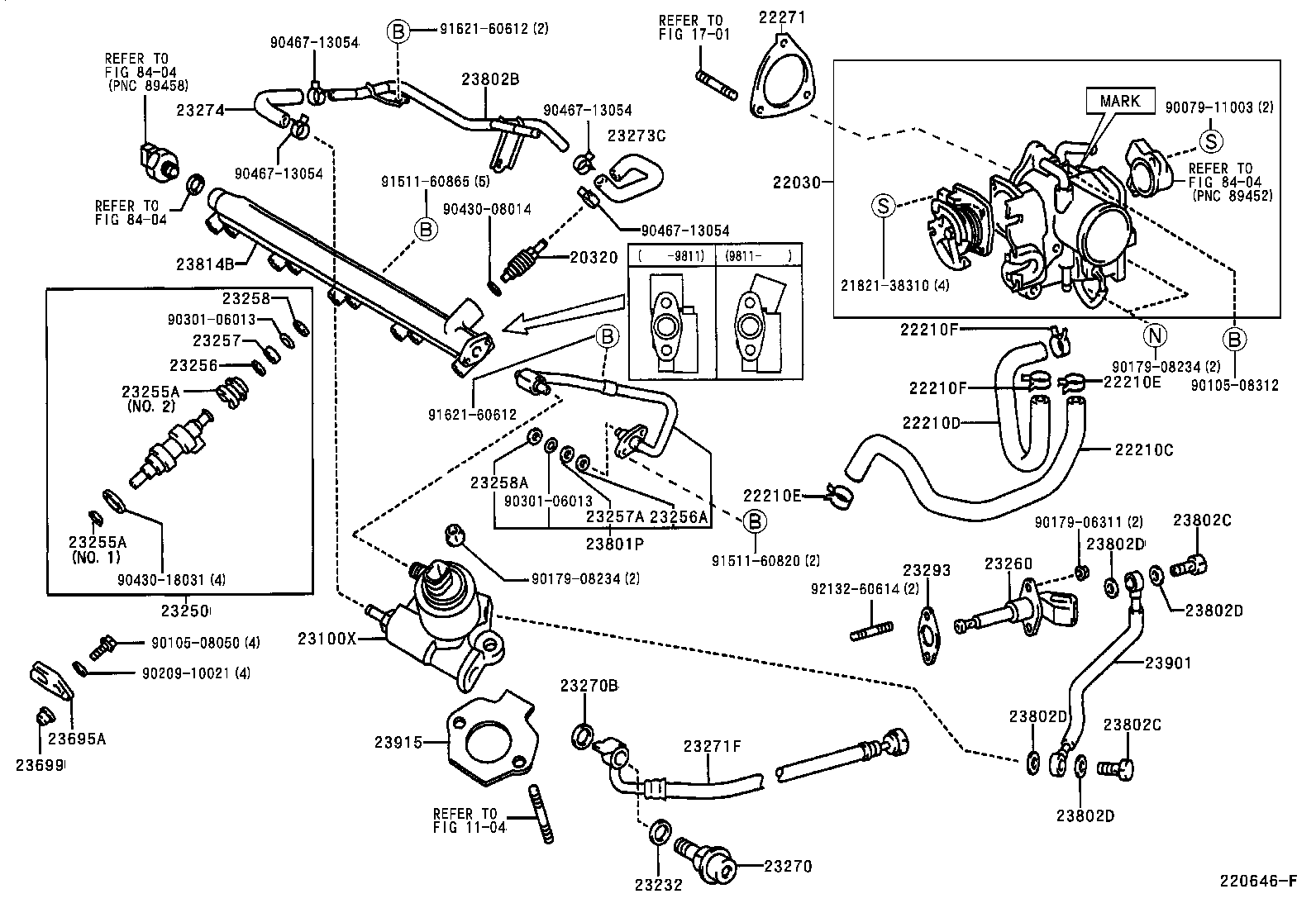

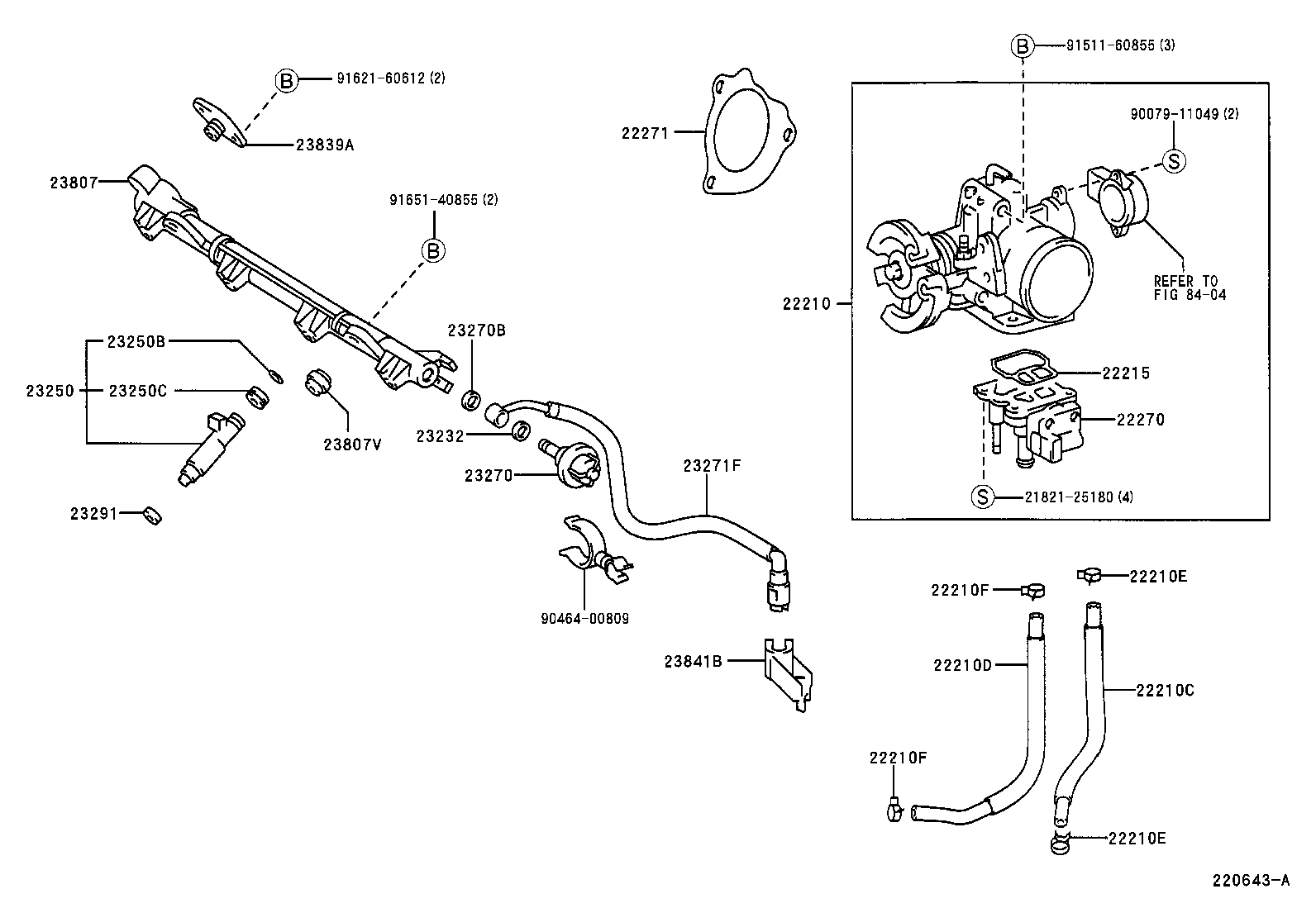

Figure 221202C 221202C 2001-08 → 2002-05 Figure 221334C 221334C 2002-05 → — Figure 221278 221278 2001-08 → — Figure 220643A 220643A 1998-06 → — Figure 220646F 220646F 1998-06 → 2001-08 Figure 220944A 220944A 1998-06 → — Figure 220645D 220645D 1998-06 → 2000-04 Figure 220942D 220942D 2000-04 → — Figure 220644C 220644C 1998-06 → —

Part groups

PNCDescription
20320 Valve Assy, Fuel Relief
22030 Body Assy, Throttle W/Throttle Position Sensor
22210 Body Assy, Throttle
22210C Hose, Water By-pass, NO.1
22210D Hose, Water By-pass, NO.2
22210E Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE, NO.1)
22210F Clamp OR Clip, Hose (FOR WATER BY-PASS HOSE, NO.2)
22215 Gasket, Throttle Body Cover
22267 Bracket, Throttle Body
22270 Valve Assy, Idle Speed Control(FOR THLOTTLE BODY)
22271 Gasket, Throttle Body
23020A Regulator Assy, Fuel Pressure W/Jet Pump
23100X Pump Assy, Fuel (ENGINE ROOM SIDE)
23217A Filter, Fuel Pump
23220P Pump Assy, Fuel
23225 Spacer, Fuel Pump
23229 Clip(FOR FUEL PUMP FILTER)
23232 Gasket(FOR FUEL PUMP HOSE)
23239B Seal, Fuel Pump Filter
23249 Rubber, Cushion(FOR FUEL PUMP)
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23250C Grommet(FOR FUEL INJECTOR)
23255A Seal, Fuel Injector
23256 Ring, Fuel Injector Back-up, NO.1
23256A Ring, Fuel Pipe, NO.1
23257 Ring, Fuel Injector Back-up, NO.2
23257A Ring, Fuel Pipe, NO.2
23258 Ring, Fuel Injector Back-up, NO.3
23258A Ring, Fuel Pipe, NO.3
23260 Injector Assy, Cold Start Fuel
23270 Damper Assy, Fuel Pressure Pulsation
23270B Gasket(FOR PULSATION DAMPER HOSE)
23271F Hose, Fuel
23273C Hose, Fuel, NO.2
23274 Hose, Fuel, NO.3
23280 Regulator Assy, Fuel Pressure
23280E Ring, O(FOR FUEL PRESSURE REGULATOR)
23291 Insulator, Injector Vibration
23293 Gasket, Cold Start Injector
23300Z Filter, Fuel(FOR FUEL TANK)
23695A Clamp, Nozzle Holder
23699 Seat, Nozzle Holder Clamp
23801P Pipe Sub-assy, Fuel, NO.1
23801W Clip, Fuel Tube Connector
23801Y Gasket
23801Z Ring, Snap(FOR FUEL PIPE)
23802B Pipe Sub-assy, Fuel, NO.2
23802C Bolt, Union(FOR FUEL PIPE NO.2)
23802D Gasket(FOR FUEL PIPE NO.2)
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23814B Pipe, Fuel Delivery
23839A Plug, Fuel Pipe, NO.1
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23901 Tube Sub-assy, Fuel
23915 Insulator, Fuel Pump
77277K Hose, Fuel(FOR RETURN HOSE)
77277L Clip, Hose(FOR RETURN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
