Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 4 illustrations

Illustrations

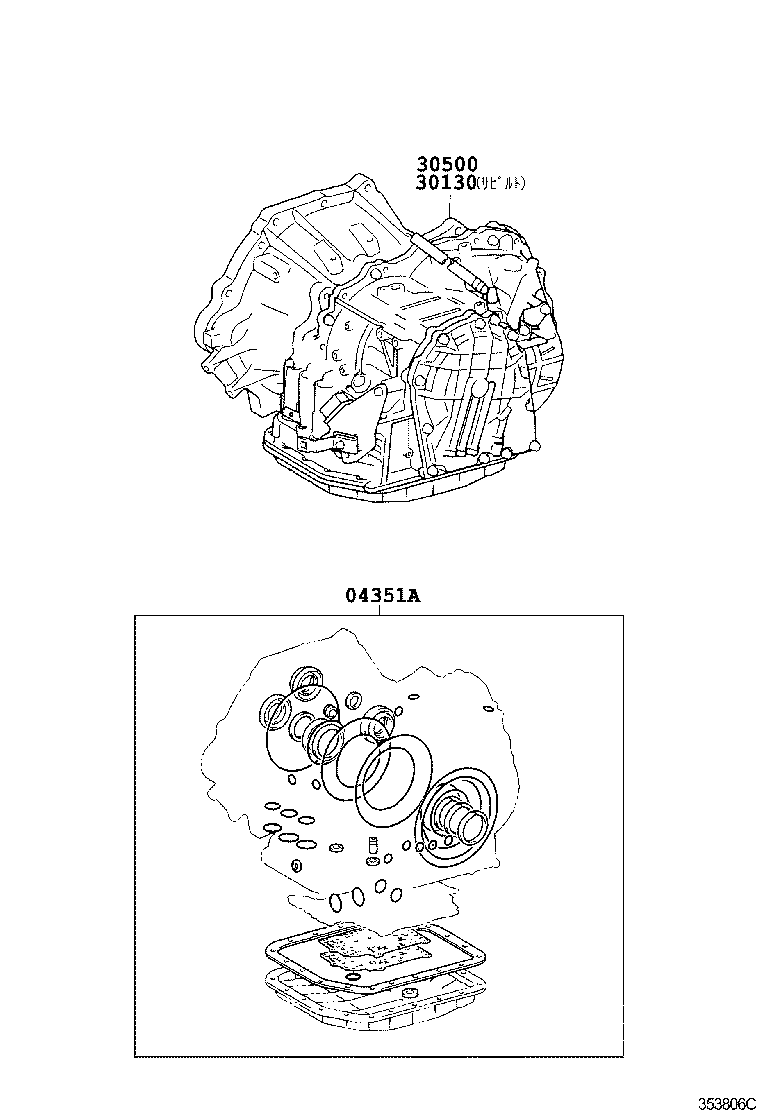

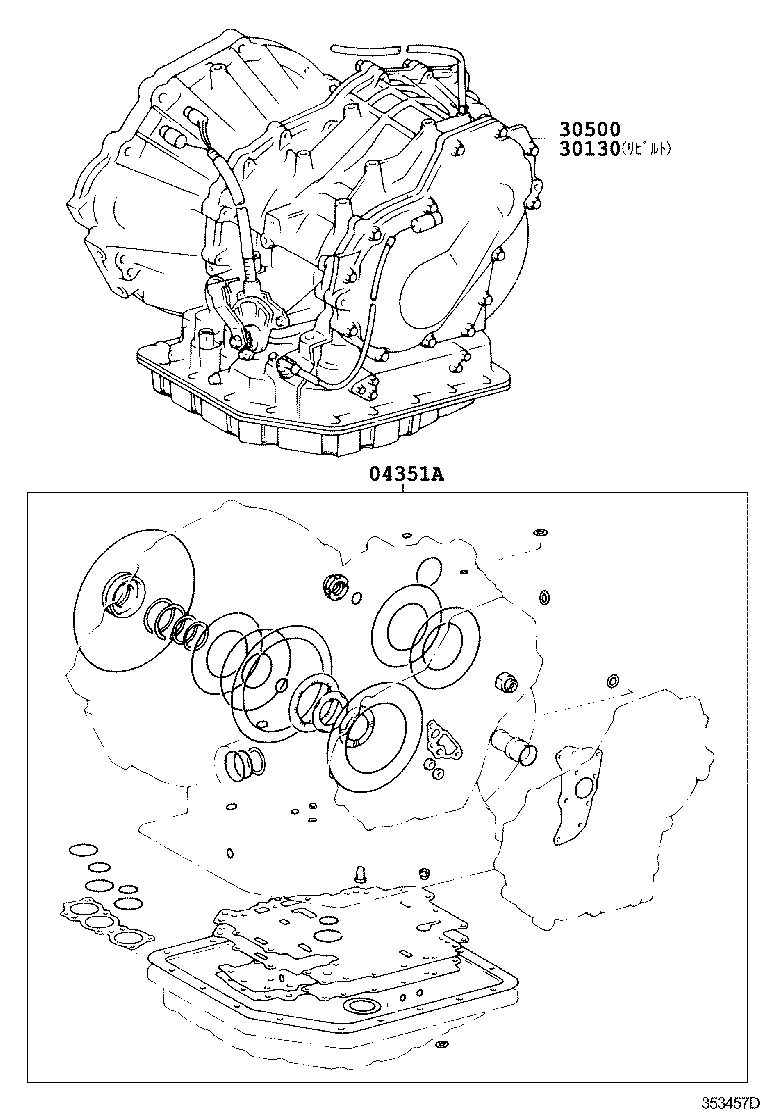

Figure 350994B 350994B 1998-06 → 2000-04 Figure 350994B 350994B 1998-06 → — Figure 353806C 353806C 2000-04 → — Figure 353457D 353457D 2001-08 → —

Part groups

PNCDescription
04351A Gasket Kit, Transaxle Overhaul(ATM)
30130 Transaxle Assy, Rebuilt
30500 Transaxle Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
