Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

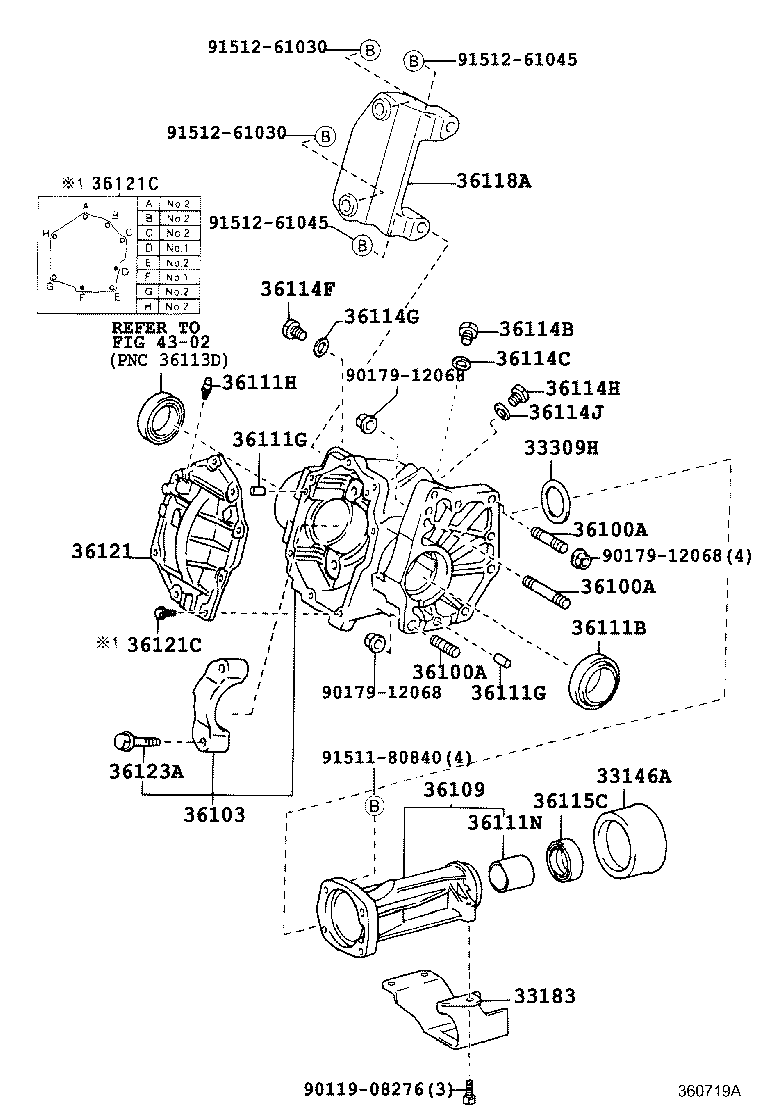

Transfer Case & Extension Housing
23 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 33146A | Deflector, Transfer Extension Housing Dust |
| 33183 | Damper, Transfer Dynamic |
| 33309H | Washer, Transfer Output Shaft |
| 36100A | Bolt, Stud (FOR TRANSFER & TRANSAXLE SETTING) |
| 36100B | Bolt (FOR TRANSFER & TRANSAXLE SETTING) |
| 36103 | Case Sub-assy, Transfer |
| 36109 | Housing Sub-assy, Transfer Extension |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111H | Plug, Breather (FOR TRANSFER CASE) |
| 36111N | Bush (FOR TRANSFER CASE) |
| 36114B | Plug, NO.1 (FOR TRANSFER CASE) |
| 36114C | Gasket, NO.1 (FOR TRANSFER CASE) |
| 36114F | Plug (FOR TRANSFER DRAIN) |
| 36114G | Gasket (FOR TRANSFER DRAIN PLUG) |
| 36114H | Plug, NO.2 (FOR TRANSFER CASE) |
| 36114J | Gasket, NO.2 (FOR TRANSFER CASE) |
| 36115C | Seal, Type T Oil (FOR TRANSFER EXTENSION HOUSING) |
| 36118A | Plate, Transfer Stiffener, RH |
| 36119D | Plate, Transfer Stiffener, Center |
| 36121 | Cover, Transfer Case, NO.1 |
| 36121C | Bolt, Washer Based Head Hexagon (FOR TRANSFER CASE COVER) |
| 36123A | Bolt, Differential Bearing Cap |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
