Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

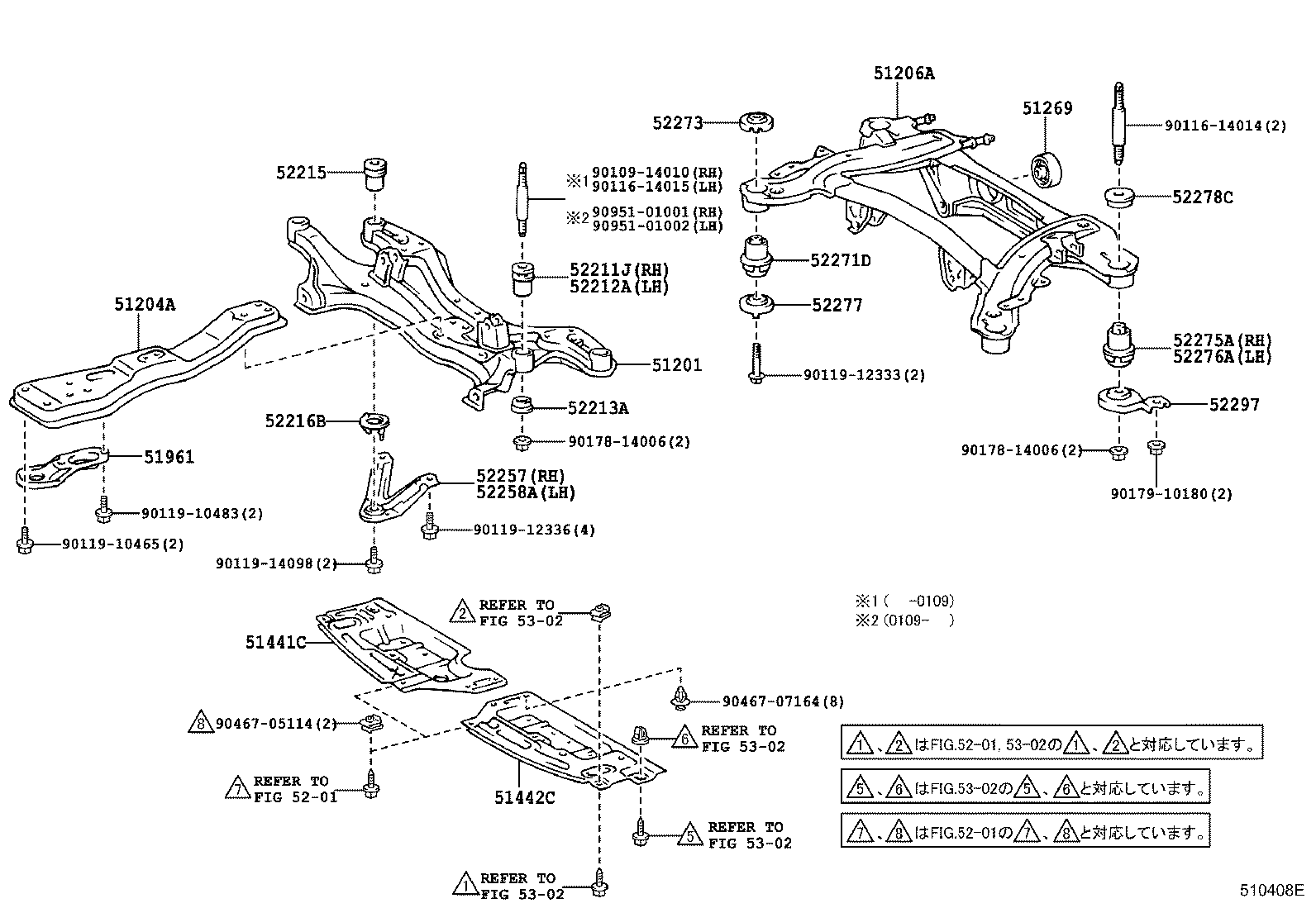

Suspension Crossmember & Under Cover
22 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51201 | Crossmember Sub-assy, Front Suspension |
| 51204A | Member Sub-assy, Engine Mounting, Center |
| 51206A | Member Sub-assy, Rear Suspension |
| 51227 | Weight, Front Suspension Member Damper |
| 51269 | Damper, Differential Support Member |
| 51441C | Cover, Engine Under, RH |
| 51442C | Cover, Engine Under, LH |
| 51961 | Hook, NO.1 |
| 52211J | Cushion, Front Suspension Member Body Mounting, Front |
| 52212A | Cushion, Body Mounting, NO.2 |
| 52213A | Stopper, Front Suspension Member Body Mounting, Front |
| 52215 | Cushion, Front Suspension Member Body Mounting, Rear |
| 52216B | Stopper, Front Suspension Member Body Mounting, Rear |
| 52257 | Brace, Front Suspension Member, Rear RH |
| 52258A | Brace, Front Suspension Member, Rear LH |
| 52271D | Cushion, Rear Suspension Member Body Mounting, Front |
| 52273 | Stopper, Rear Suspension Member, Lower |
| 52275A | Cushion, Rear Suspension Member Body Mounting, Rear |
| 52276A | Cushion, Rear Suspension Member Body Mount, Rear LH |
| 52277 | Retainer, Rear Suspension Member Lower Stopper, RH |
| 52278C | Stopper, Rear Suspension Member, Rear Lower |
| 52297 | Brace, Rear Suspension Member, Rear Lower RH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
