Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

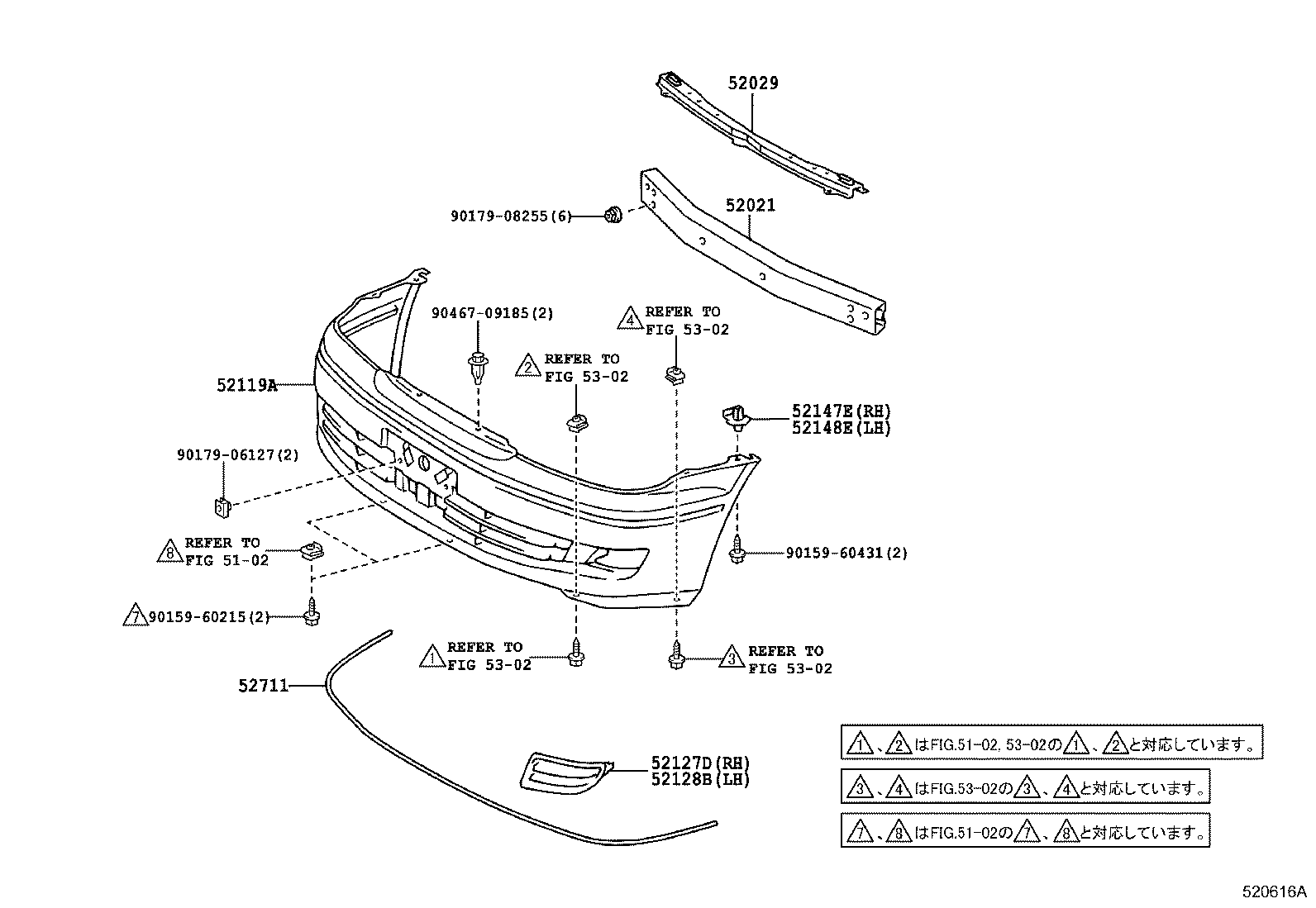

Front Bumper & Bumper Stay
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 52021 | Reinforcement Sub-assy, Front Bumper |
| 52029 | Reinforcement Sub-assy, Front Bumper, Upper |
| 52119A | Cover, Front Bumper |
| 52127D | Cover, Front Bumper Hole, RH |
| 52128B | Cover, Front Bumper Hole, LH |
| 52129B | Cover, Front Bumper, Lower |
| 52147E | Bracket, Front Bumper Mounting, RH |
| 52148E | Bracket, Front Bumper Mounting, LH |
| 52161C | Piece, Front Bumper |
| 52711 | Moulding, Front Bumper |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
