Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01

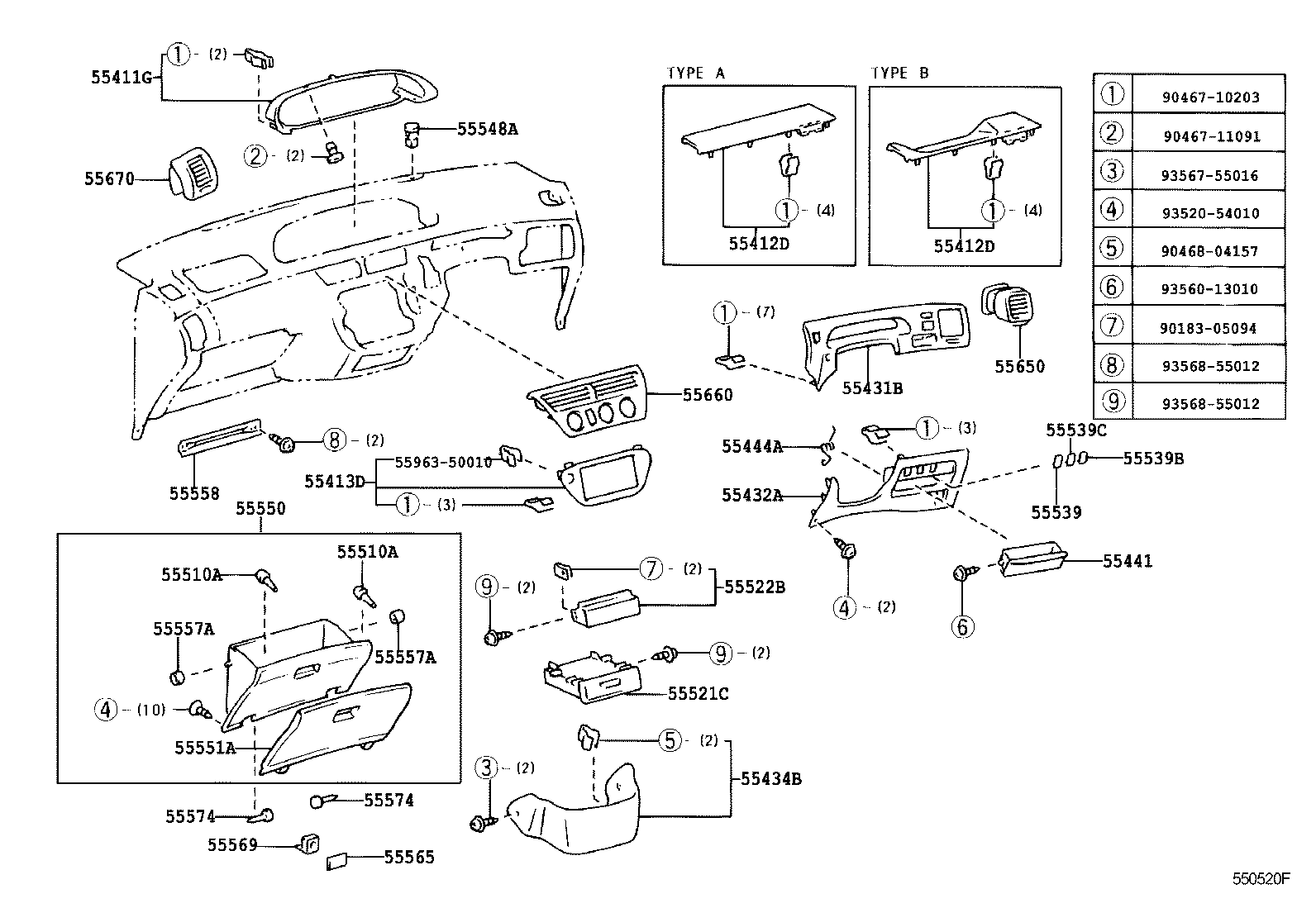

Instrument Panel & Glove Compartment

37 part groups · 2 illustrations

PNC	Description
55031A	Stay Sub-assy, Instrument Panel, NO.1
55306A	Brace Sub-assy, Instrument Panel, NO.1
55308C	Bracket Sub-assy, Instrument Panel, Center
55330B	Reinforcement Assy, Instrument Panel
55375B	Bracket, Instrument Panel Lower Mounting, NO.2
55401E	Pad Sub-assy, Instrument Panel Safety
55411G	Panel, Instrument Cluster Finish, NO.1
55412D	Panel, Instrument Cluster Finish, Center
55413D	Panel, Instrument Cluster Finish, Center Lower
55431B	Panel, Instrument Panel Finish, Upper
55432A	Panel, Instrument Panel Finish, Lower RH
55434B	Panel, Instrument Panel Finish, Lower Center
55441	Box, Instrument Panel
55444A	Spring, Instrument Panel Box
55510A	Cushion(FOR GLOVE COMPARTMENT DOOR)
55521C	Cover, Stereo Opening
55522B	Cover, Radio Tuner Opening
55539	Cover, Spare Switch Hole
55539B	Cover, Spare Switch Hole, NO.2
55539C	Cover, Spare Switch Hole
55548A	Cover, Instrument Panel Hole
55550	Door Assy, Glove Compartment
55551A	Door, Glove Compartment, Outer
55557A	Cushion, Glove Compartment Door Check
55558	Reinforcement, Glove Compartment Door
55565	Handle, Glove Compartment Door Lock
55569	Cover, Glove Compartment Door Lock
55574	Shaft, Glove Compartment Door Hinge
55650	Register Assy, Instrument Panel, NO.1
55660	Register Assy, Instrument Panel, NO.2
55670	Register Assy, Instrument Panel, NO.3
55950A	Nozzle Assy, Defroster
55961	Nozzle, Side Defroster, NO.1
55962	Nozzle, Side Defroster, NO.2
55971B	Duct, Side Defroster Nozzle, NO.1
55972A	Duct, Side Defroster Nozzle, NO.2
73960A	Airbag Assy, Instrument Panel Passenger W/O Door

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
