Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

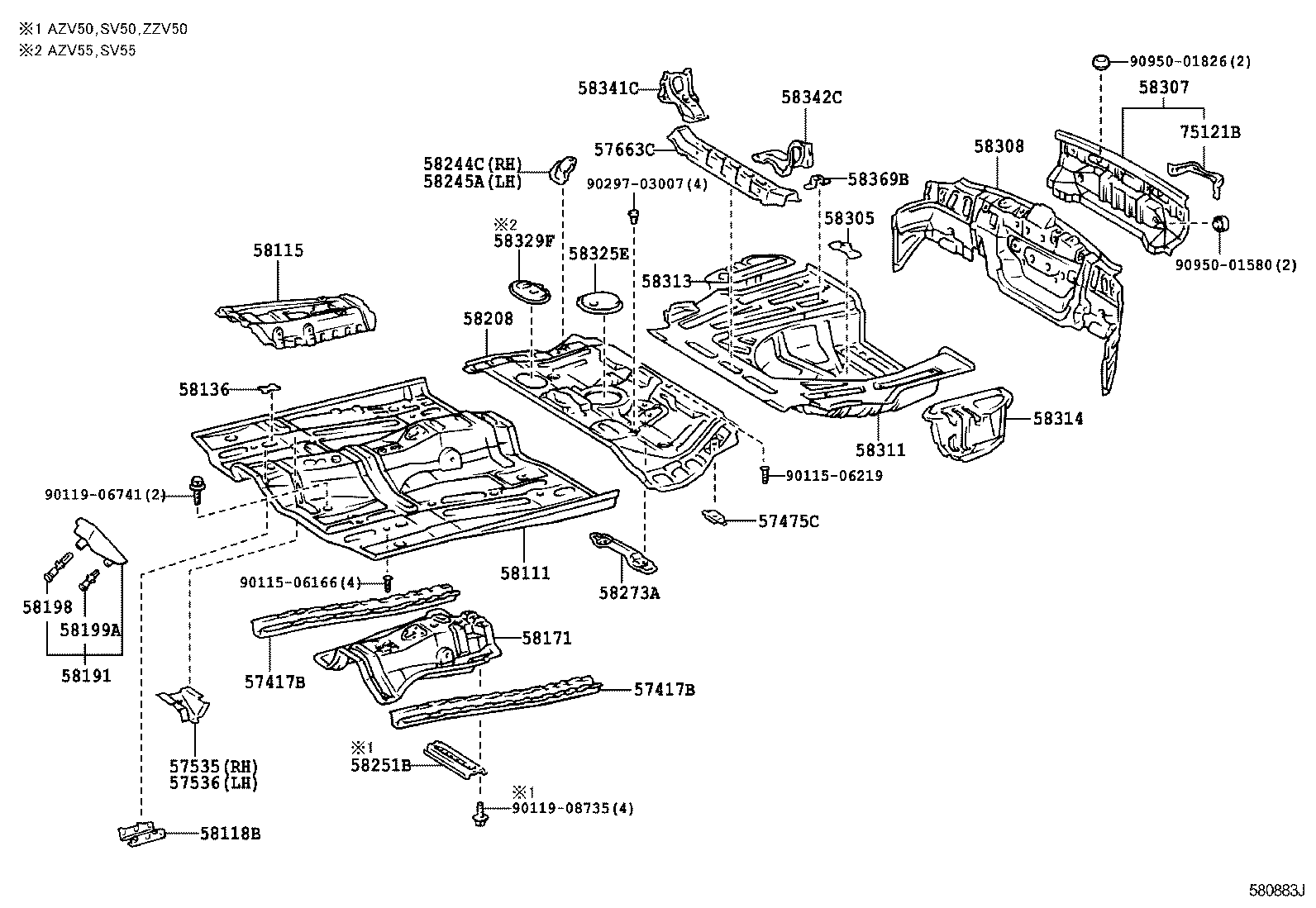

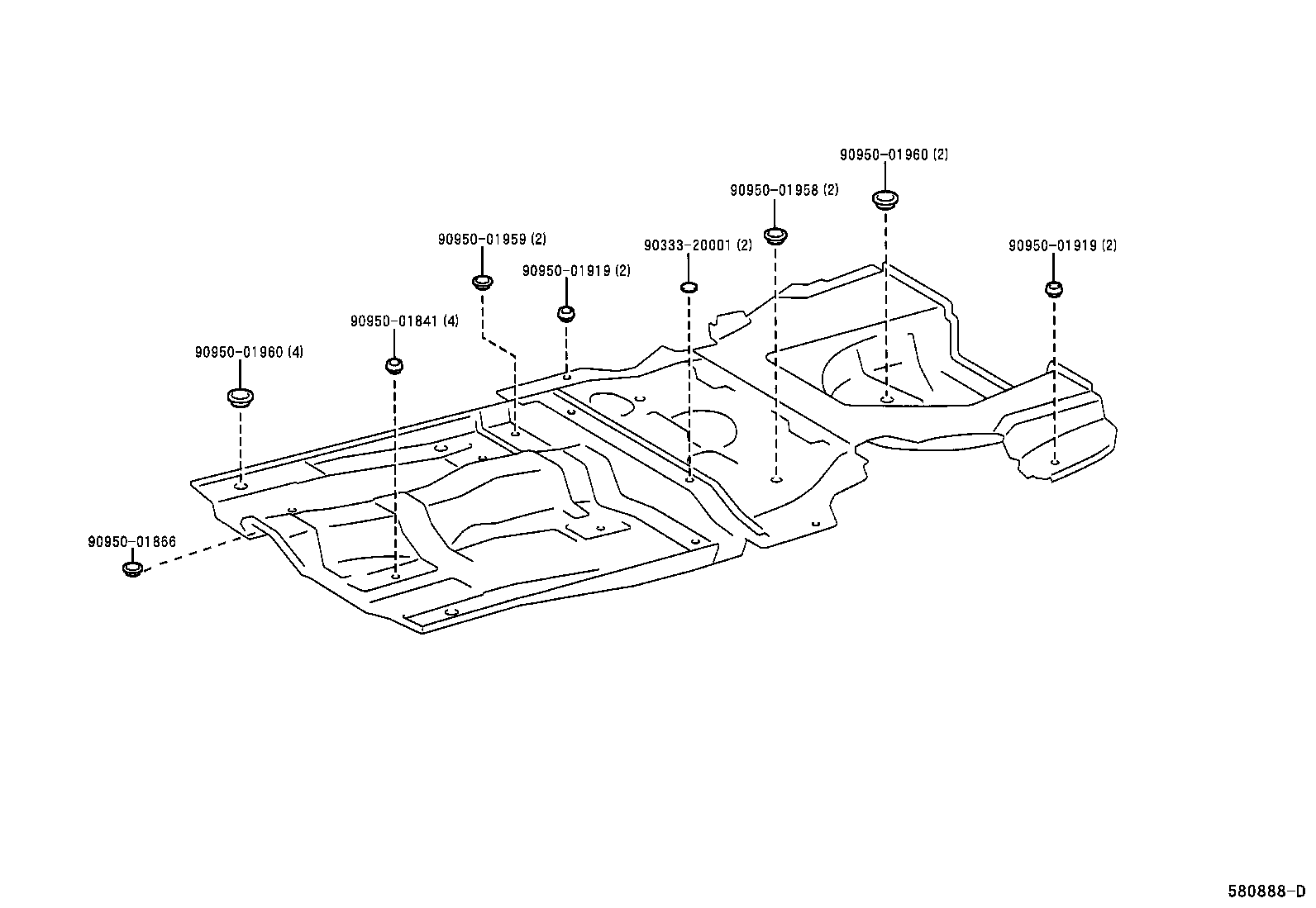

Floor Pan & Lower Back Panel
38 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 57417B | Reinforcement, Front Floor Under |
| 57475C | Plate, Front Floor Crossmember |
| 57535 | Brace, Front Floor, RH |
| 57536 | Brace, Front Floor, LH |
| 57663C | Member, Rear Floor Cross, Center |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58111 | Pan, Front Floor |
| 58115 | Reinforcement, Front Floor Panel, Front |
| 58118B | Reinforcement, Front Floor Panel, NO.2 |
| 58136 | Cover, Front Floor Hole |
| 58171 | Reinforcement, Parking Brake Base |
| 58191 | Footrest, Front Floor |
| 58198 | Clip, Footrest |
| 58199A | Clip, Footrest, NO.2 |
| 58208 | Pan, Center Floor |
| 58215B | Bracket, Rear Seat Mounting, RH |
| 58225A | Bracket, Center Mounting |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58245A | Bracket, Rear Seat Hinge, Center NO.1 |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248 | Reinforcement, Rear Seat Cushion Lock |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58251B | Brace, Floor Panel, Front |
| 58273A | Reinforcement, Belt Anchor TO Center Floor, RH |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58308 | Panel Sub-assy, Body Lower Back, Inner |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58341C | Bracket, Rear Absorber Mounting, NO.1 RH |
| 58342C | Bracket, Rear Absorber Mounting, NO.1 LH |
| 58369B | Bracket, Fuel Tube, NO.3 |
| 58791B | Carrier, Jack |
| 75121B | Bracket, Rear License Plate |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
