Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01

Inside Trim Board & Door Opening Trim Moulding

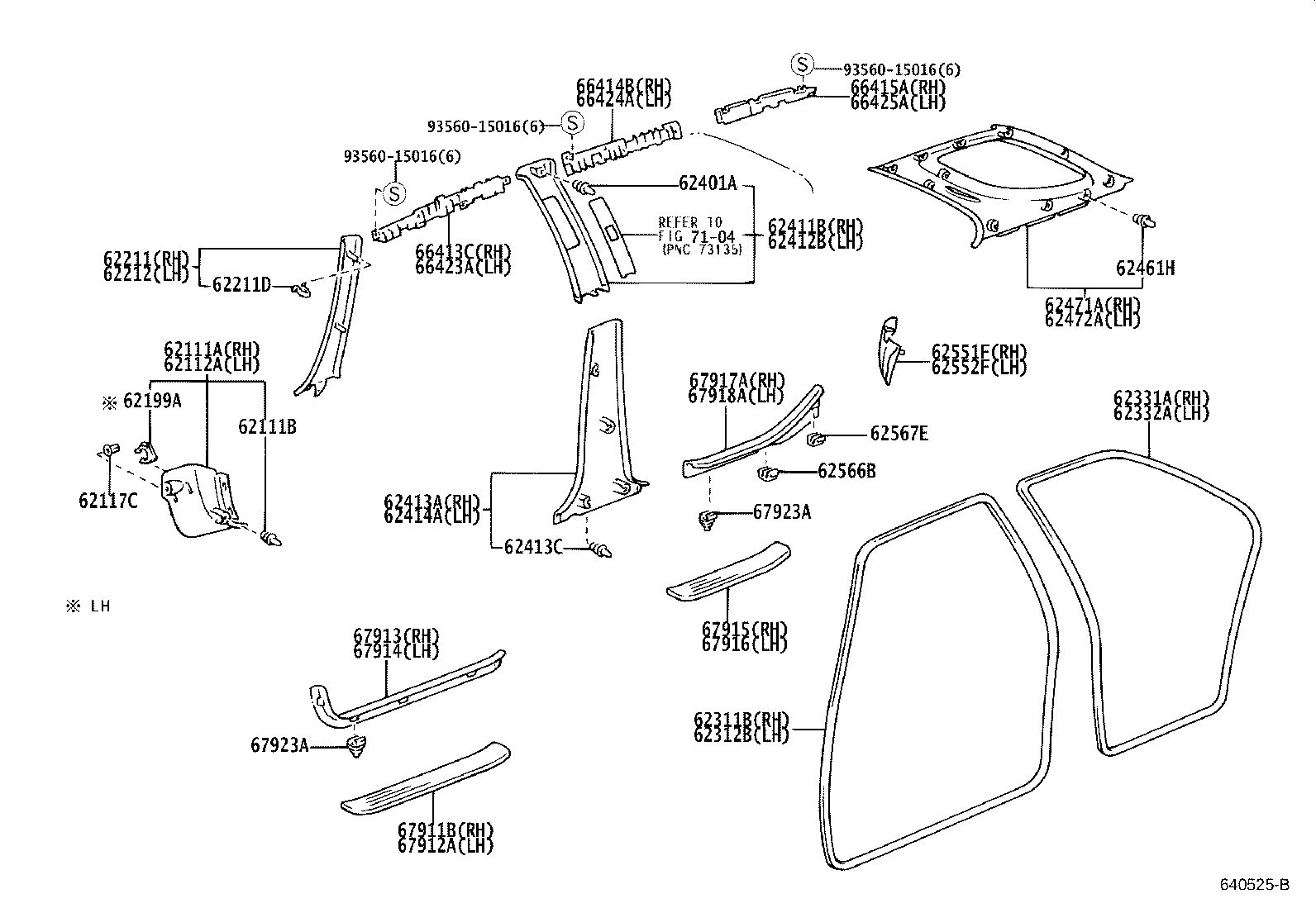

40 part groups · 2 illustrations

PNC	Description
62111A	Trim Sub-assy, Cowl Side, RH
62111B	Clip(FOR COWL SIDE TRIM)
62112A	Trim Sub-assy, Cowl Side, LH
62117C	Clip, NO.2(FOR COWL SIDE TRIM)
62199A	Holder, Fusee
62211	Garnish, Front Pillar, RH
62211D	Clip(FOR FRONT BODY PILLAR GARNISH)
62212	Garnish, Front Pillar, LH
62311B	Weatherstrip, Front Door Opening Trim, RH
62312B	Weatherstrip, Front Door Opening Trim, LH
62331A	Weatherstrip, Rear Door Opening Trim, RH
62332A	Weatherstrip, Rear Door Opening Trim, LH
62401A	Clip (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411B	Garnish, Center Pillar, Upper RH
62412B	Garnish, Center Pillar, Upper LH
62413A	Garnish, Center Pillar, Lower RH
62413C	Clip (FOR CENTER LOWER GARNISH)
62414A	Garnish, Center Pillar, Lower LH
62461H	Clip (FOR ROOF SIDE INNER GARNISH)
62471A	Garnish, Roof Side, Inner RH
62472A	Garnish, Roof Side, Inner LH
62551F	Garnish, Rear Seat Side, RH
62552F	Garnish, Rear Seat Side, LH
62566B	Clamp, Rocker Panel Inner Protecter, NO.1
62567E	Clamp, Rocker Panel Inner Protector, NO.2
66413C	Spacer, Side Rail, Front RH
66414B	Spacer, Side Rail, Rear RH
66415A	Spacer, Side Rail, Rear NO.2 RH
66423A	Spacer, Side Rail, Front LH
66424A	Spacer, Side Rail, Rear LH
66425A	Spacer, Side Rail, Rear NO.2 LH
67911B	Plate, Front Door Scuff, Outside, RH
67912A	Plate, Front Door Scuff, Outside LH
67913	Plate, Front Door Scuff, RH
67914	Plate, Front Door Scuff, LH
67915	Plate, Rear Door Scuff, Outside RH
67916	Plate, Rear Door Scuff, Outside LH
67917A	Plate, Rear Door Scuff, RH
67918A	Plate, Rear Door Scuff, LH
67923A	Clamp, Door Scuff Plate, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
