Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

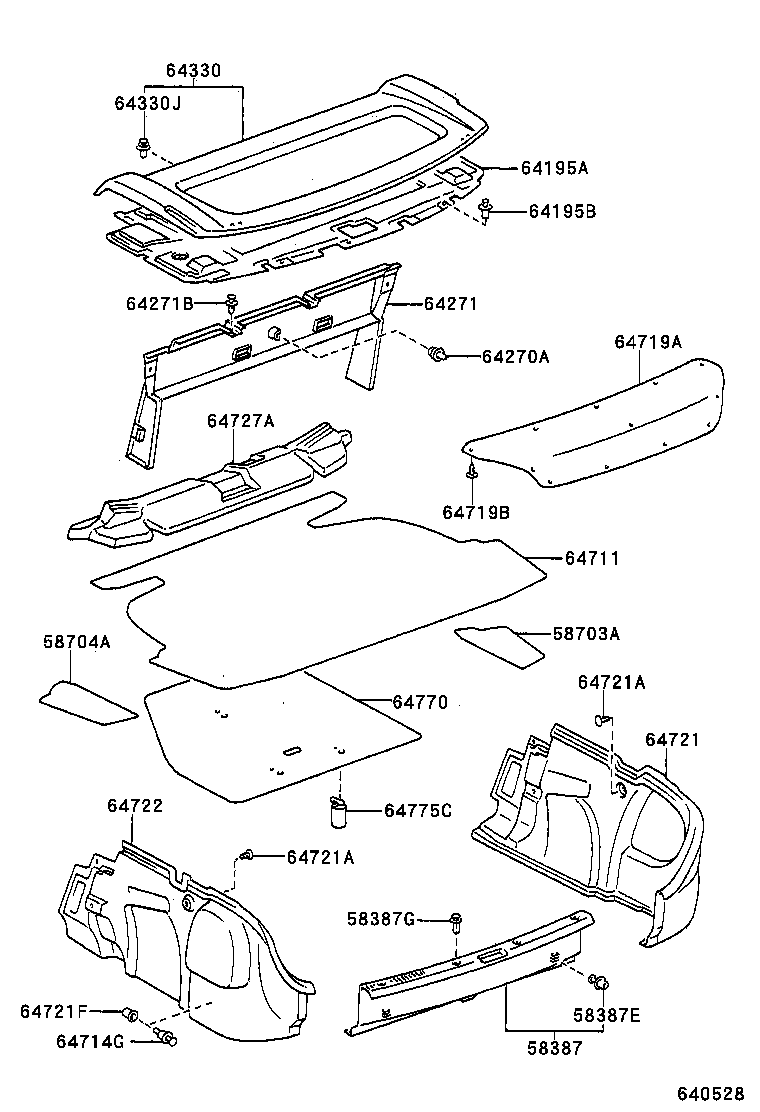

Package Tray Panel & Luggage Compartment Mat
26 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58387 | Plate, Rear Floor Finish |
| 58387E | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58387G | Clip(FOR REAR FLOOR FINISH PLATE) |
| 58703A | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704A | Cover Sub-assy, Luggage Compartment Side, LH |
| 64195A | Insulator, Room Partition Panel |
| 64195B | Clip(FOR ROOM PARTITION PANEL INSULATOR) |
| 64270A | Clip(FOR ROOM PARTITION BOARD SETTING) |
| 64271 | Board, Room Partition, NO.1 |
| 64271B | Clip(FOR ROOM PARTITION BOARD) |
| 64271E | Panel, Room Partition |
| 64330 | Panel Assy, Package Tray Trim |
| 64330J | Clip(FOR PACKAGE TRAY TRIM PANEL) |
| 64711 | Mat, Luggage Compartment Floor |
| 64714G | Clip(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER) |
| 64717A | Cover, Luggage Compartment Trim, Front |
| 64717B | Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER) |
| 64719A | Cover, Luggage Compartment Door |
| 64719B | Clip(FOR LUGGAGE COMPARTMENT DOOR) |
| 64721 | Cover, Luggage Compartment Trim, Inner RH |
| 64721A | Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER) |
| 64721F | Cap, Door Trim Retainer |
| 64722 | Cover, Luggage Compartment Trim, Inner LH |
| 64727A | Pad, Luggage Compartment Trim, Inner |
| 64770 | Cover Assy, Spare Wheel |
| 64775C | Support, Spare Wheel Cover |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
