Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01

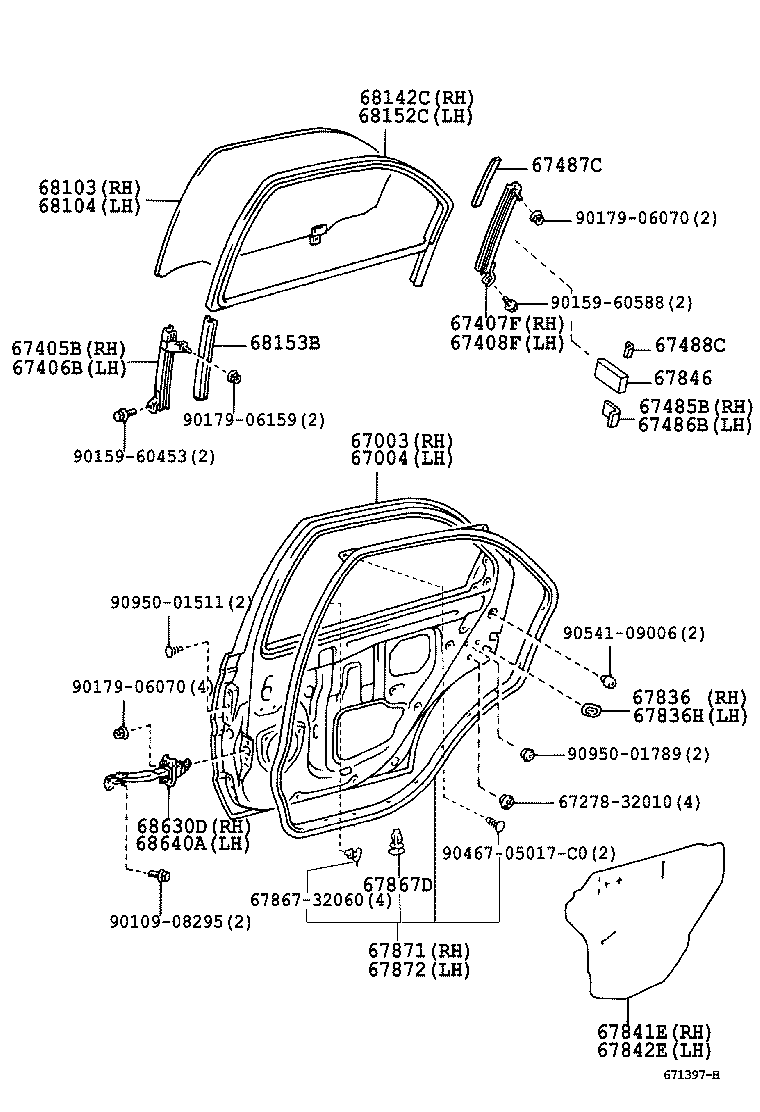

Rear Door Panel & Glass

37 part groups · 2 illustrations

PNC	Description
67003	Panel Sub-assy, Rear Door, RH
67004	Panel Sub-assy, Rear Door, LH
67405B	Guide Sub-assy, Rear Door Window, Front RH
67406B	Guide Sub-assy, Rear Door Window, Front LH
67407F	Frame Sub-assy, Rear Door Window, Rear Lower RH
67408F	Frame Sub-assy, Rear Door Window, Rear Lower LH
67485B	Seal, Rear Door Division Bar, Inside, RH
67486B	Seal, Rear Door Division Bar, Inside, LH
67487C	Seal, Rear Door Rear Guide, RH
67488C	Seal, Rear Door Rear Guide, LH
67499A	Retainer, Rear Door Lower Frame Bracket Garnish
67603	Board Sub-assy, Rear Door Trim, RH
67603D	Retainer, Rear Door Trim, RH
67604	Board Sub-assy, Rear Door Trim, LH
67604D	Retainer, Rear Door Trim, LH
67627	Bracket, Rear Door Trim, RH
67628	Bracket, Rear Door Trim, LH
67673A	Garnish, Rear Door Frame, RH
67674A	Garnish, Rear Door Frame, LH
67772F	Cap, Rear Door Trim Retainer
67836	Cover, Rear Door Lock Child Protection, RH
67836H	Cover, Rear Door Lock Child Protection, LH
67841E	Cover, Rear Door Service Hole, RH
67842E	Cover, Rear Door Service Hole, LH
67846	Seal, Rear Door Service Hole
67867D	Retainer, Rear Door Weatherstrip, RH
67871	Weatherstrip, Rear Door, RH
67872	Weatherstrip, Rear Door, LH
68103	Glass Sub-assy, Rear Door, RH
68104	Glass Sub-assy, Rear Door, LH
68142C	Run, Rear Door Glass, RH
68152C	Run, Rear Door Glass, LH
68153B	Run, Rear Door Window, Lower
68173B	Weatherstrip, Rear Door Glass, Inner RH
68174A	Weatherstrip, Rear Door Glass, Inner LH
68630D	Check Assy, Rear Door, RH
68640A	Check Assy, Rear Door, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
