Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

18 part groups · 2 illustrations

Illustrations

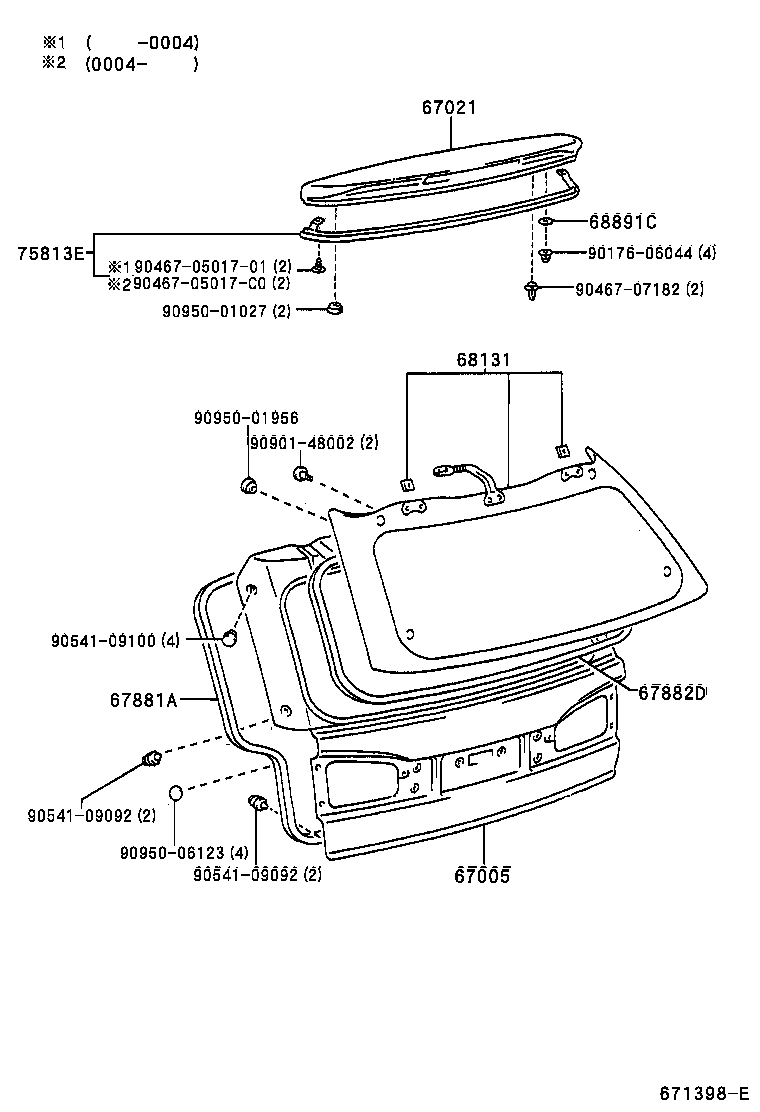

Figure 671393A 671393A 1998-06 → — Figure 671398E 671398E 1998-06 → —

Part groups

PNCDescription
64708B Clip, Back Door Trim
64769E Knob, Jack Cover
64798 Cover, Back Door Lock
67005 Panel Sub-assy, Back Door
67021 Panel Sub-assy, Back Door, Upper Outer
67750 Board Assy, Back Door Trim
67750A Clip(FOR BACK DOOR TRIM)
67751A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
67882D Weatherstrip, Back Door, NO.2
67937B Garnish, Back Door Side, RH
67937C Clip(FOR BACK DOOR SIDE GARNISH)
67938A Garnish, Back Door Side, LH
67939B Garnish, Back Door, Center
68131 Glass, Back Door
68891C Packing, Back Door Hinge Male
74811D Handle, Door Pull
75813E Moulding, Back Door, Outside Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
