Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

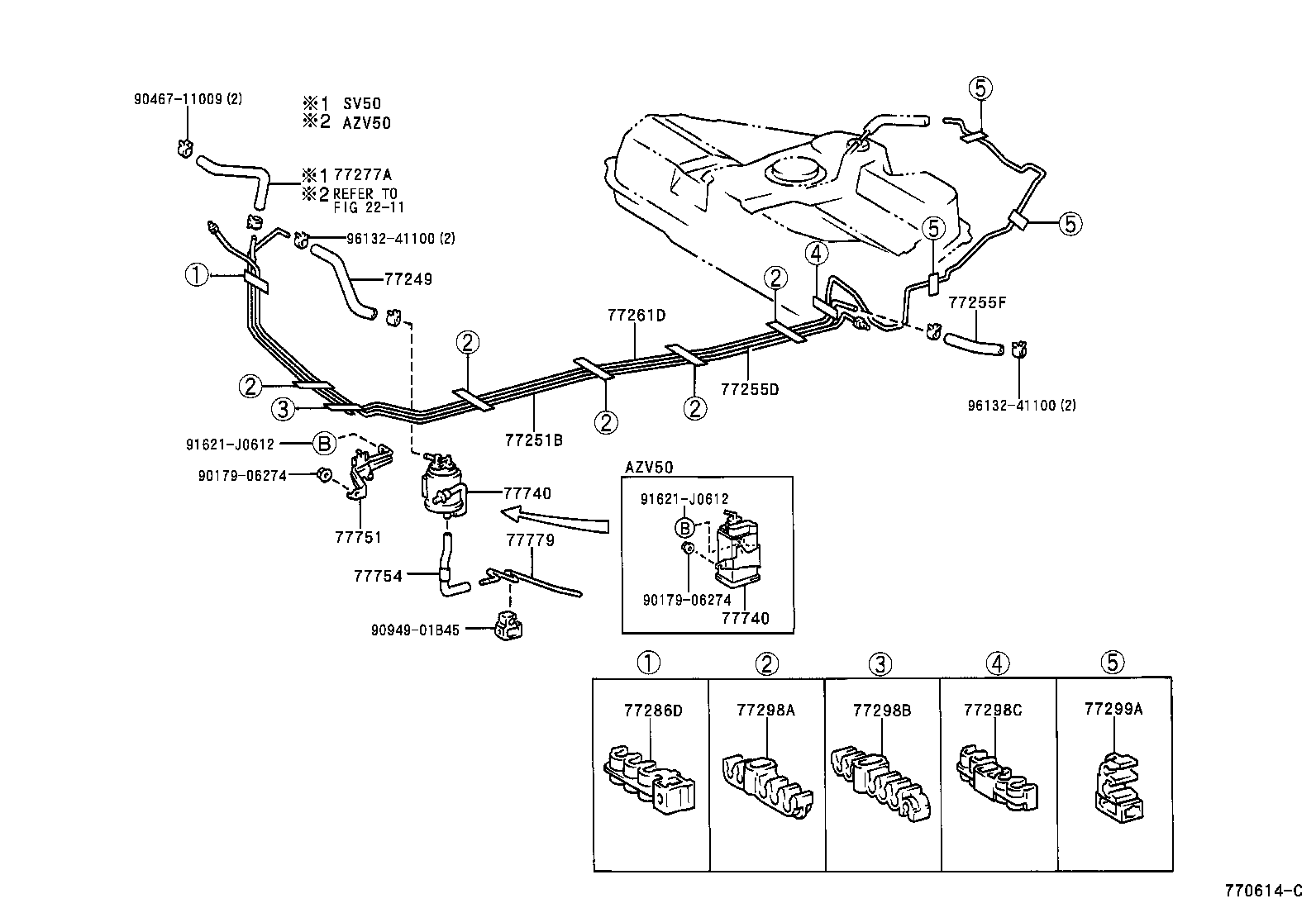

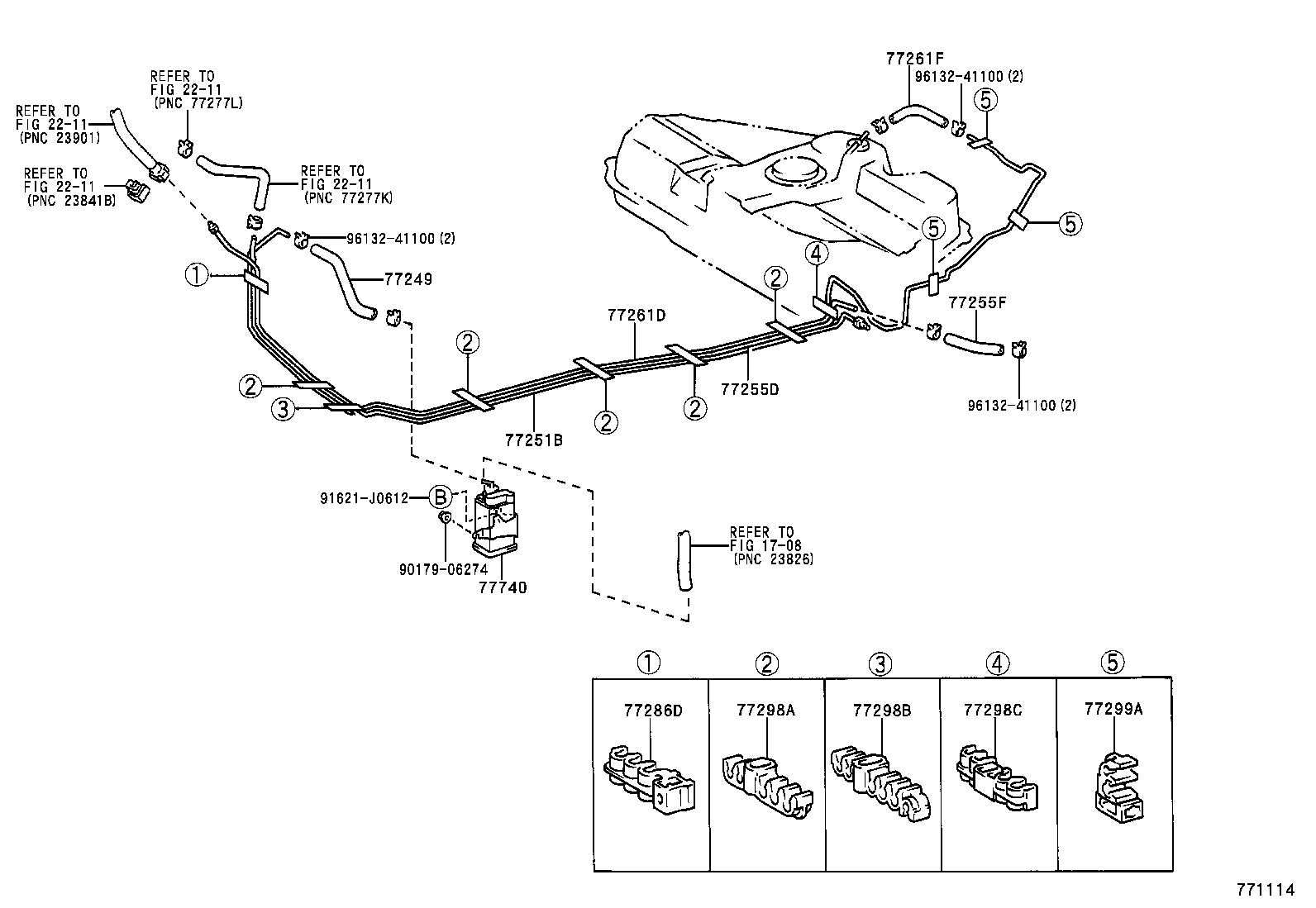

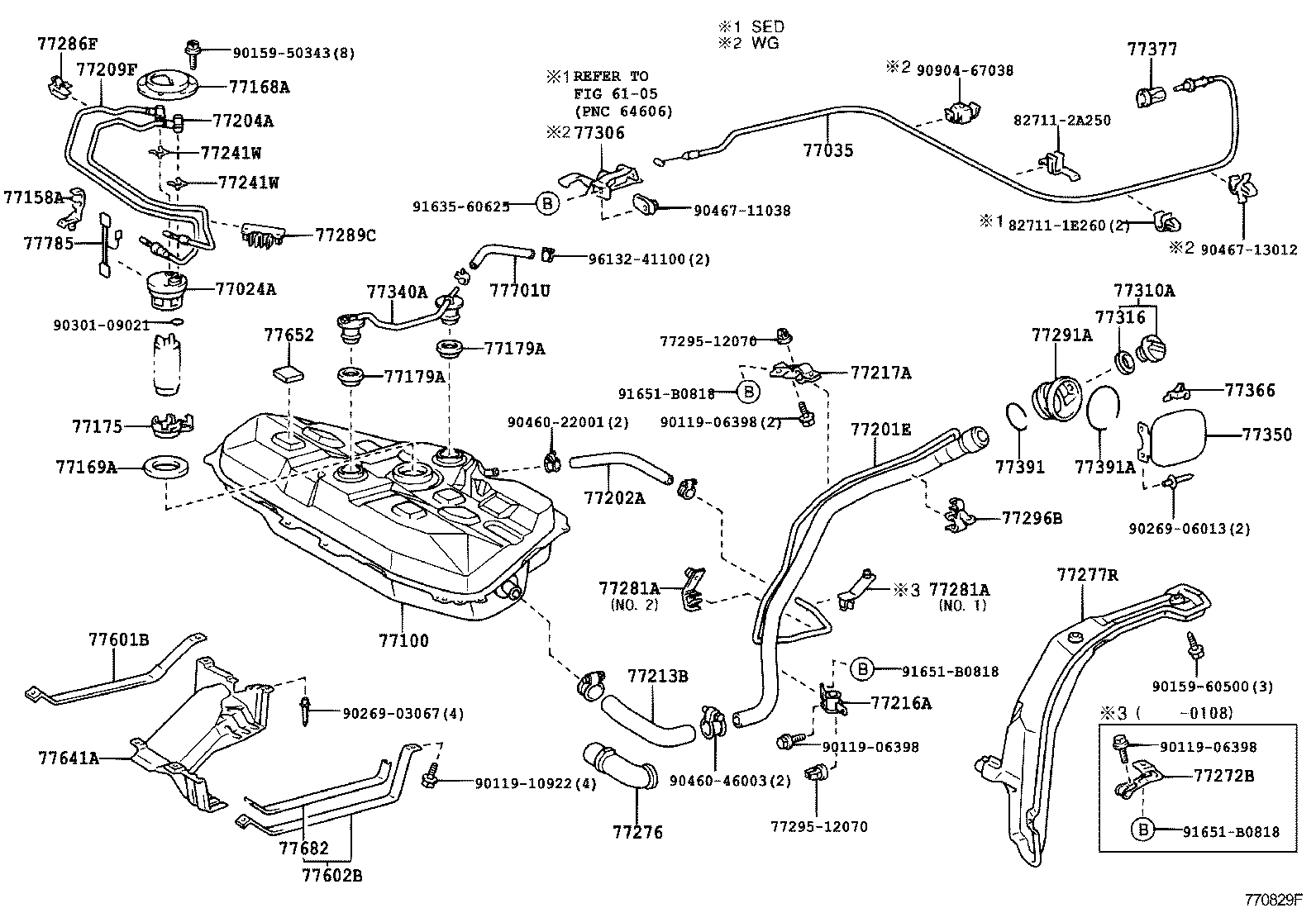

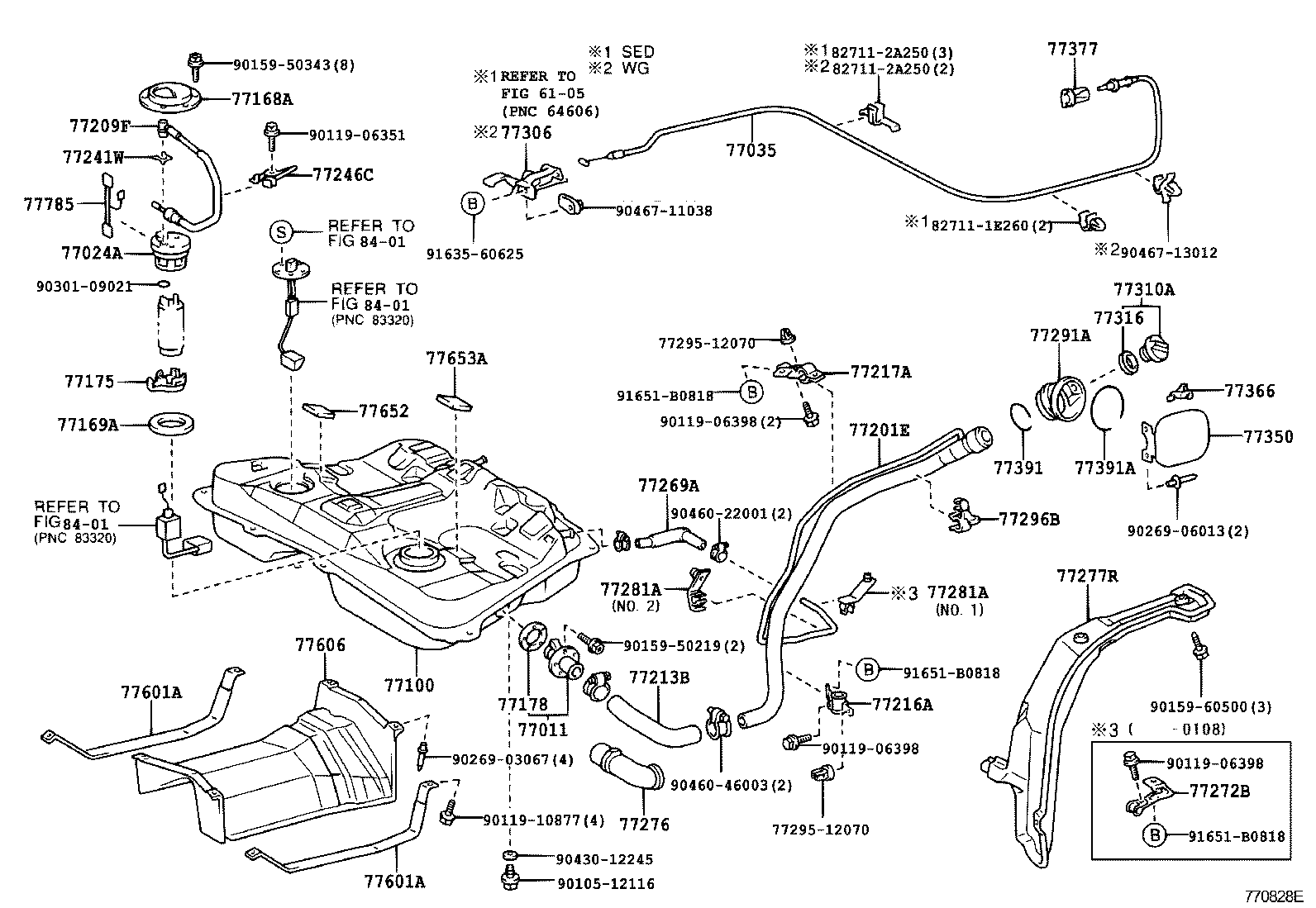

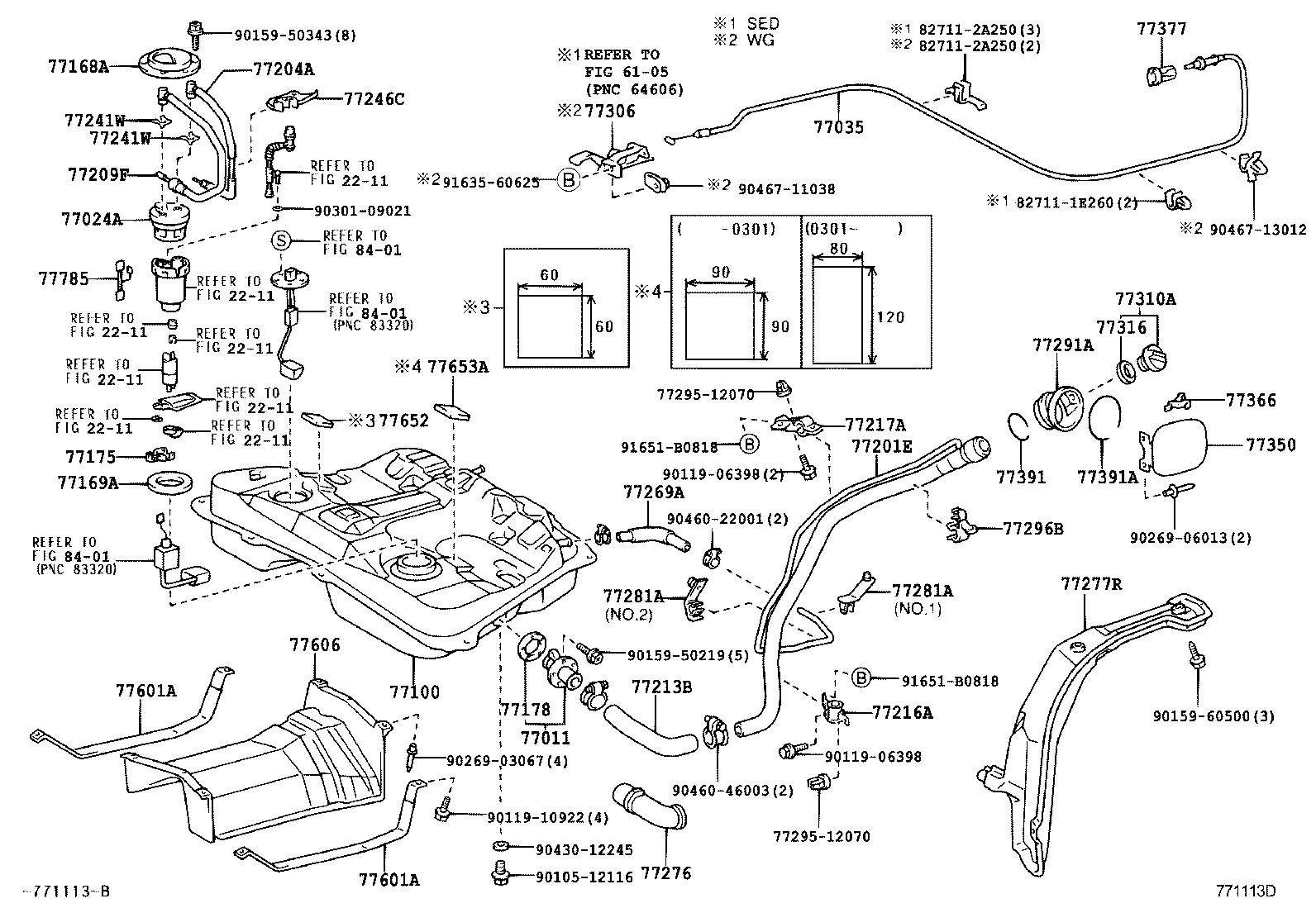

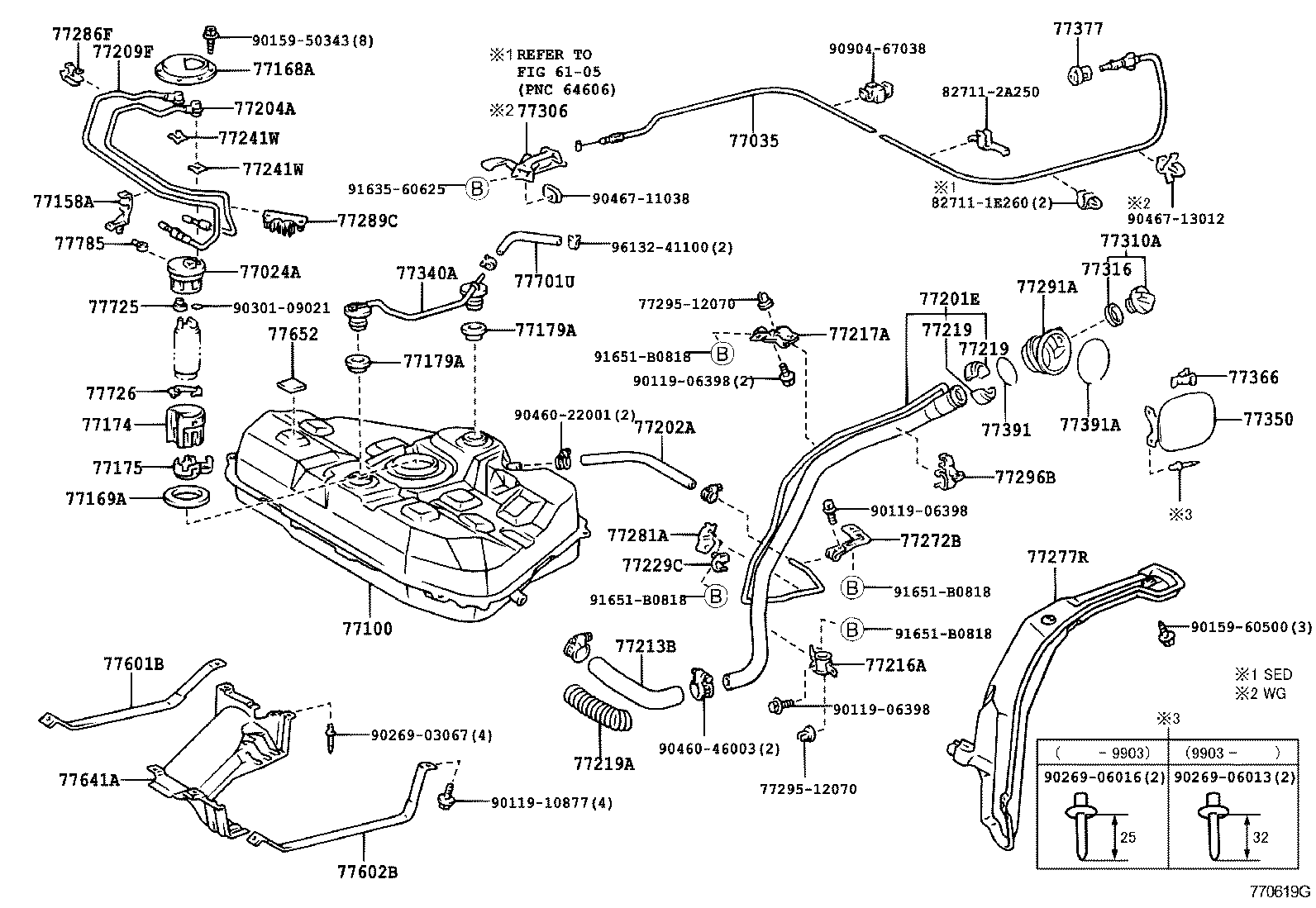

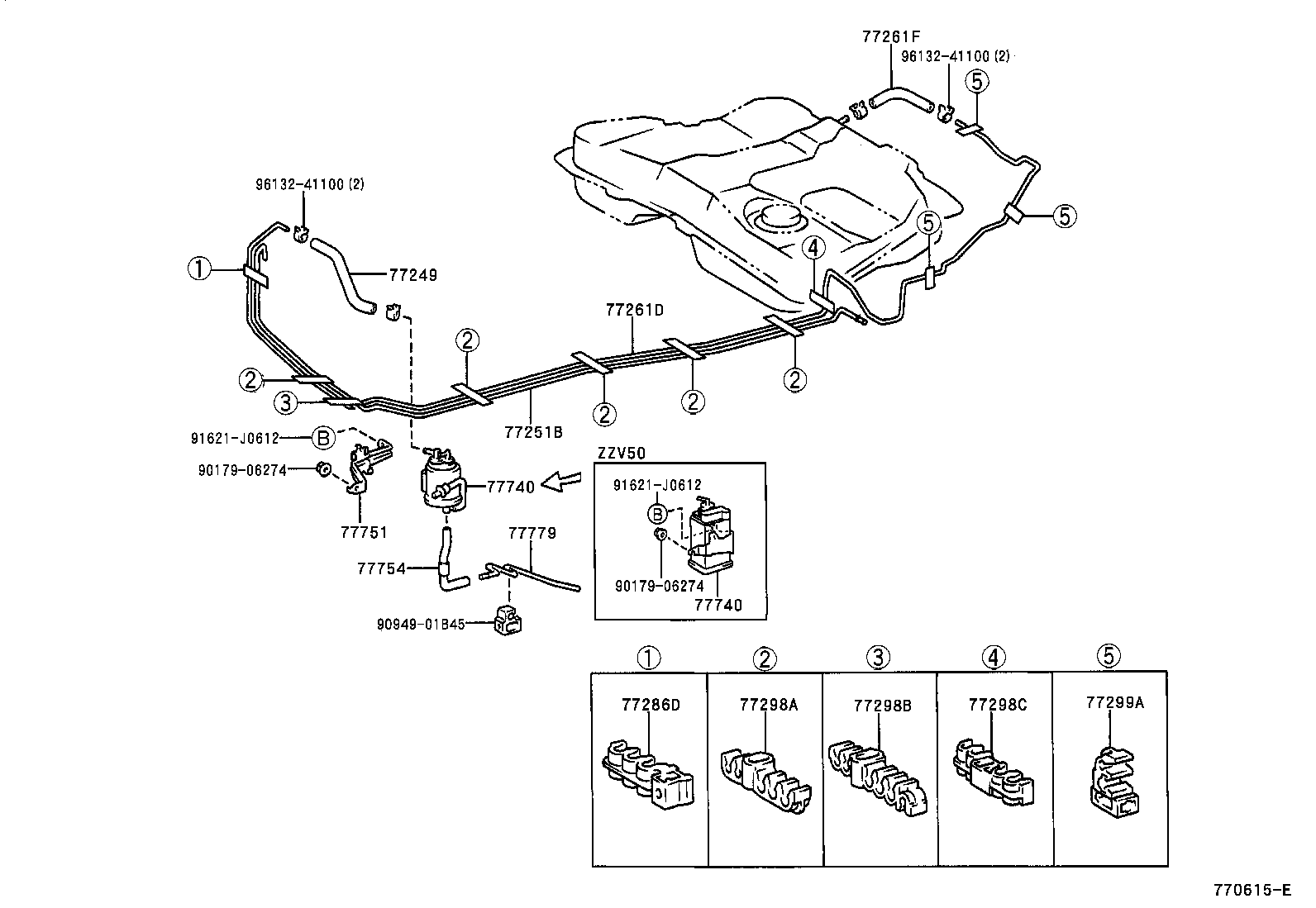

Fuel Tank & Tube
69 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 77011 | Pipe Sub-assy, Fuel Tank Filler, Lower |
| 77024A | Plate Sub-assy, Fuel Suction |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77158A | Support, Tank Suction Tube |
| 77168A | Plate, Fuel Tank Vent Tube Set |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77174 | Support, Fuel Suction, NO.1 |
| 77175 | Support, Fuel Suction, NO.2 |
| 77178 | Gasket, Fuel Tank Filler Pipe, Lower |
| 77179A | Gasket, Fuel Tank Breather Tube |
| 77201E | Pipe Sub-assy, Fuel Tank Filler |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77204A | Tube, Fuel Tank Return |
| 77209F | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77219 | Cover, Fuel Tank Filler Pipe |
| 77219A | Cover, Fuel Tank Filler Pipe |
| 77229C | Clamp, Breather Tube |
| 77241W | Clip, Tube Joint |
| 77246C | Support, Fuel Main Tube |
| 77249 | Hose, Fuel Emission |
| 77251B | Tube, Fuel Main |
| 77255D | Tube, Fuel Return |
| 77255F | Hose, Fuel, NO.2 (FOR FUEL RETURN TUBE) |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261F | Hose, Fuel, NO.2 (FOR FUEL TANK TO CANISTER TUBE) |
| 77269A | Hose, Fuel Tank Breather |
| 77272B | Support, Breather Tube, NO.1 |
| 77276 | Protector, Fuel Hose |
| 77277A | Hose, Fuel, NO.1(FOR RETURN TUBE, NO.1) |
| 77277R | Protector, Fuel Tank Filler Pipe |
| 77281A | Clamp, Fuel Filler Pipe |
| 77286D | Clamp, Fuel Tube, NO.2 |
| 77286F | Clamp, Fuel Tube, NO.2 |
| 77289C | Clamp, Fuel Tube, NO.4 |
| 77291A | Shield, Fuel Tank Filler Pipe |
| 77296B | Support, Fuel Tube Protector, NO.1 |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77299A | Clamp, Fuel Tube, NO.5 |
| 77306 | Lever Sub-assy, Fuel Lid Lock Open |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77340A | Valve Assy, Fuel Cut Off W/Tube |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77601B | Band Sub-assy, Fuel Tank, NO.1 RH |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77606 | Protector Sub-assy, Fuel Tank, NO.1 |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77652 | Cushion, Fuel Tank, NO.1 |
| 77653A | Cushion, Fuel Tank, NO.3 |
| 77682 | Seat, Fuel Tank Band, LH |
| 77701U | Hose, Fuel (FOR CHECK VALVE) |
| 77725 | Cushion, Fuel Filter, NO.1 |
| 77726 | Cushion, Fuel Filter, NO.2 |
| 77740 | Canister Assy, Charcoal |
| 77751 | Bracket, Charcoal Canister Base |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
| 77779 | Tube, Charcoal Canister Outlet |
| 77785 | Harness, Fuel Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
