Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

10 part groups · 2 illustrations

Illustrations

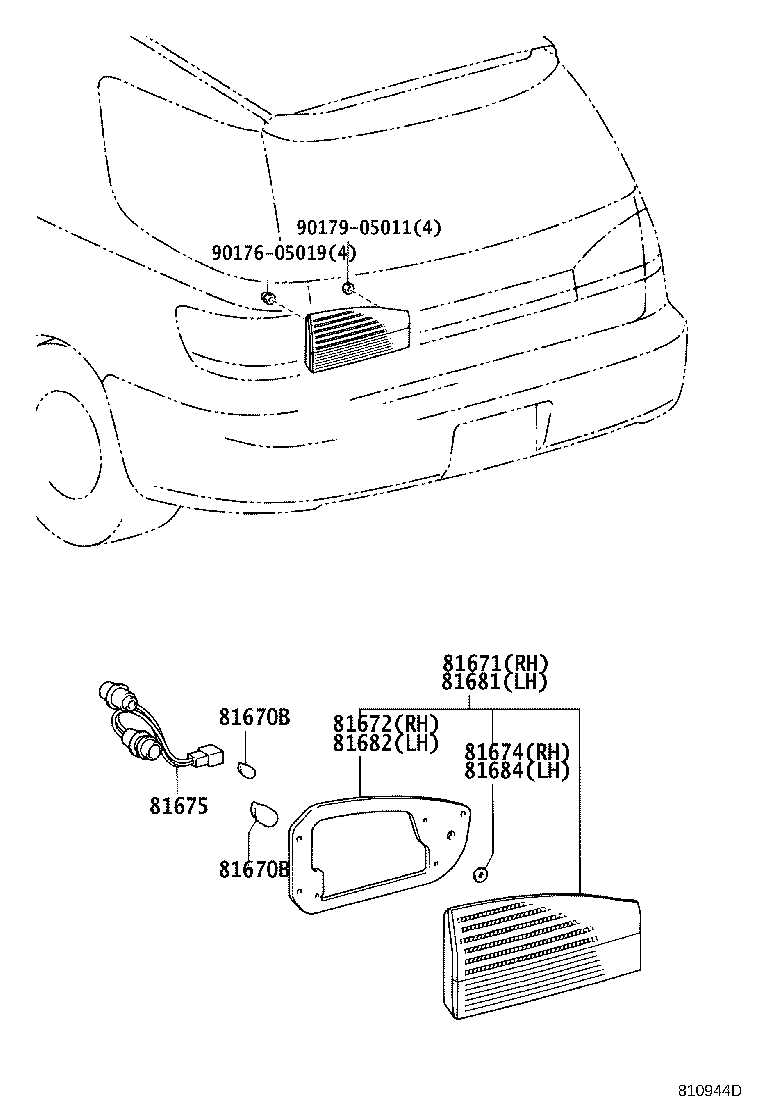

Figure 810943G 810943G 1998-06 → — Figure 810944D 810944D 1998-06 → —

Part groups

PNCDescription
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81674 Gasket, Back-up Lamp Body, RH
81675 Socket & Wire, Back-up Lamp
81678B Protector, Back UP Lamp, RH
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
81684 Gasket, Back UP Lamp Body, LH
81688 Protector, Back UP Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
