Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

34 part groups · 16 illustrations

Illustrations

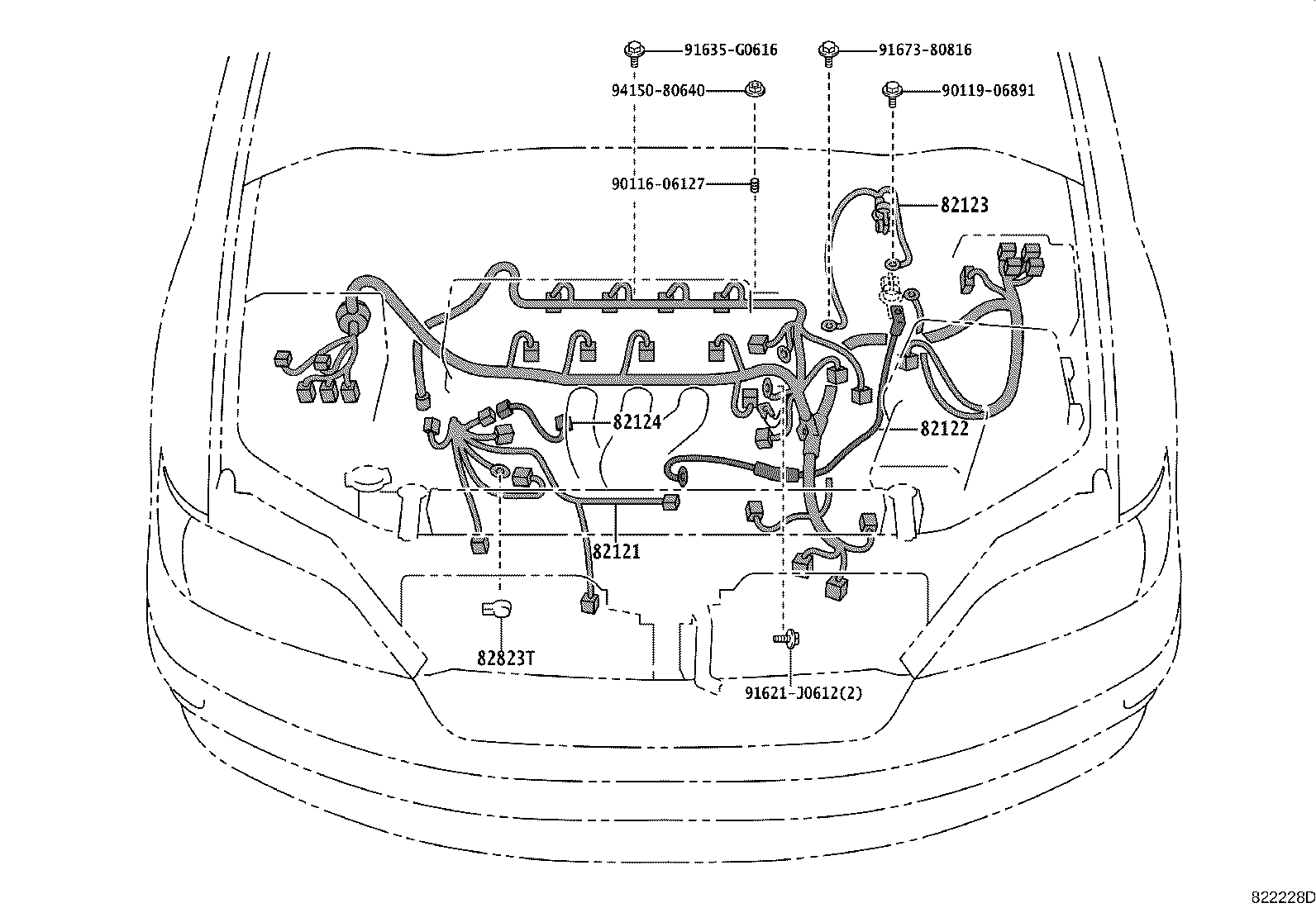

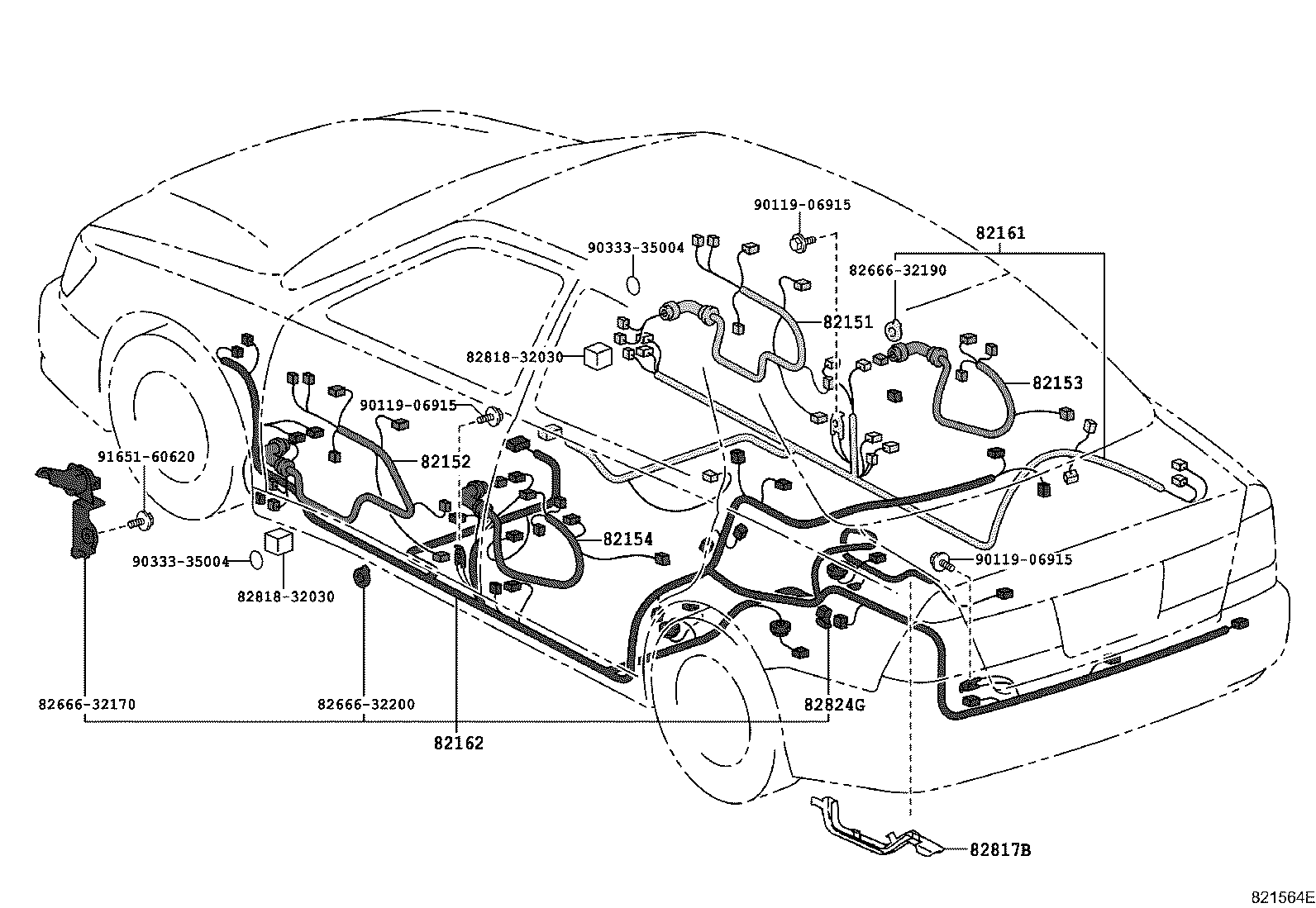

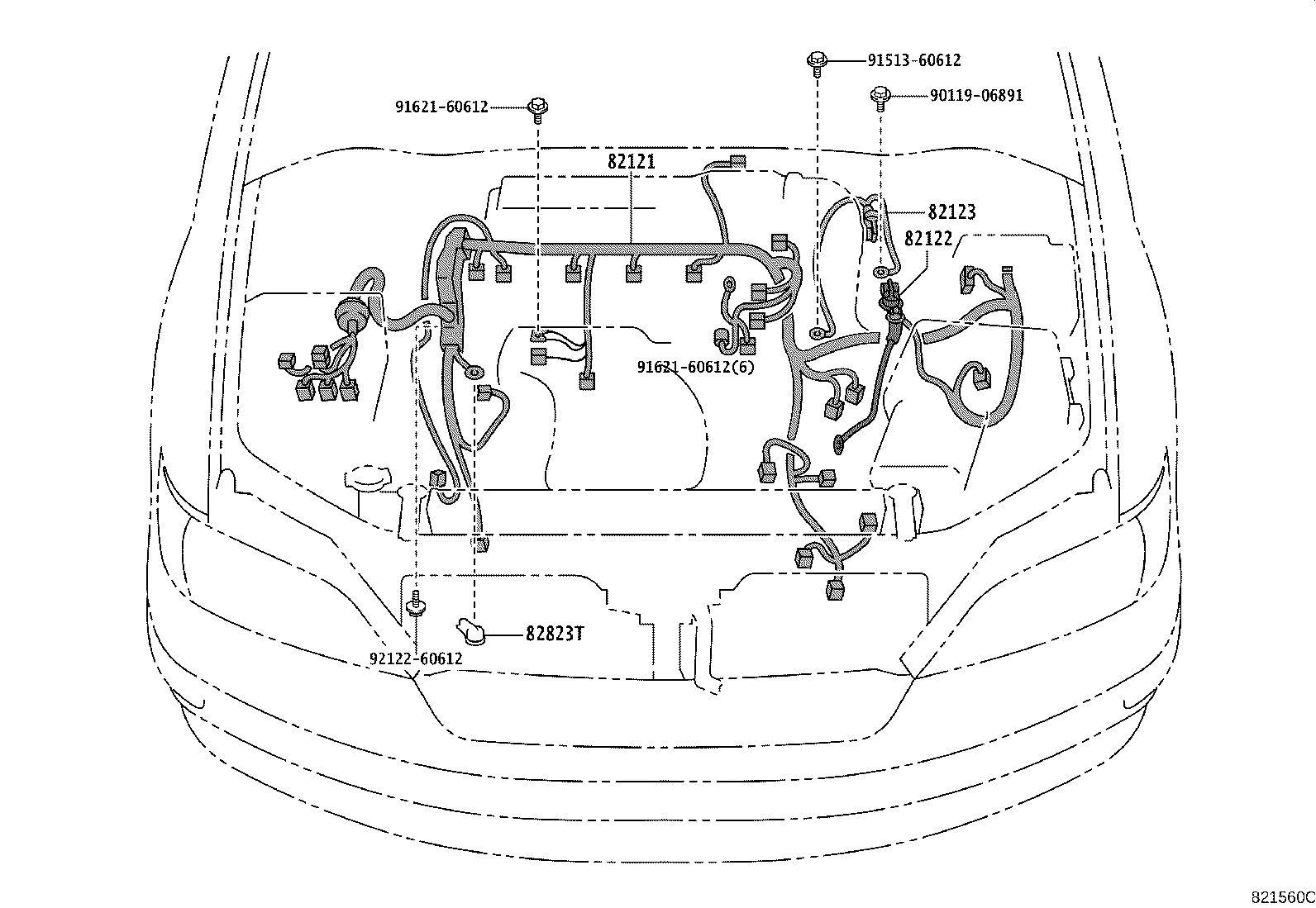

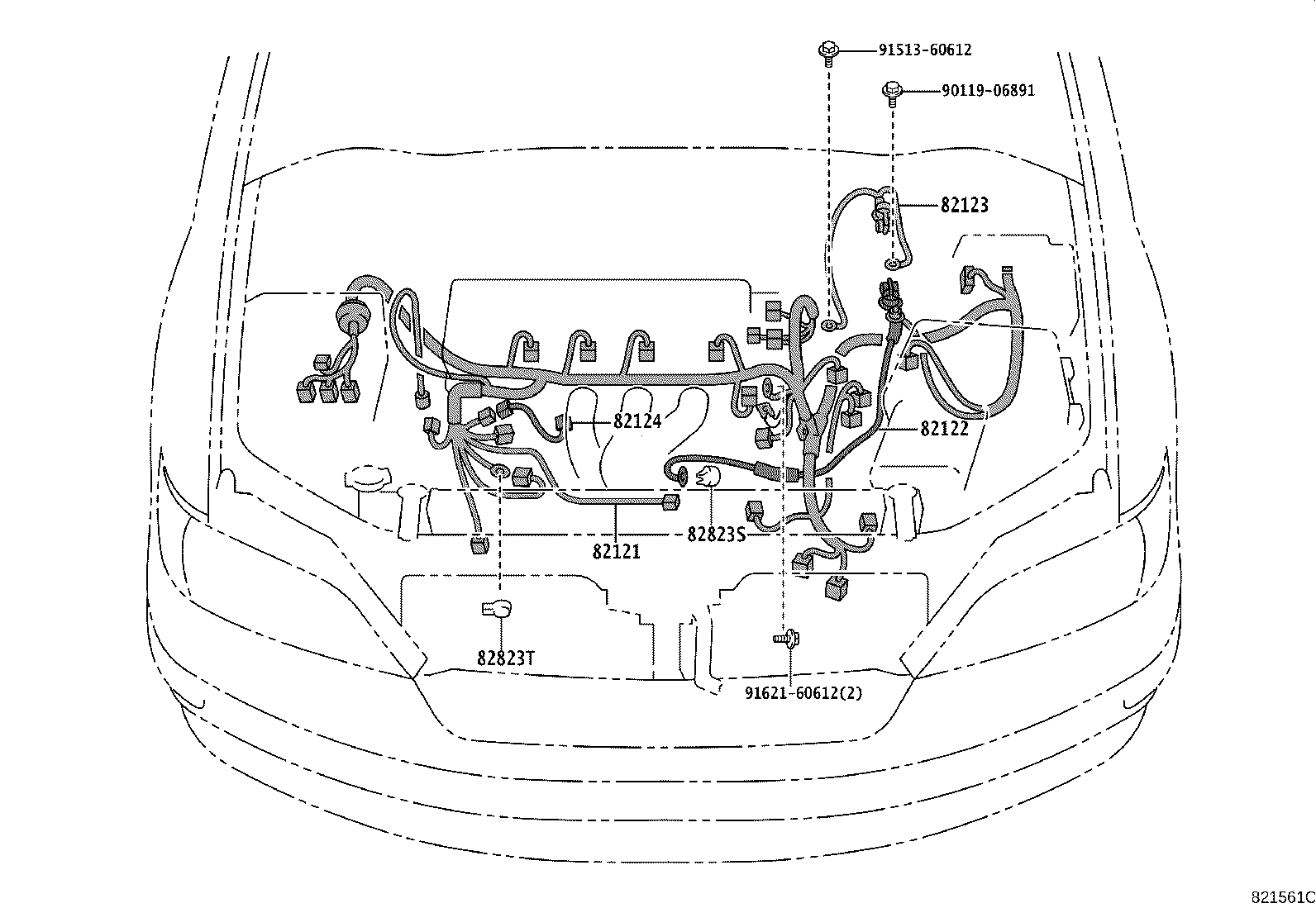

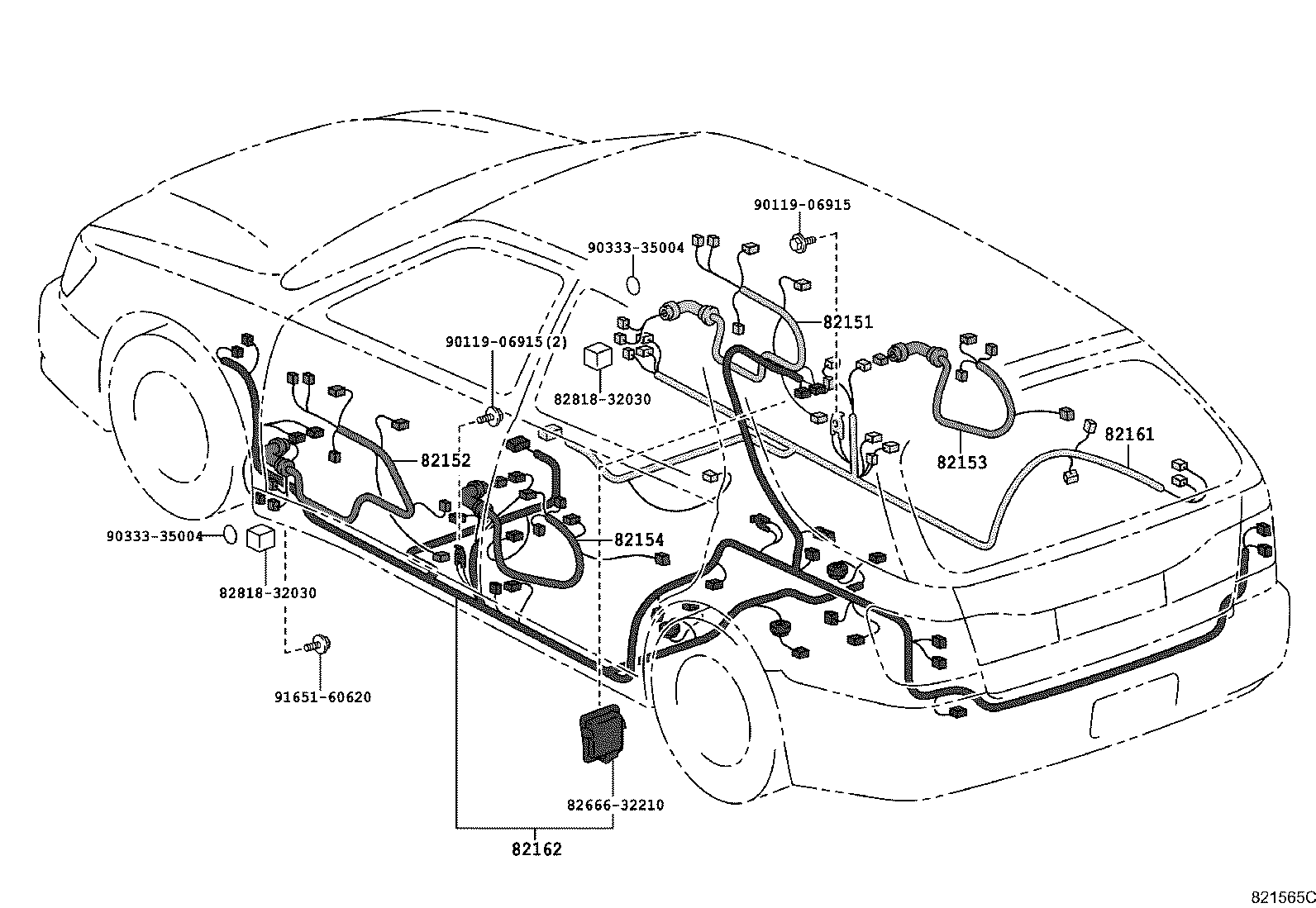

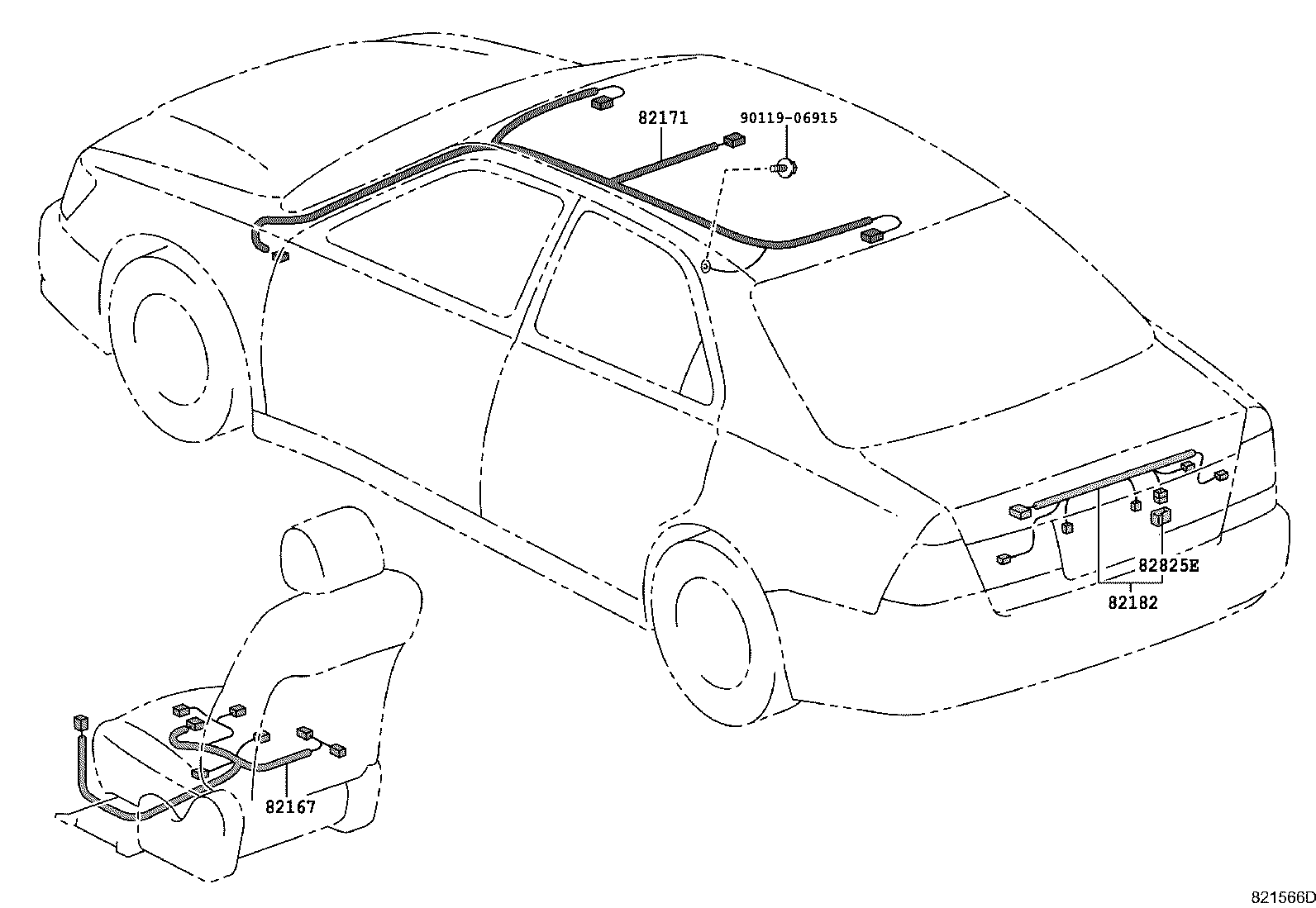

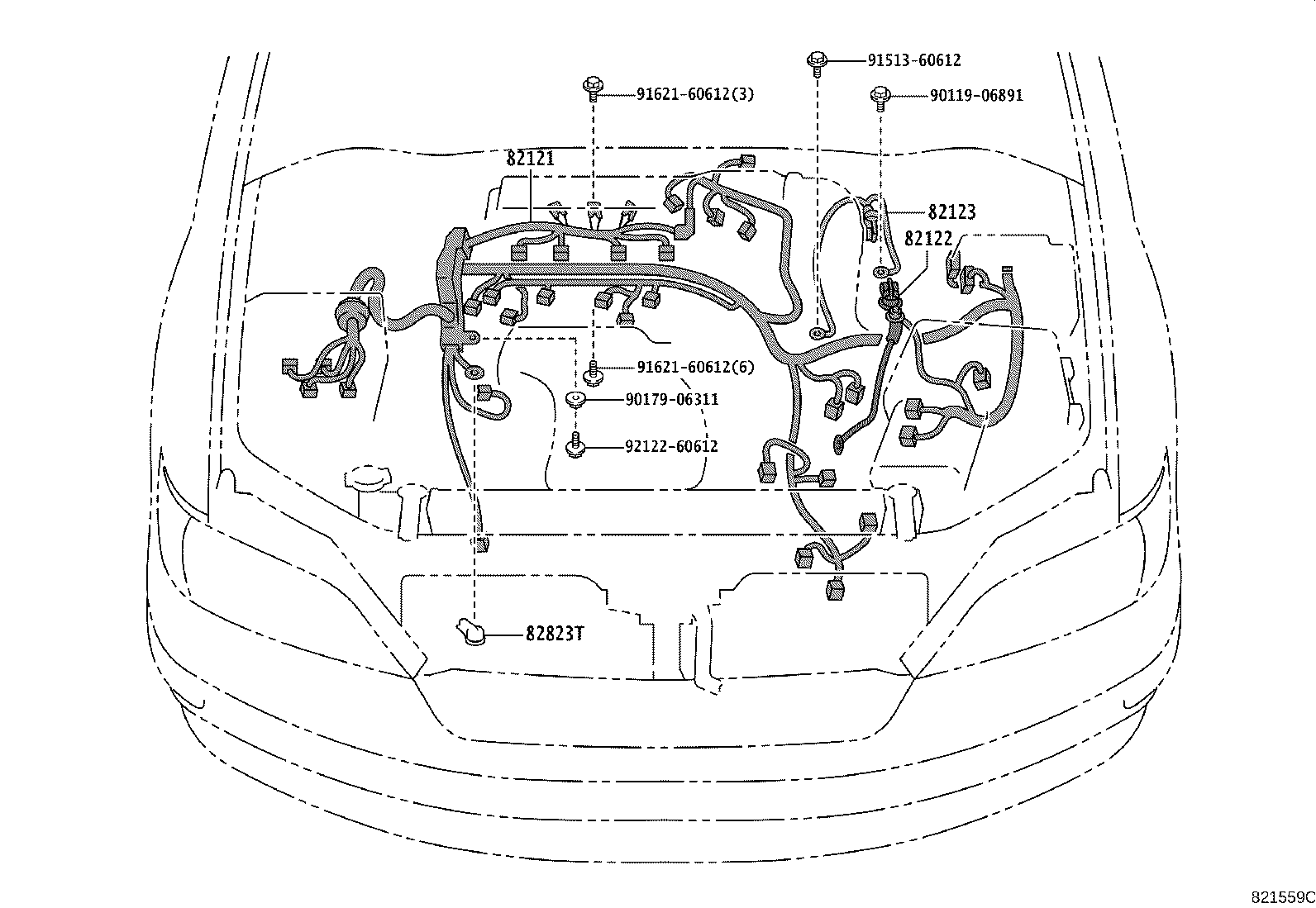

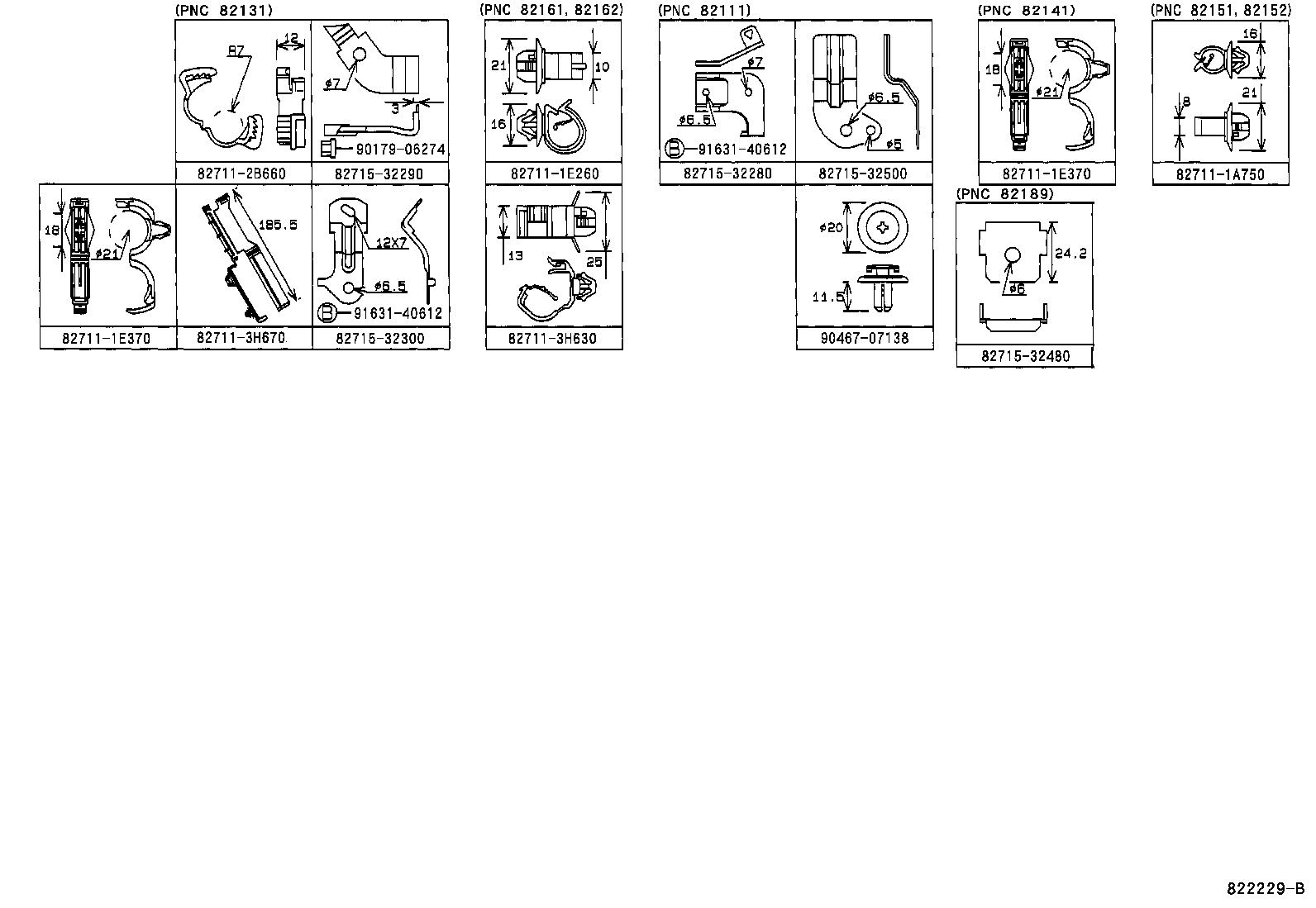

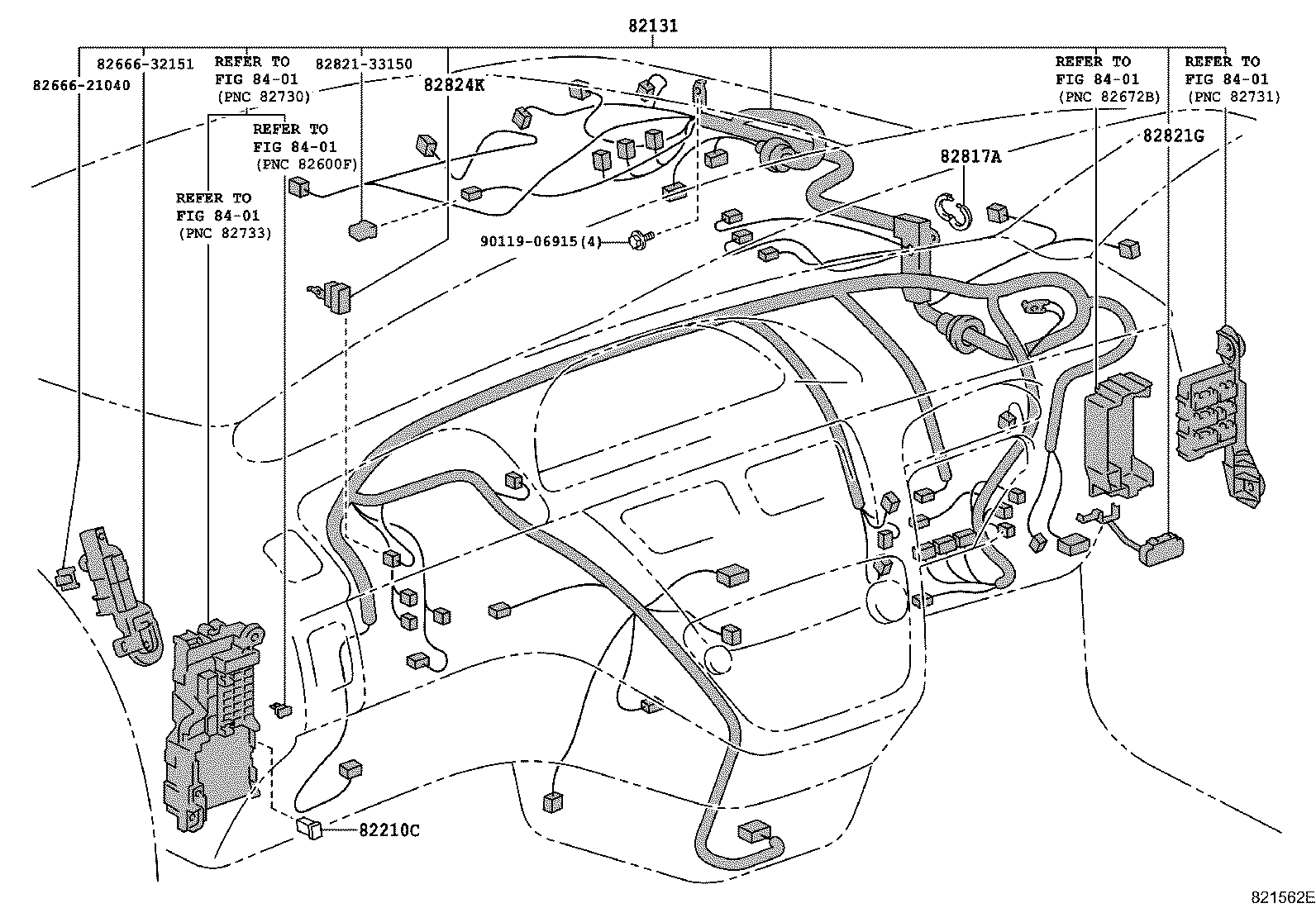

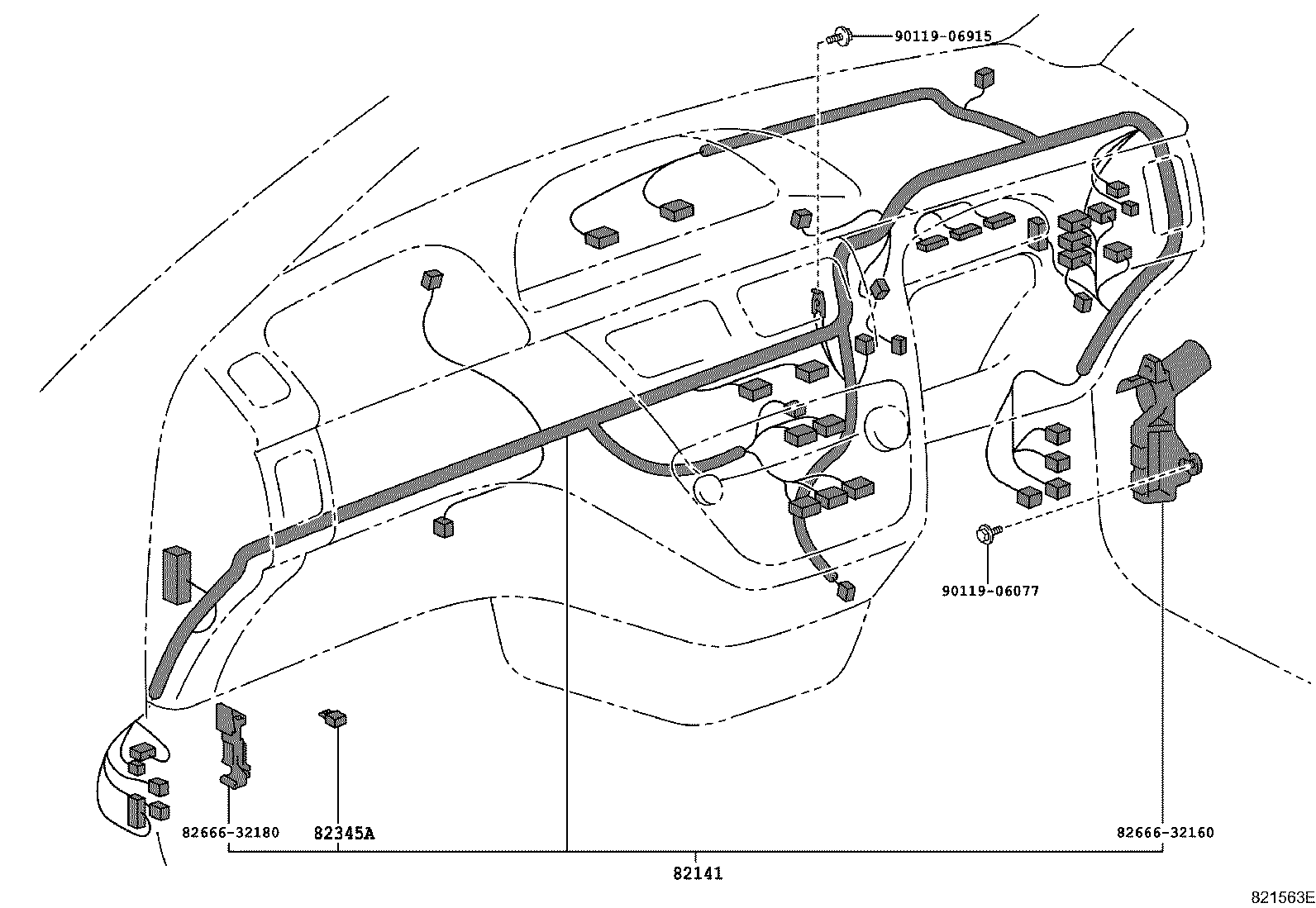

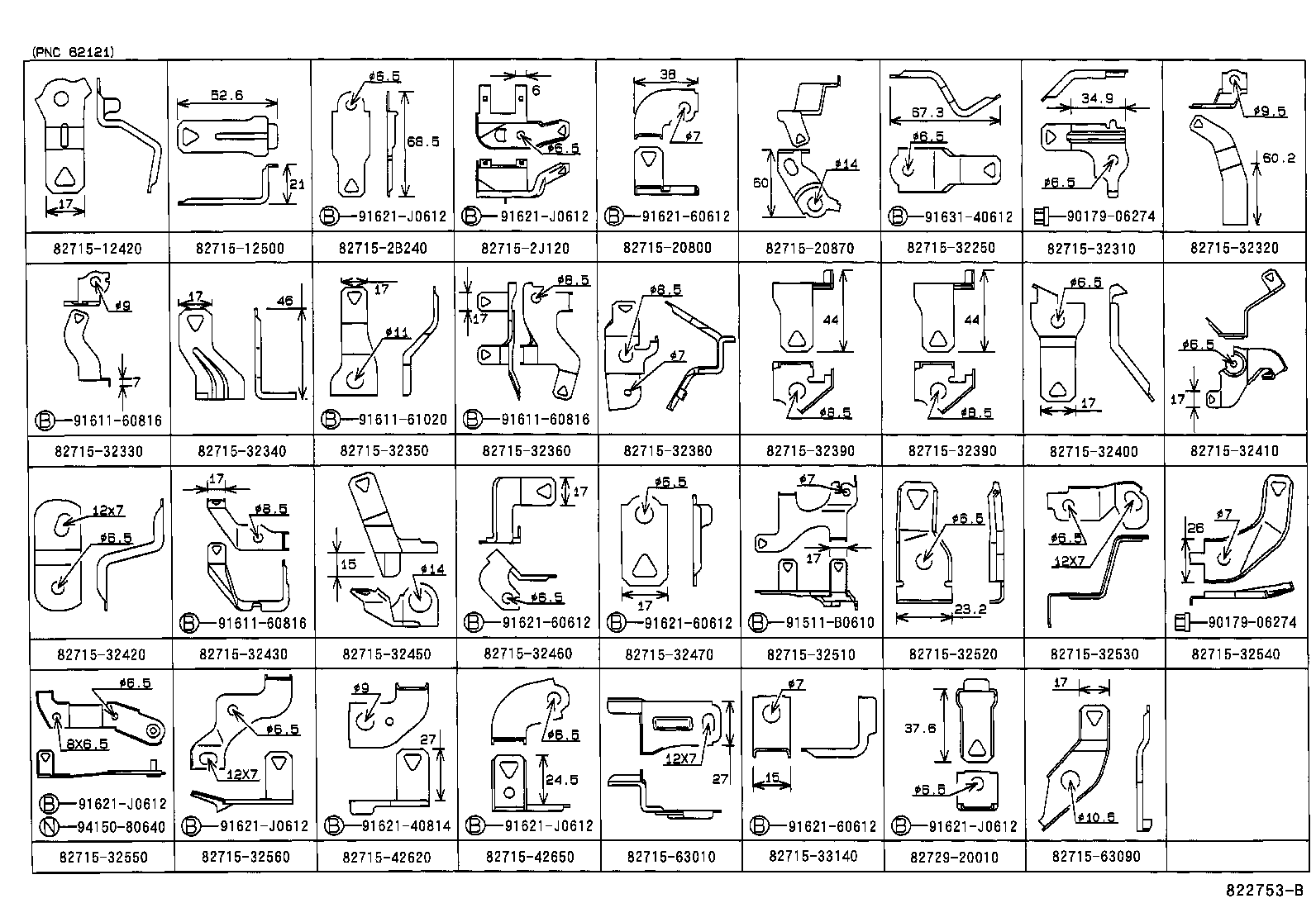

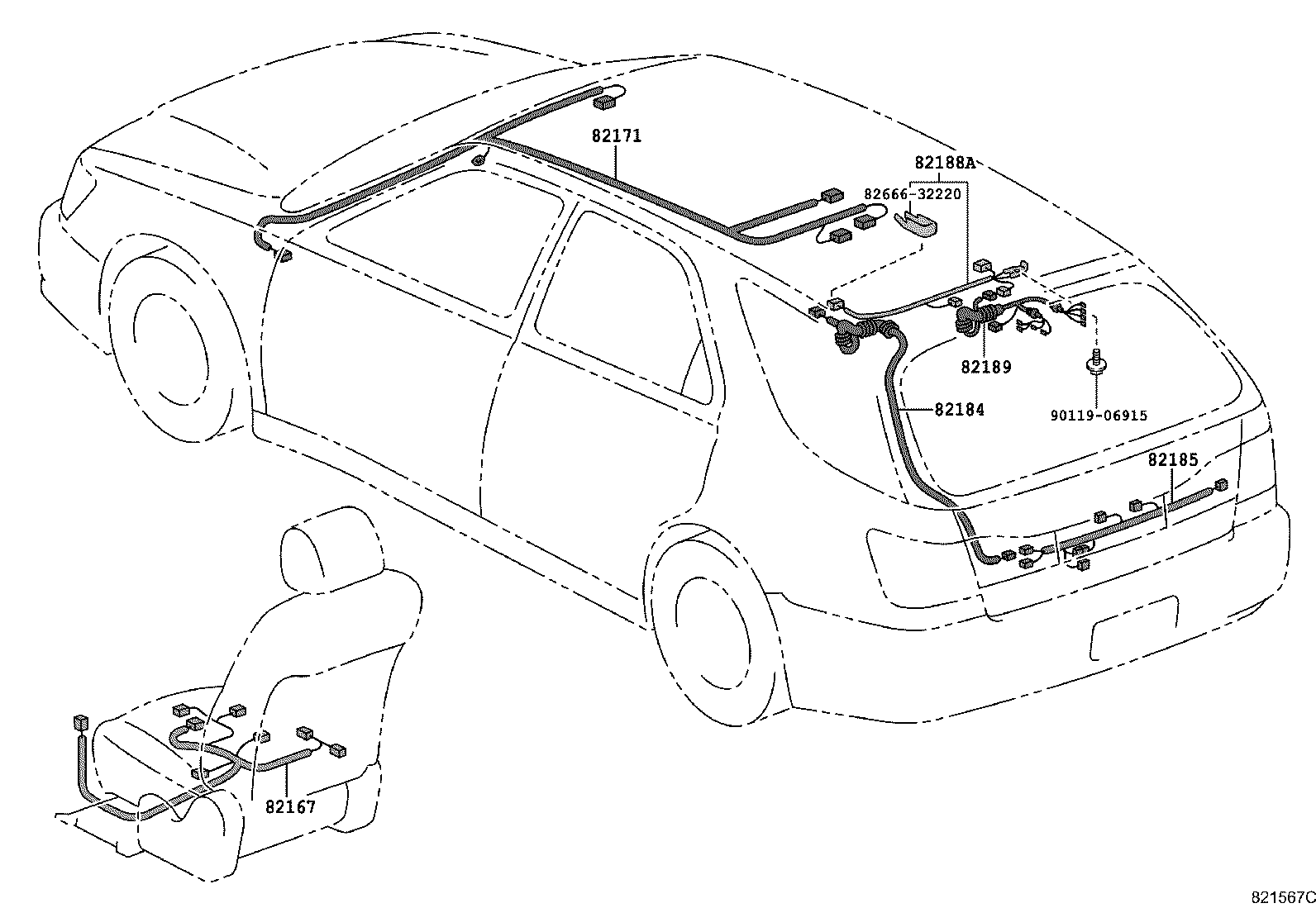

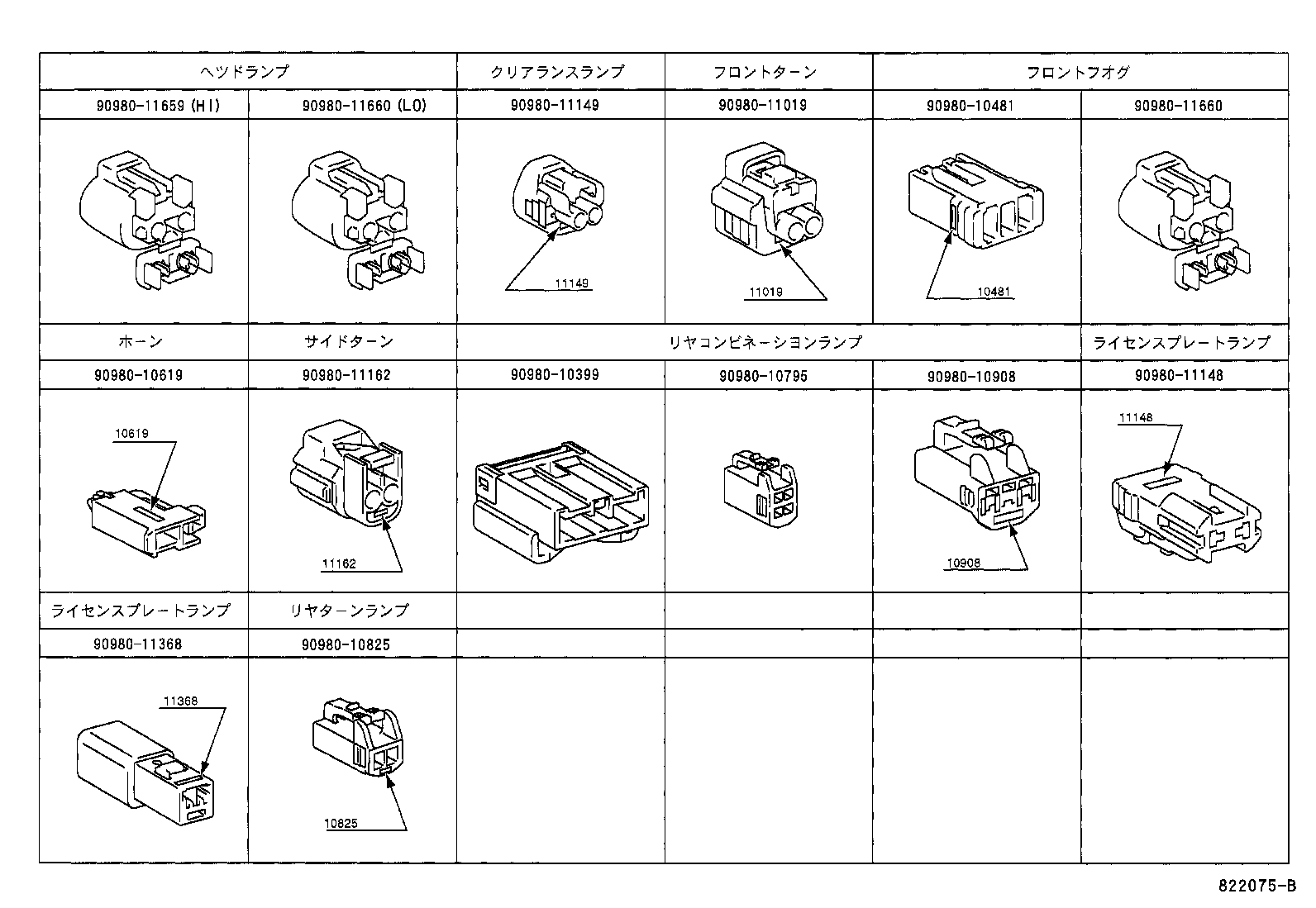

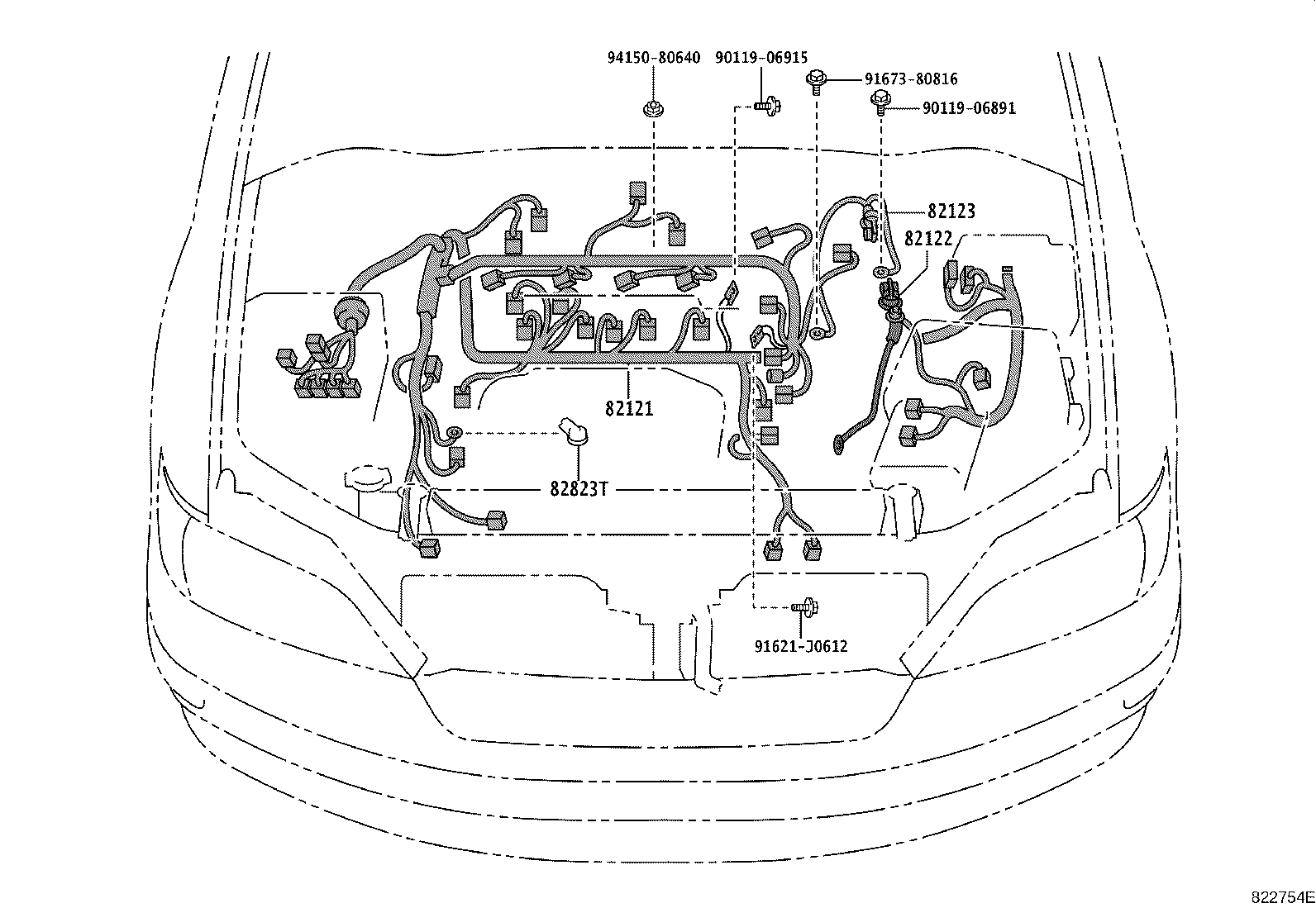

Figure 821558C 821558C 1998-06 → — Figure 821559C 821559C 1998-06 → 2001-08 Figure 821560C 821560C 1998-06 → 2002-04 Figure 821561C 821561C 1998-06 → 2000-04 Figure 822228D 822228D 2000-04 → — Figure 822754E 822754E 2001-08 → — Figure 821562E 821562E 1998-06 → — Figure 821563E 821563E 1998-06 → — Figure 821564E 821564E 1998-06 → — Figure 821565C 821565C 1998-06 → — Figure 821566D 821566D 1998-06 → — Figure 821567C 821567C 1998-06 → — Figure 822753B 822753B 1998-06 → — Figure 822229B 822229B 1998-06 → — Figure 821569D 821569D 1998-06 → — Figure 822075B 822075B 1998-06 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82131 Wire, Cowl
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82167 Wire, Seat, NO.1
82171 Wire, Roof, NO.1
82182 Wire, Luggage Room, NO.2
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82188A Wire, Back Door, NO.3
82189 Wire, Back Door, NO.4
82210C Fusible Link
82345 Diode
82345A Diode
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82821G Cover, Connector(FOR DIAGNOSIS)
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824G Connector, Wiring Harness
82824K Connector, Wiring Harness
82825E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
