Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01
Meter
20 part groups · 4 illustrations
Part groups

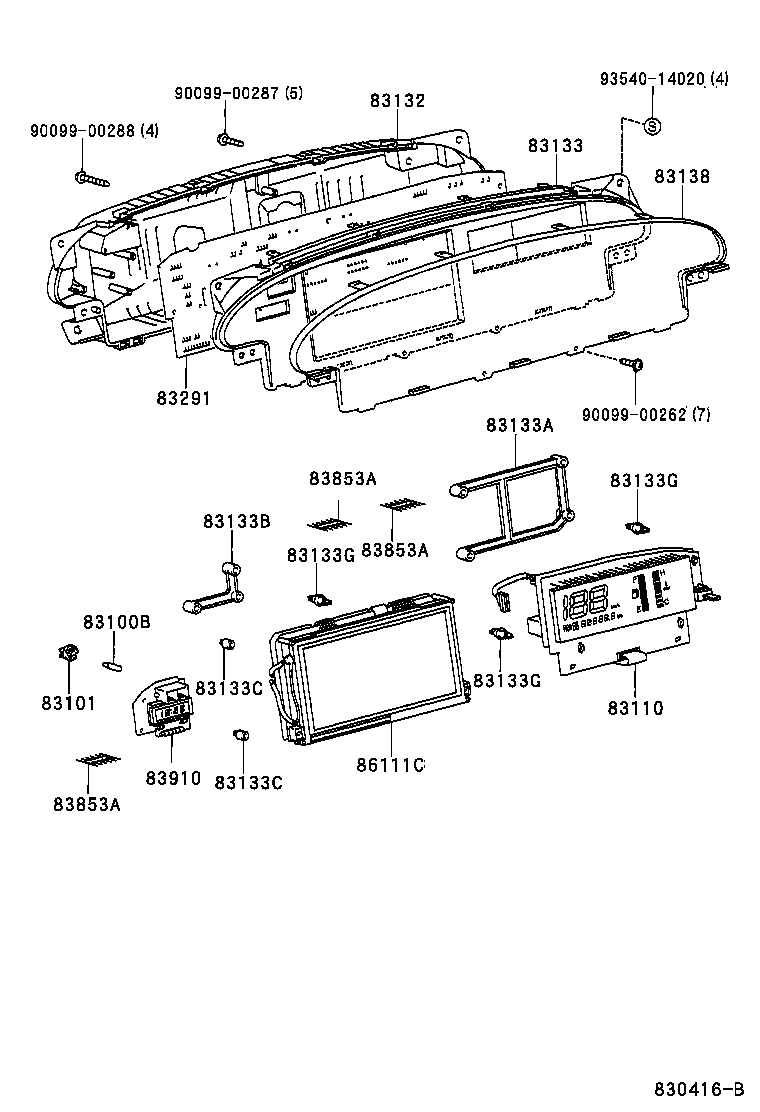

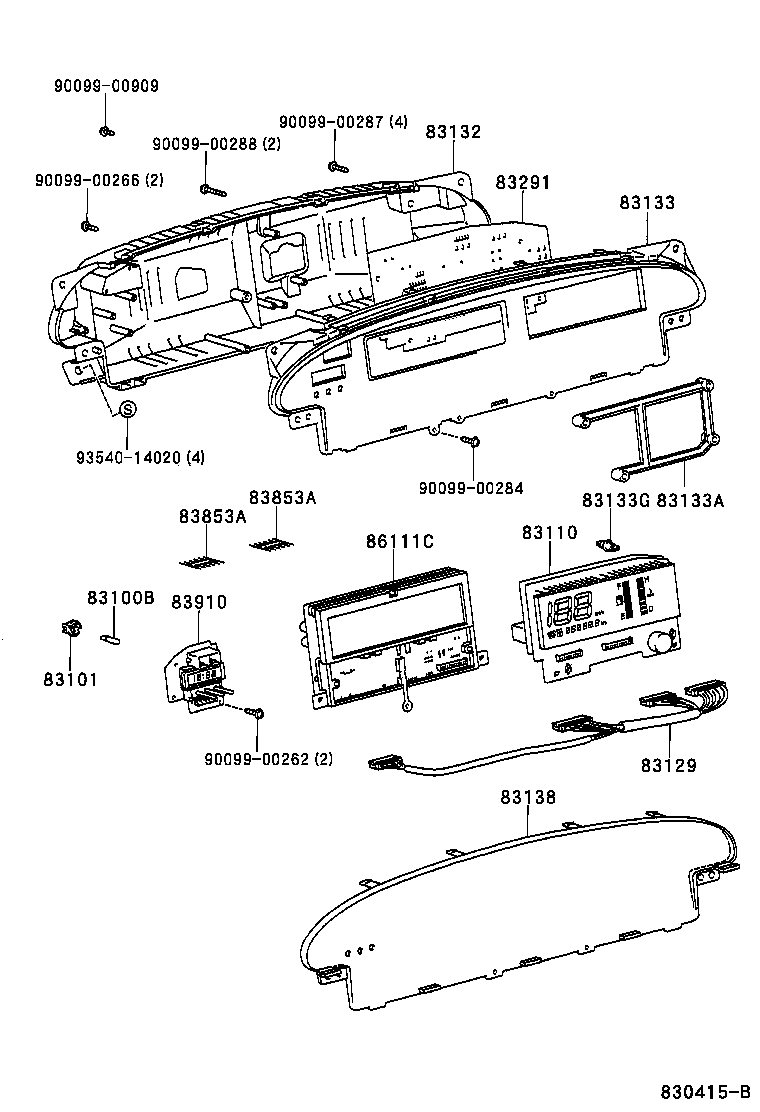

| PNC | Description |
|---|---|

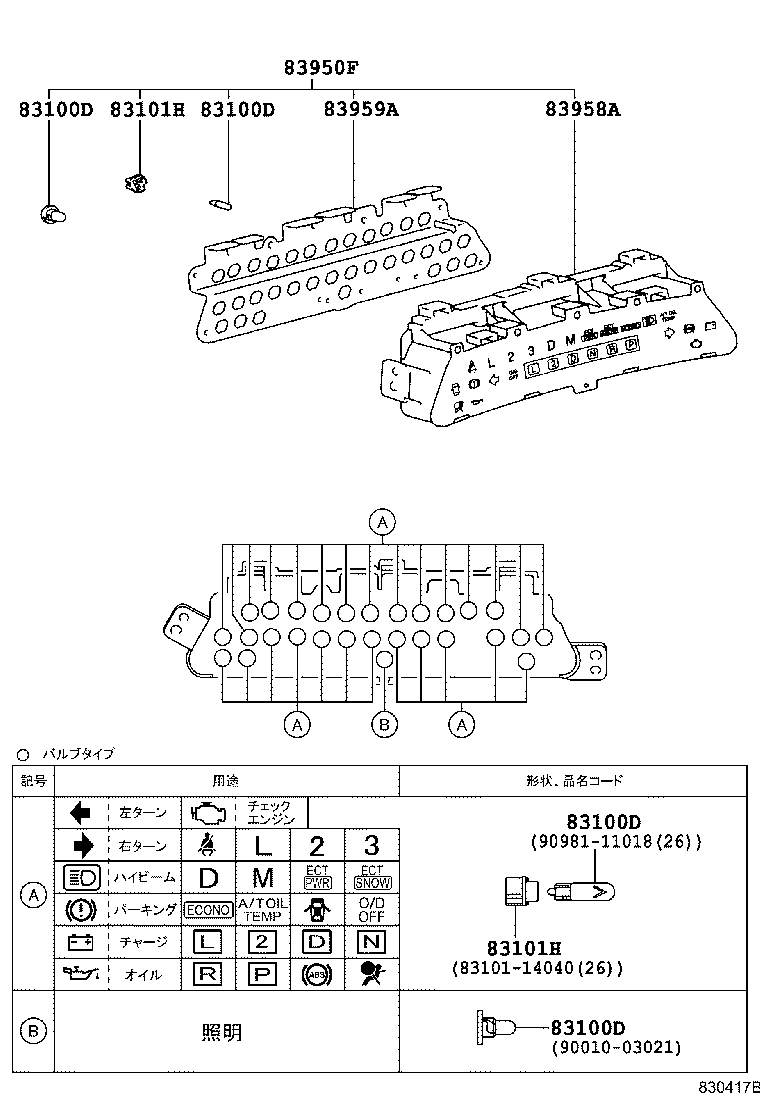

| 83100B | Bulb, Combination Meter, NO.1 |
| 83100D | Bulb, Combination Meter, NO.2 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83101H | Socket Sub-assy, Combination Meter Bulb, NO.2 |
| 83110 | Speedometer Assy |
| 83129 | Wire, Meter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83133A | Plate, Combination Meter, NO.2 |
| 83133B | Plate, Combination Meter, NO.3 |
| 83133C | Plate, Combination Meter,NO.4 |
| 83133G | Plate,Combination Meter |
| 83138 | Glass, Speedometer |
| 83291 | Computer, Combination Meter |
| 83853A | Connector, Combination Meter |
| 83910 | Clock Assy |
| 83950F | Lamp Assy, Telltale |
| 83958A | Case, Telltale Lamp |
| 83959A | Plate, Telltale Lamp Circuit |
| 86111C | Display, Multi-display (COMBINATION METER) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
