Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

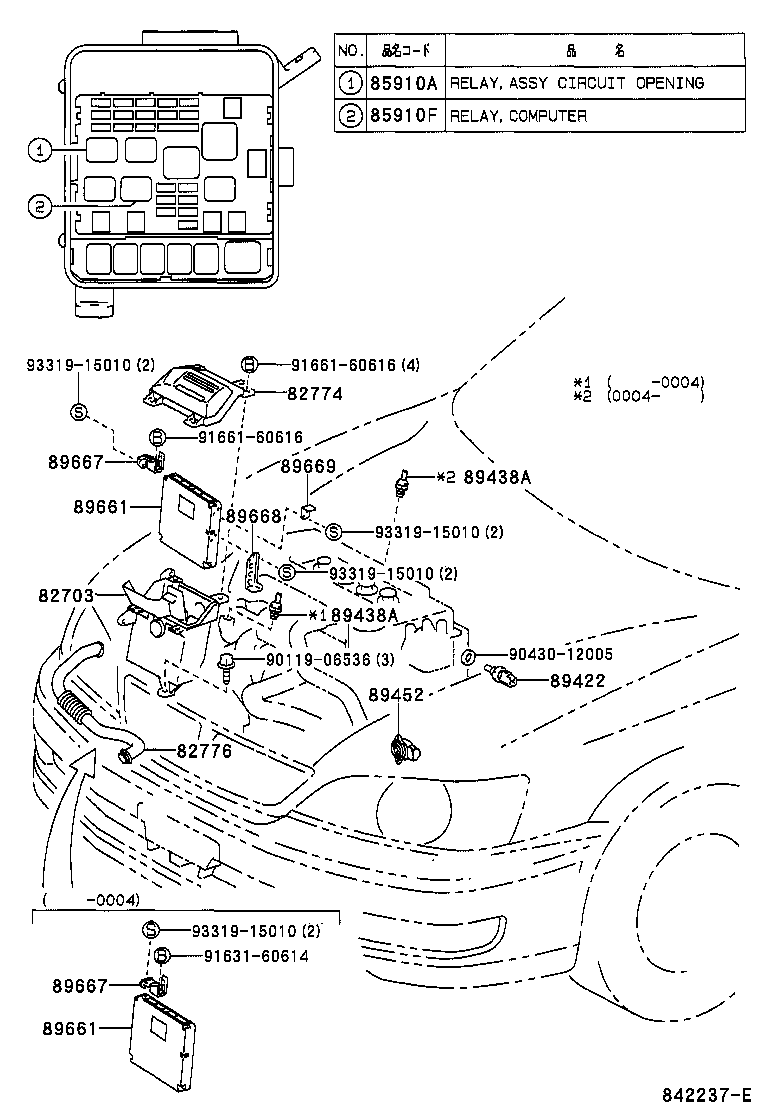

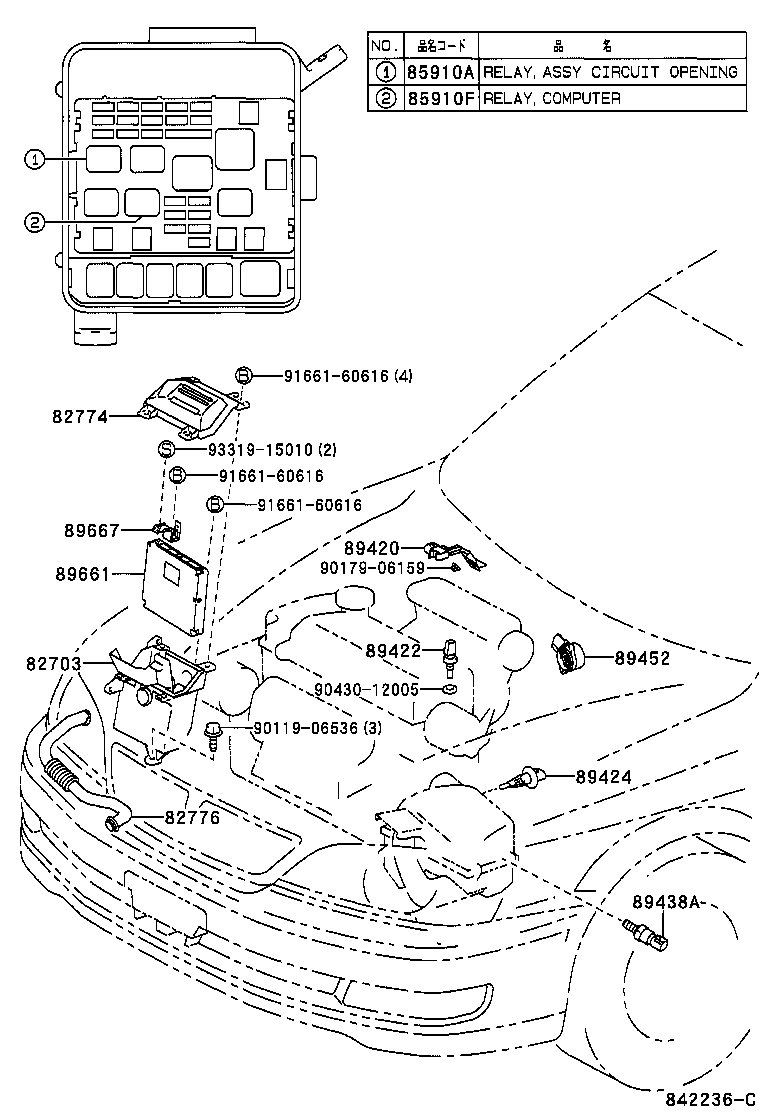

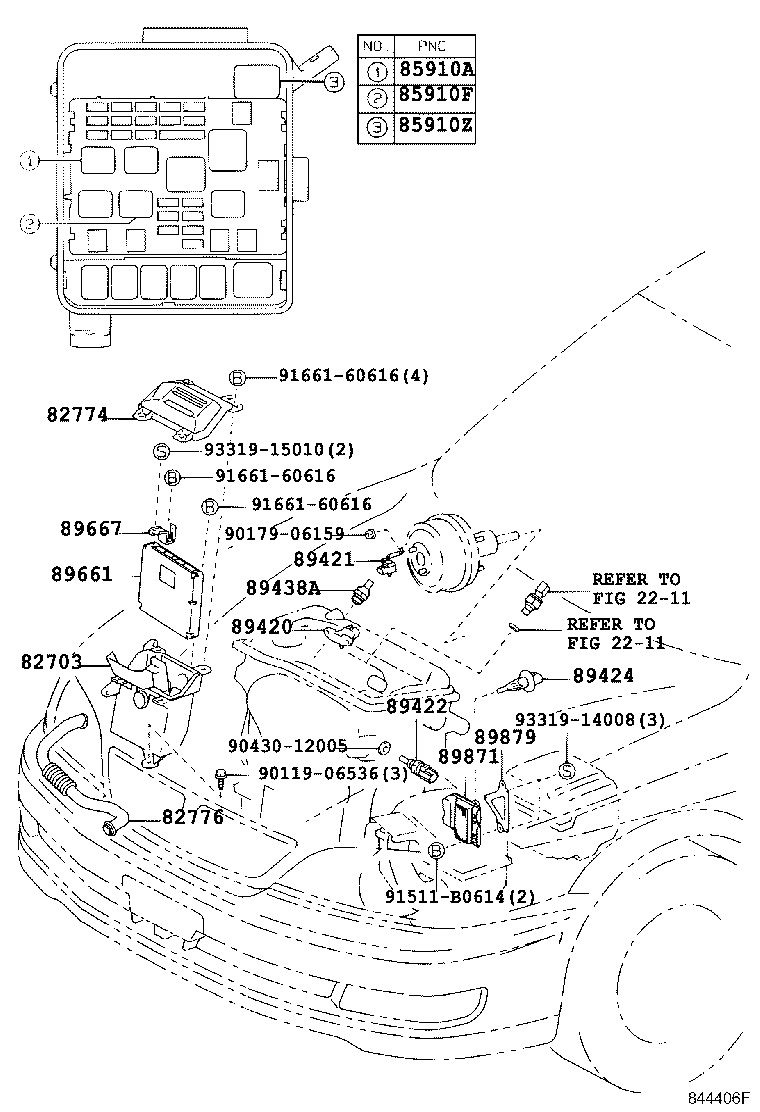

Electronic Fuel Injection System
20 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82703 | Box Sub-assy, Engine Room Ecu |
| 82774 | Cover, Engine Room Ecu |
| 82776 | Duct, Engine Room Ecu Outlet |
| 85910A | Relay Assy, Circuit Opening (FOR EFI) |
| 85910F | Relay, Computer (FOR EFI) |
| 85910Z | Relay, Injection (FOR EFI) |
| 89420 | Sensor Assy, Vacuum |
| 89421 | Sensor Assy, Vacuum (FOR E.F.I.) |
| 89422 | Sensor, Water Temperature (FOR E.F.I.) |
| 89424 | Sensor, Inlet Air Temperature (FOR E.F.I.) |
| 89438A | Switch, Power Steering Oil Pressure |
| 89452 | Sensor, Throttle Position (FOR E.F.I.) |
| 89452D | Sensor, Throttle Position |
| 89458 | Sensor, Fuel Pressure |
| 89661 | Computer, Engine Control |
| 89667 | Bracket, Engine Control Computer |
| 89668 | Bracket, Engine Control Computer, NO.2 |
| 89669 | Bracket, Engine Control Computer, NO.3 |
| 89871 | Driver, Injector |
| 89879 | Bracket, Injector Driver |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
