Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01
Overdrive & Electronic Controlled Transmission

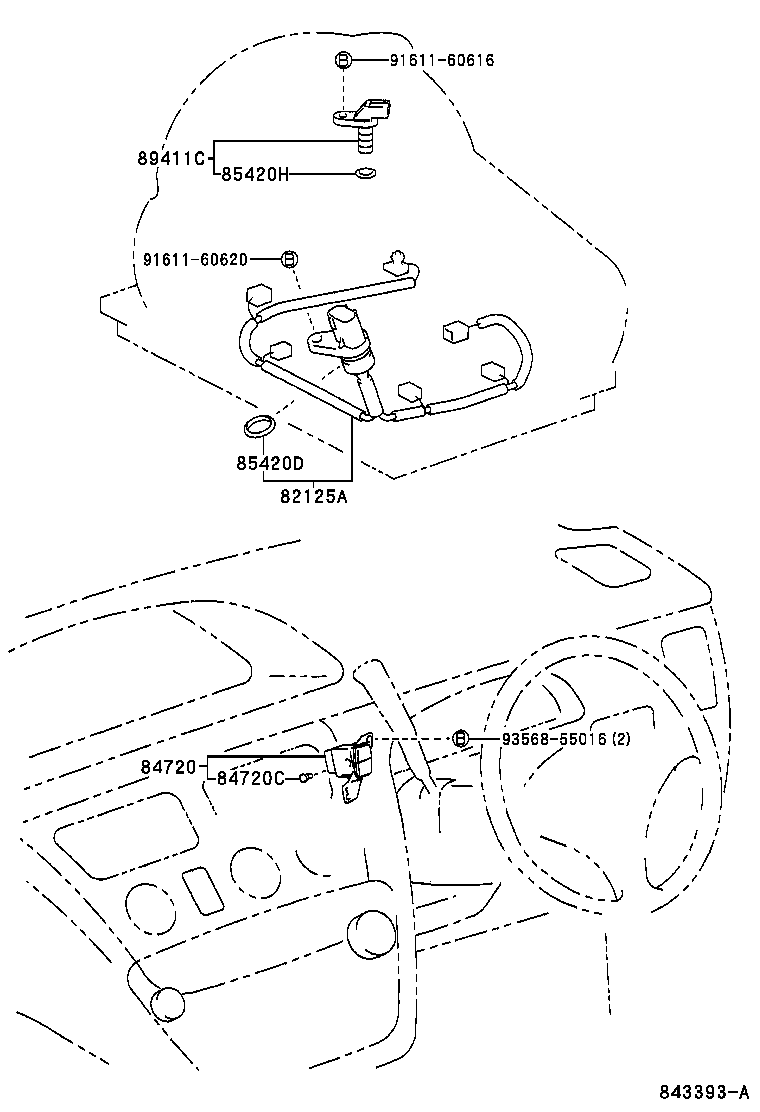

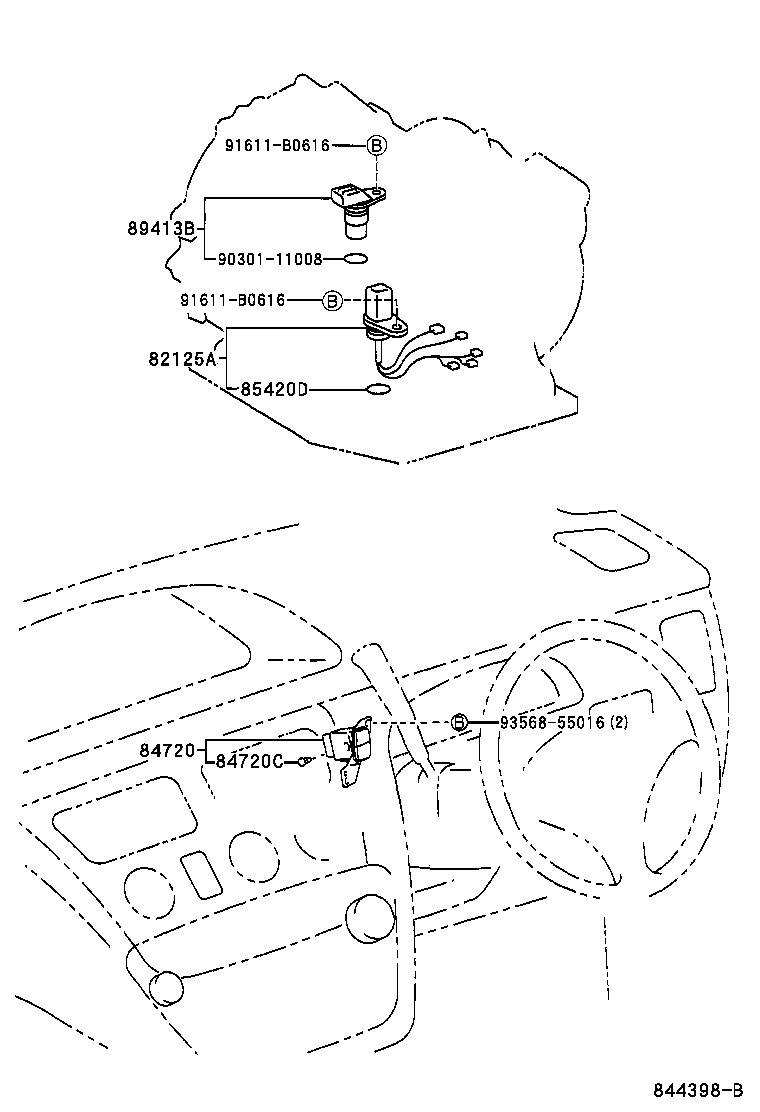

9 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 82125A | Wire, Transmission |
| 82821J | Cover, Connector(FOR SHIFT CONTOROL SWITCH) |
| 84610B | Switch Assy, Transmission Shift, Main |
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 85420D | Ring, O (FOR TRANSMISSION SOLENOID) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
