Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

10 part groups · 4 illustrations

Illustrations

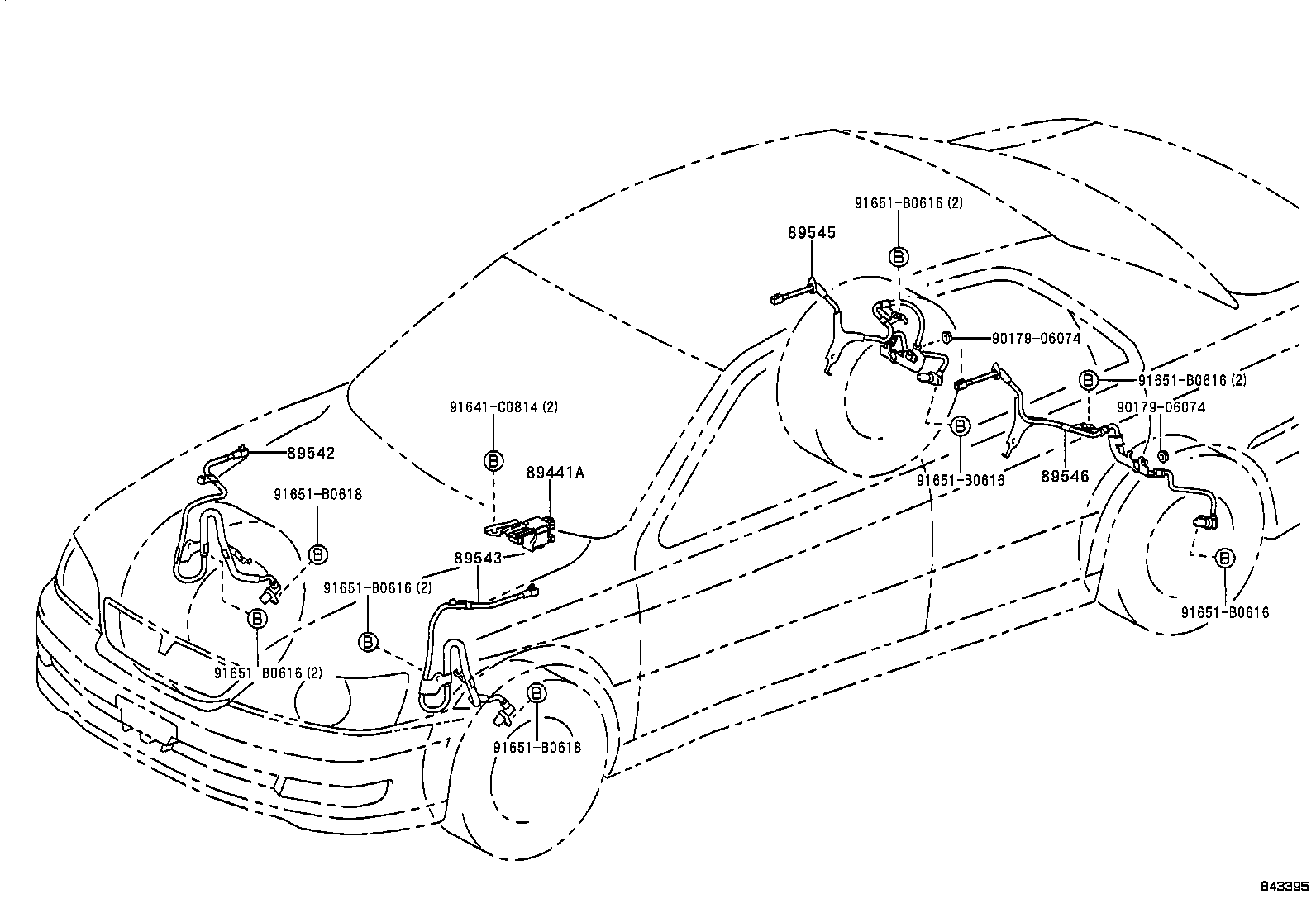

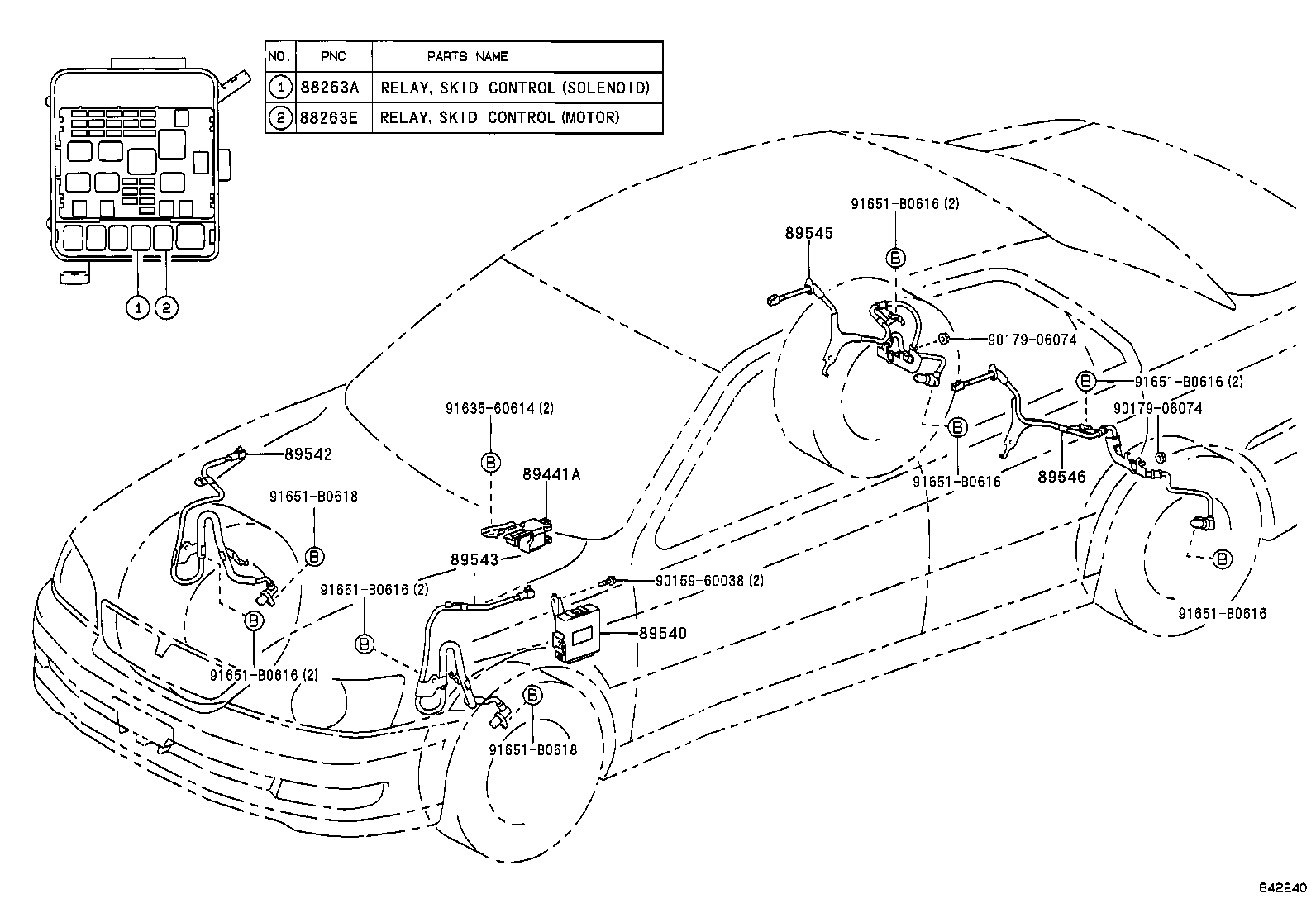

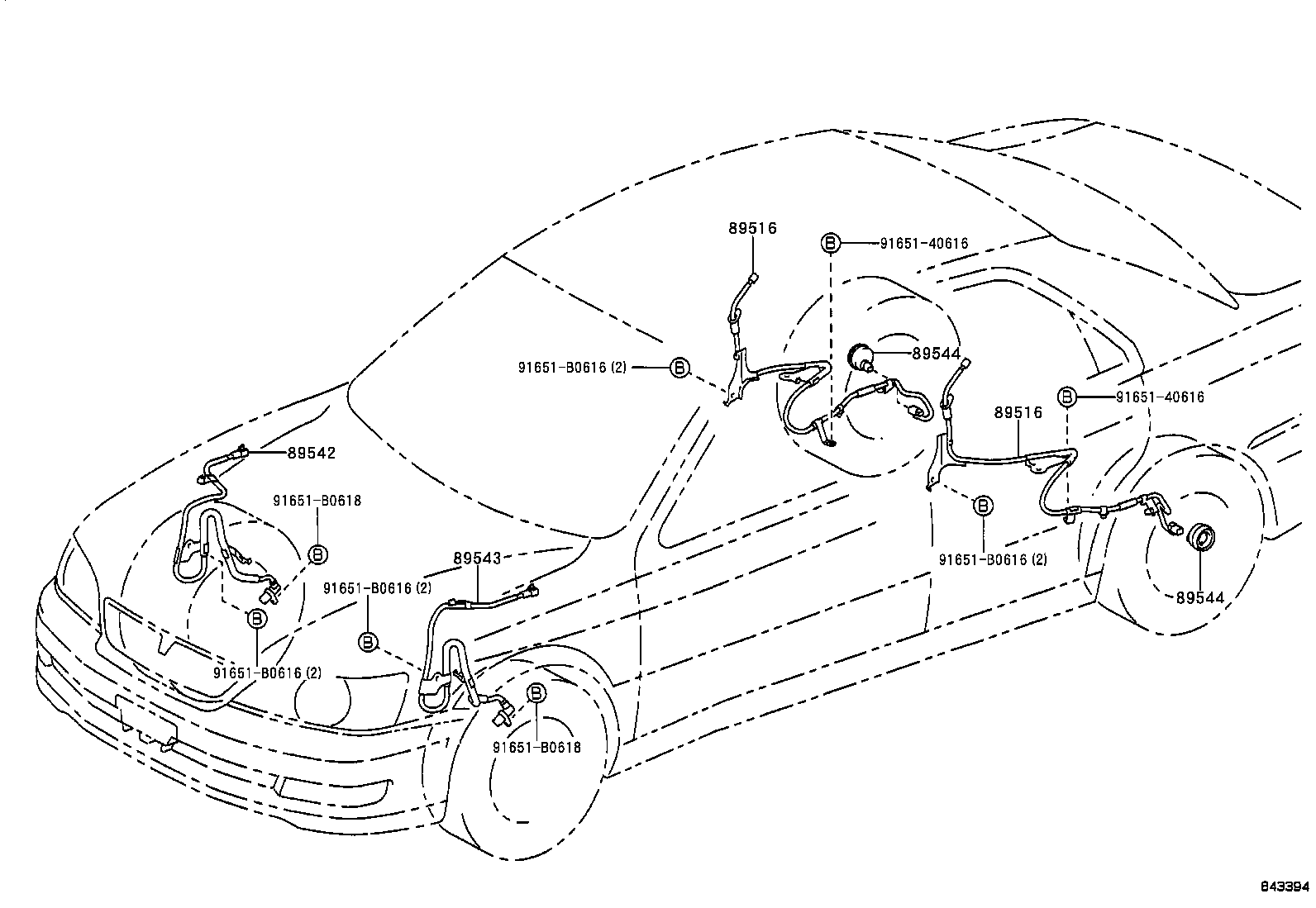

Figure 842239A 842239A 1998-06 → 2000-04 Figure 843394 843394 2000-04 → — Figure 842240 842240 1998-06 → 2000-04 Figure 843395 843395 2000-04 → —

Part groups

PNCDescription
88263A Relay, Skid Control
88263E Relay, Skid Control NO.2
89441A Sensor, Deceleration
89516 Wire, Skid Control Sensor
89540 Computer Assy, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89544 Sensor, Skid Control
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
