Toyota Vista/Vista Ardeo
1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan
Discontinued model
Data version 2004-01

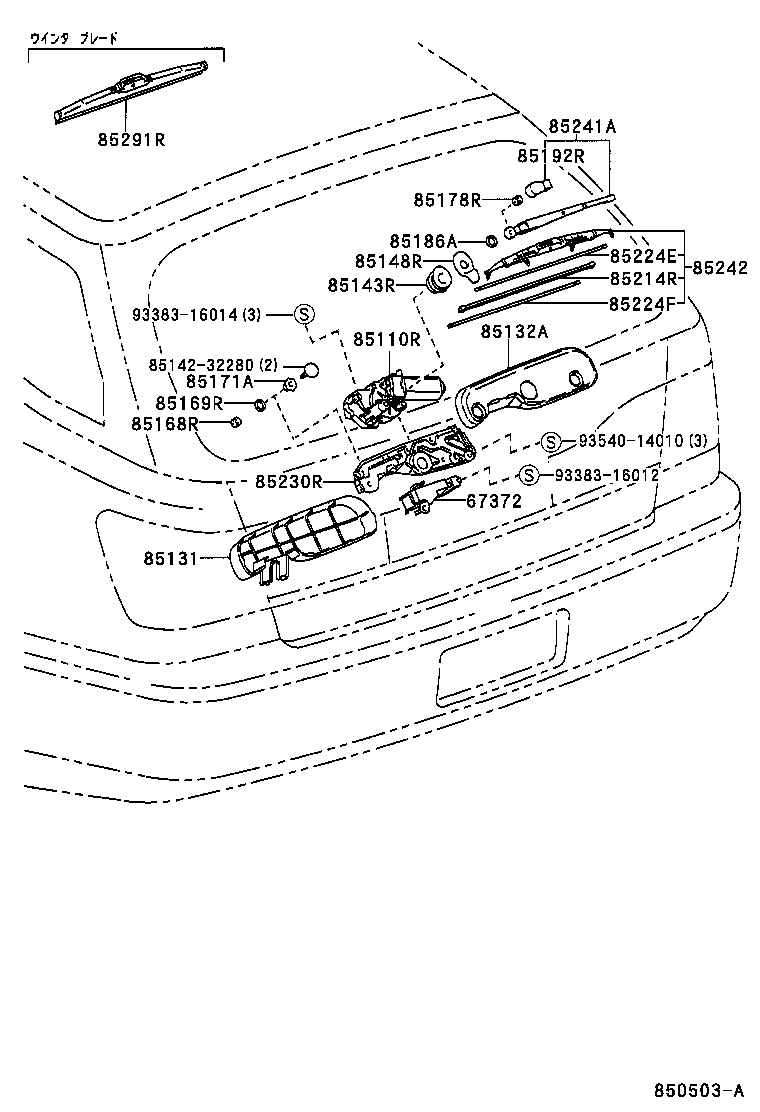

Rear Wiper
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 67372 | Weight, Back Door |
| 85110R | Motor Assy, Rear Wiper |
| 85131 | Cover, Rear Wiper Motor |
| 85132A | Cover, Rear Wiper Shaft |
| 85143R | Grommet, Rear Wiper Motor |
| 85148R | Nut, W/Washer Packing, Rear Wiper Link Pivot |
| 85168R | Nut, Rear Wiper Link Pivot, NO.1 |
| 85168V | Clip, Wiper Link Cover |
| 85169R | Washer, Rear Wiper Link Pivot, NO.1 |
| 85171A | Frame, Rear Wiper Link |
| 85178R | Nut (FOR REAR WIPER ARM SETTING) |
| 85186A | Nut, Rear Wiper Link Pivot |
| 85192R | Cover, Rear Wiper Arm |
| 85214R | Rubber, Rear Wiper |
| 85224E | Plate, Rear Wiper Rubber Backing, NO.1 |
| 85224F | Plate, Rear Wiper Rubber Backing, NO.2 |
| 85230R | Bracket Assy, Rear Wiper |
| 85241A | Arm, Rear Wiper |
| 85242 | Blade, RR Wiper |
| 85291R | Blade,Rear Wiper, Winter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
