Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Antenna

1 part groups · 2 illustrations

Illustrations

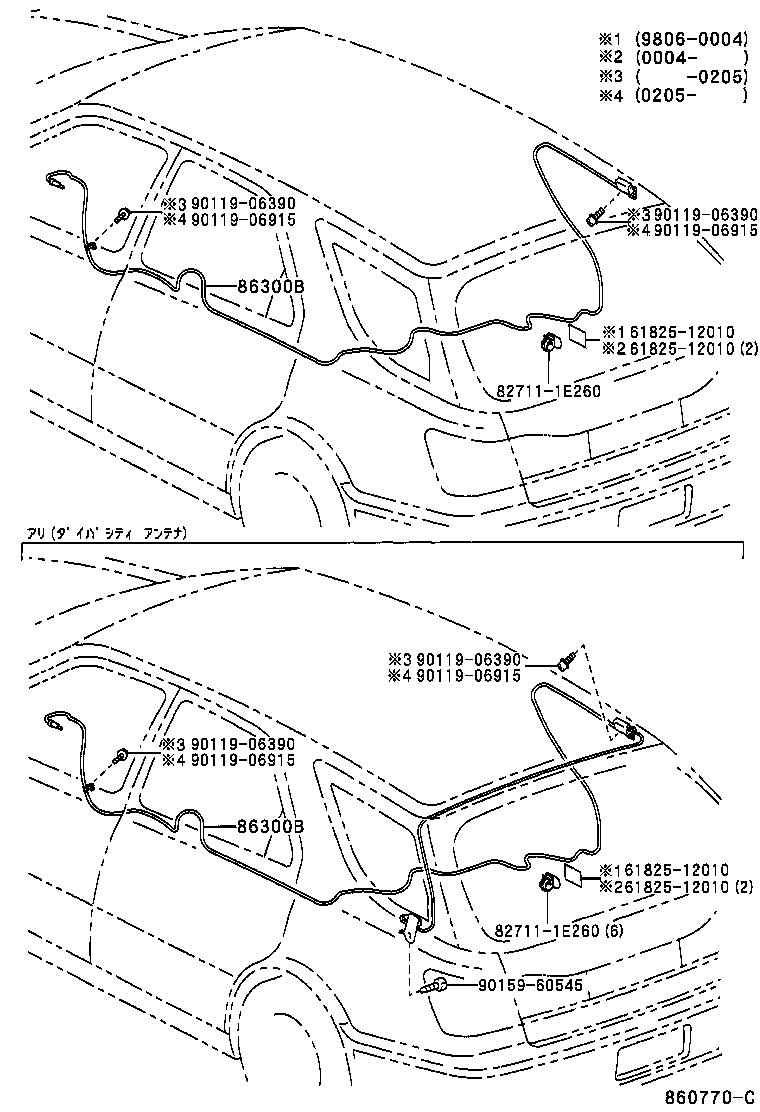

Figure 860769C 860769C 1998-06 → — Figure 860770C 860770C 1998-06 → —

Part groups

PNCDescription
86300B Antenna Assy, Amplifier, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
