Toyota Vista/Vista Ardeo

1998-06 → 2003-07 · chassis AZV5#,SV5#,ZZV50 · catalogue 281170 · Japan

Discontinued model Data version 2004-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

14 part groups · 4 illustrations

Illustrations

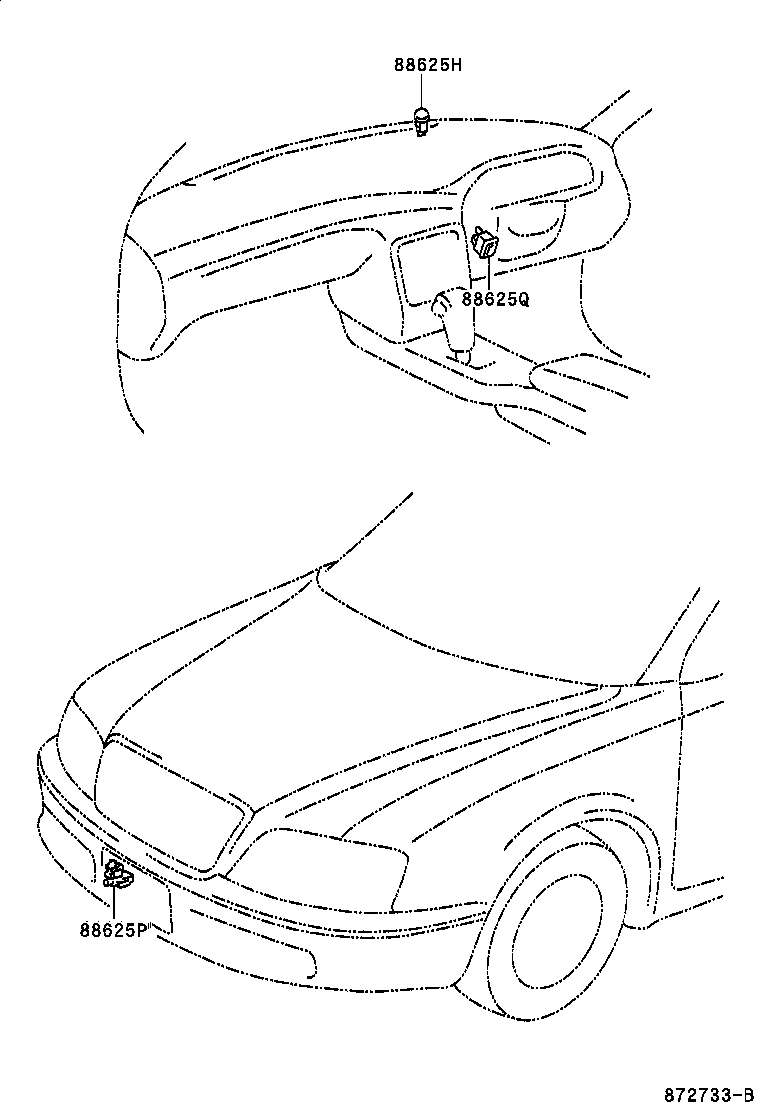

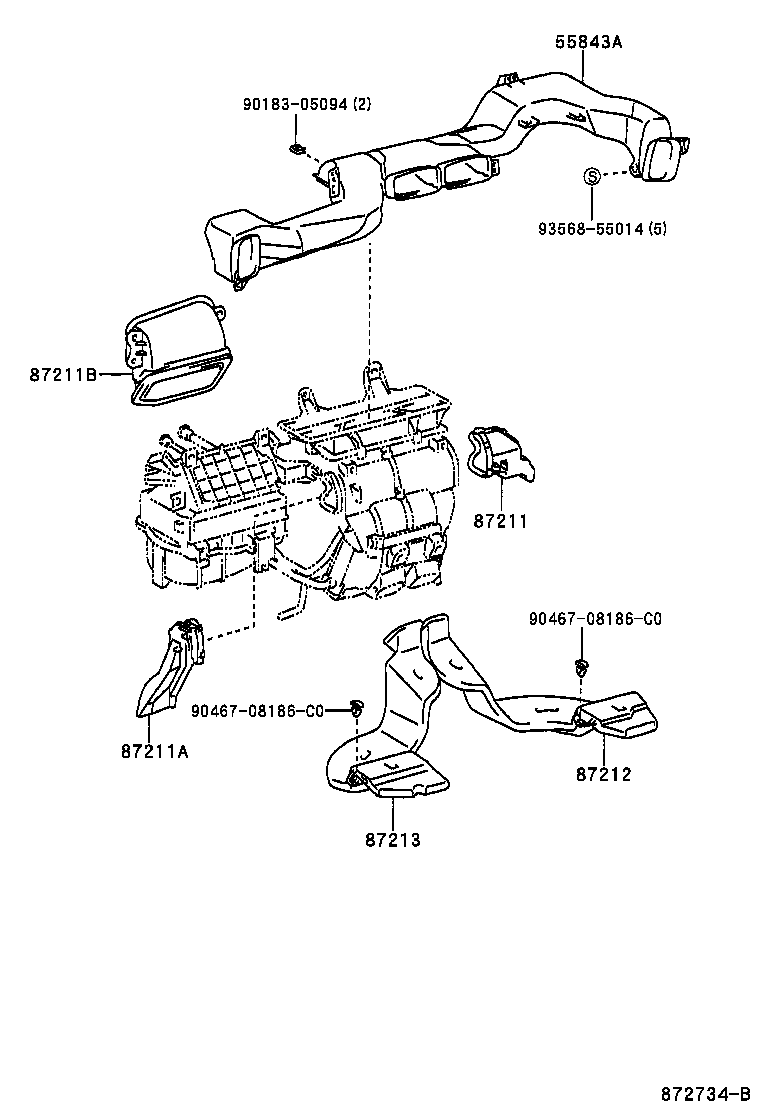

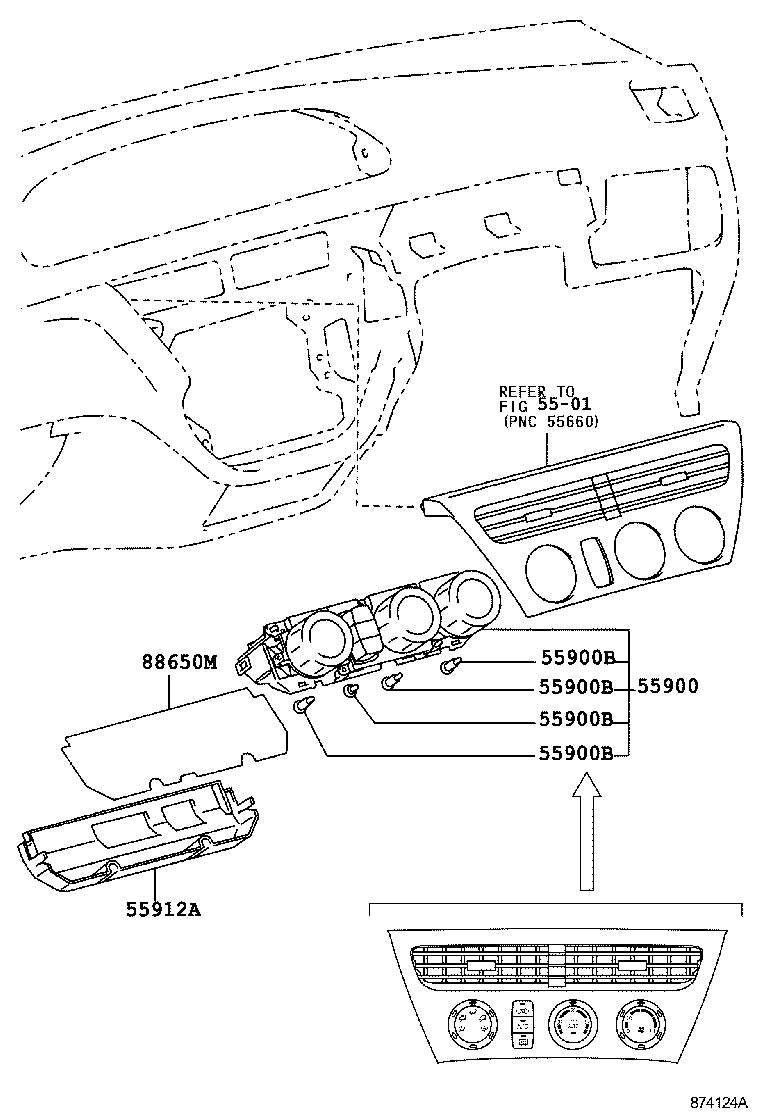

Figure 87D513 87D513 1998-06 → 2000-04 Figure 874124A 874124A 2000-04 → — Figure 872734B 872734B 1998-06 → — Figure 872733B 872733B 1998-06 → —

Part groups

PNCDescription
55843A Duct, Heater TO Register, NO.1
55900 Control Assy, Air Conditioner
55900B Bulb, Air Conditioner Control
55912A Housing, Heater Control
55912E Base, Heater Control, Lower
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87211B Duct, Air, NO.3
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
88625H Thermistor, Cooler (SOLAR SENSOR)
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88625Q Thermistor, Cooler (ROOM TEMP. SENSOR)
88650M Computer Assy, Air Conditioner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
