Toyota Windom

1991-10 → 1996-08 · chassis VCV10,11 · catalogue 282150 · Japan

Discontinued model Data version 1997-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 4 illustrations

Illustrations

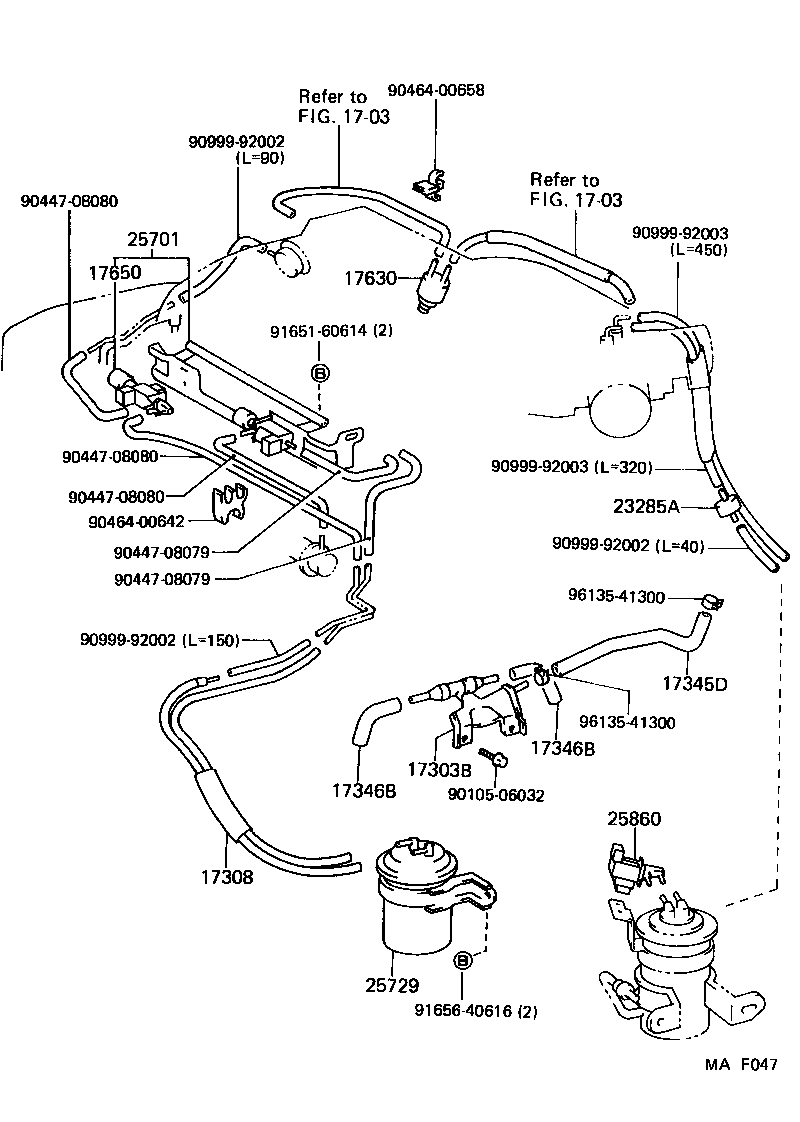

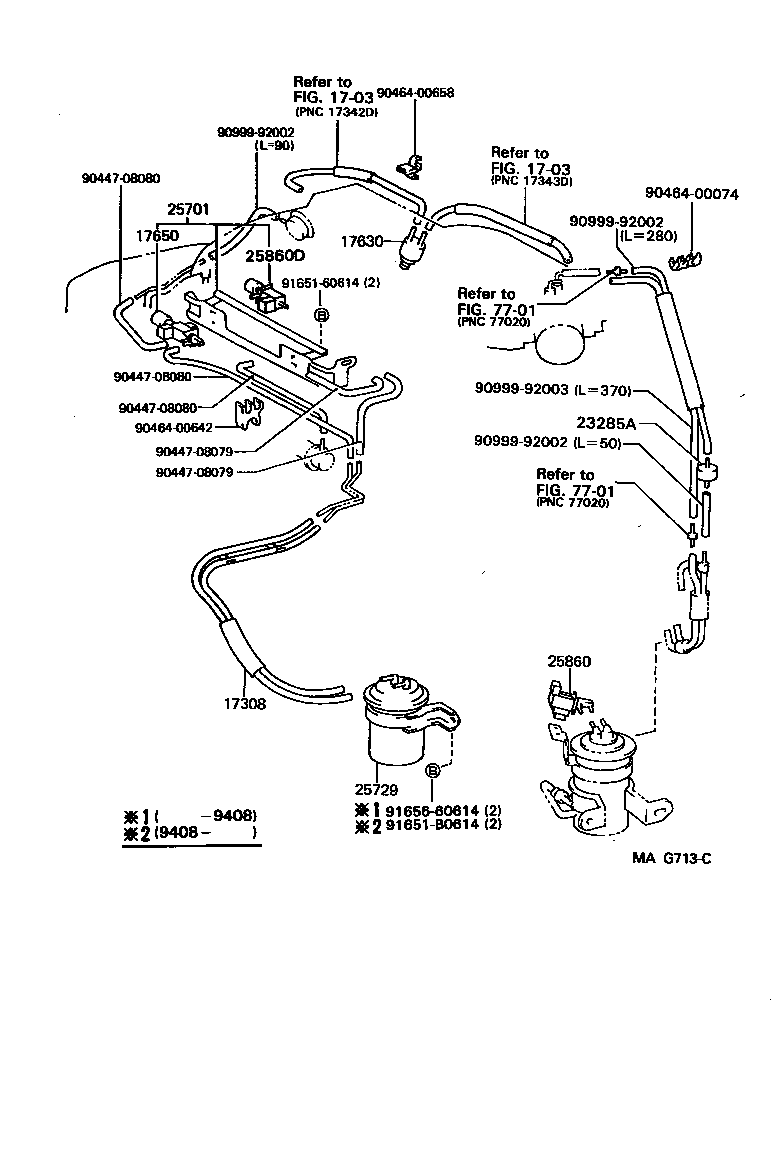

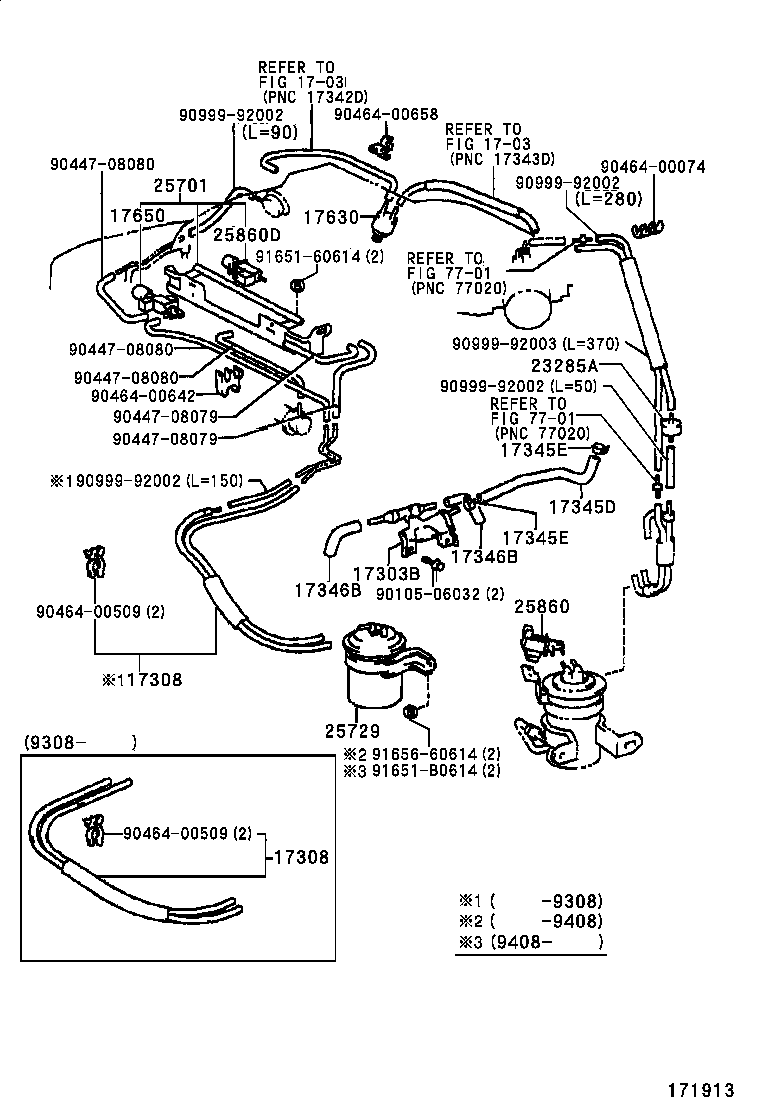

Figure MA9503A MA9503A 1991-10 → — Figure MAF047 MAF047 1991-10 → — Figure 171913 171913 1992-05 → — Figure MAG713C MAG713C 1993-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17308 Hose Sub-assy, Vacuum(FOR IDLE-UP)
17345D Hose, Air, NO.5
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17346B Hose, Air, NO.6
17630 Valve Assy, Air Control
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
25701 Valve Set, Emission Control
25729 Tank, Vacuum Surge W/Bracket
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
