Toyota Windom

1991-10 → 1996-08 · chassis VCV10,11 · catalogue 282150 · Japan

Discontinued model Data version 1997-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

6 part groups · 2 illustrations

Illustrations

Figure MER727B

MER727B 1991-10 → 1994-08

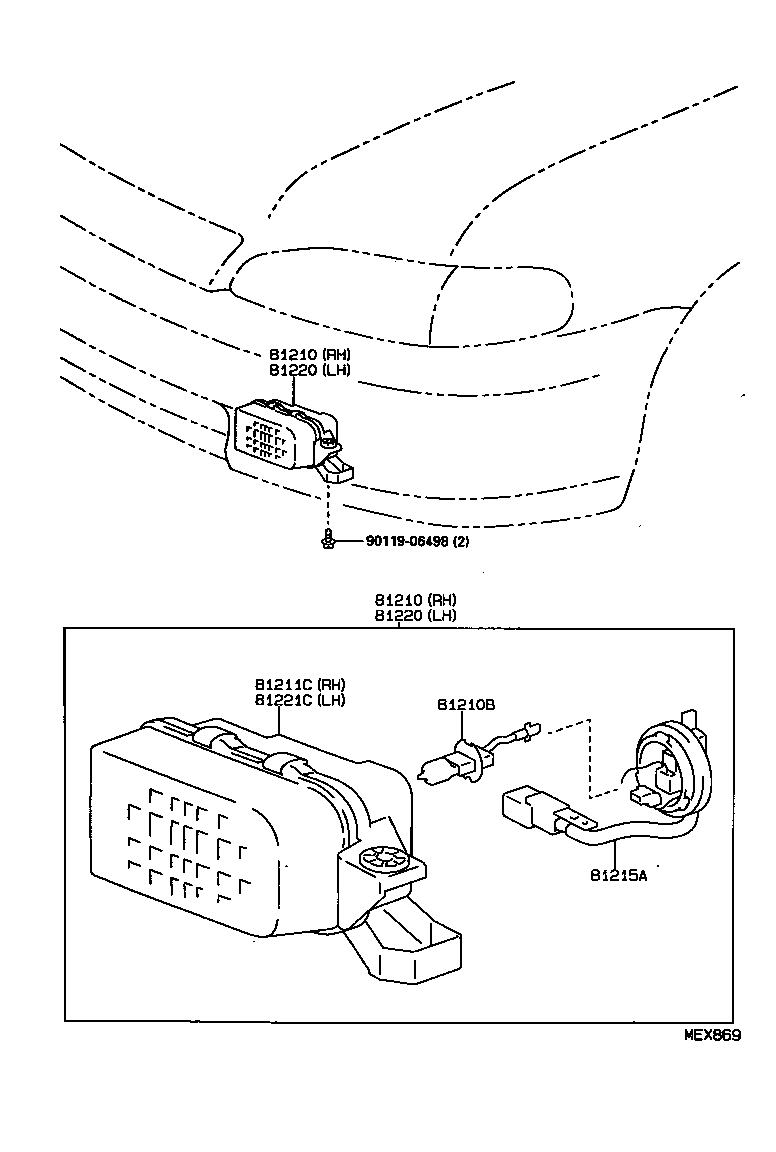

Figure MEX869

MEX869 1994-08 → 1996-08

Part groups

PNC	Description
81210	Lamp Assy, Fog
81210B	Bulb, Fog Lamp
81211C	Lamp Unit, Fog Lamp, RH
81215A	Socket & Wire, Fog Lamp
81220	Lamp Assy, Fog, LH
81221C	Lamp Unit, Fog Lamp, LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
