Toyota Windom

1996-08 → 2001-07 · chassis MCV2# · catalogue 282160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 3 illustrations

Illustrations

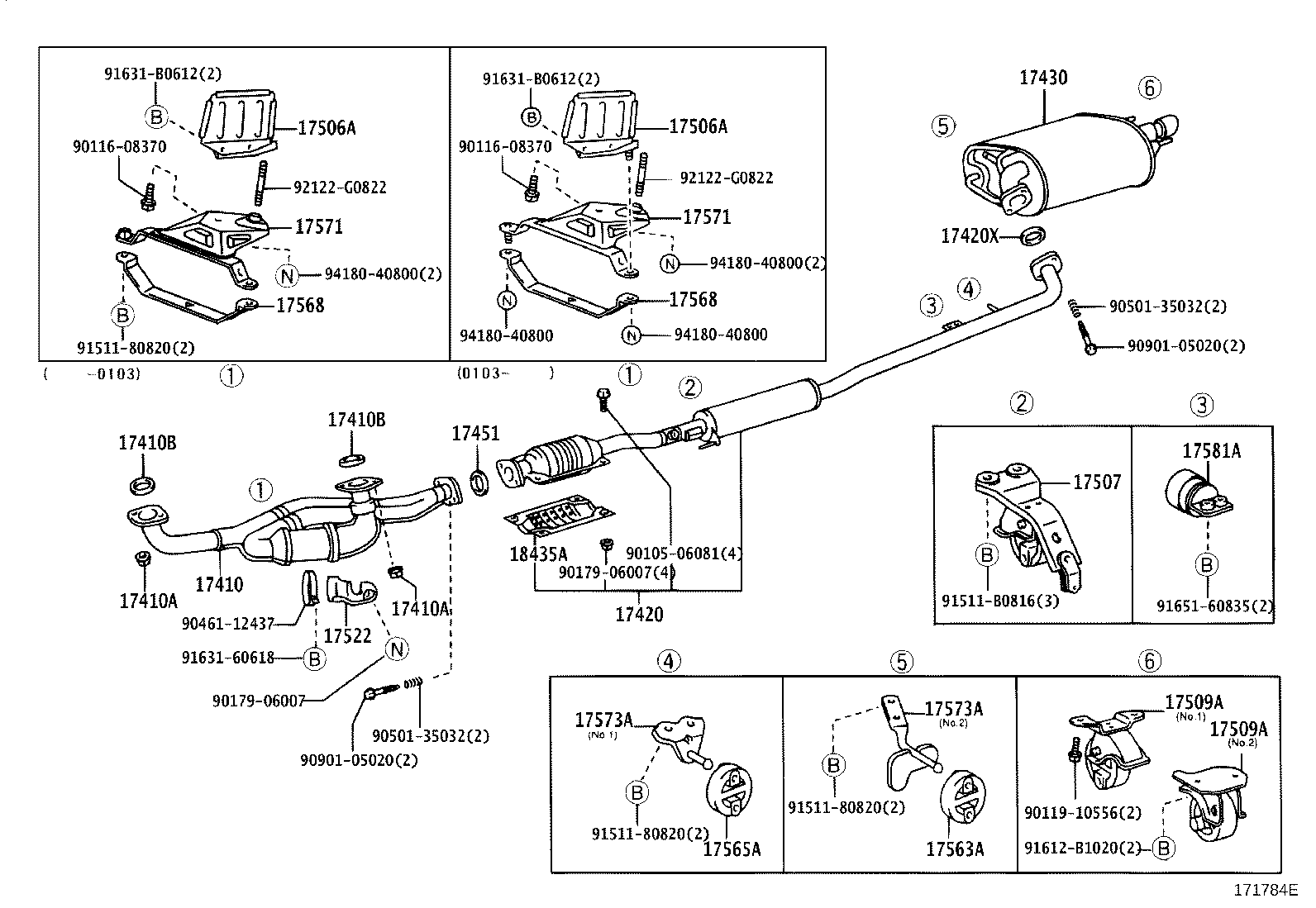

Figure 179959 179959 1996-08 → 1998-08 Figure 179959 179959 1998-08 → — Figure 171784E 171784E 1998-08 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17502B Bracket Sub-assy, Catalytic Converter, Front
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17509A Bracket Sub-assy, Exhaust Pipe NO.4 Support
17522 Protector, Exhaust Pipe, Upper NO.2
17563A Support, Exhaust Pipe, NO.3
17565A Support, Exhaust Pipe, NO.4
17568 Stay, Exhaust Pipe Support
17569B Stay, Exhaust Pipe Support, NO.2
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
17597A Protector, Exhaust Pipe, Lower NO.5
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
