Toyota Windom
1996-08 → 2001-07 · chassis MCV2# · catalogue 282160 · Japan
Discontinued model
Data version 2002-01

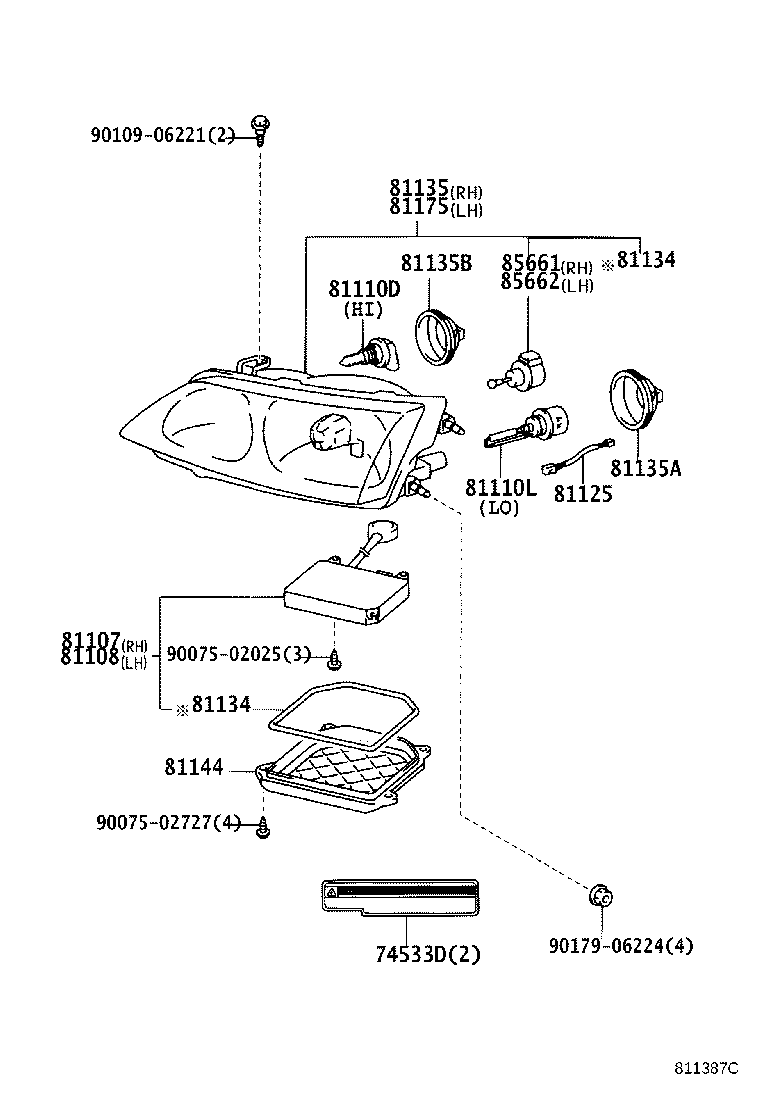

Headlamp
19 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 74533D | Label, Headlamp Voltage Caution |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110D | Bulb(FOR HEADLAMP, NO.2) |
| 81110L | Bulb, Discharge Headlamp |
| 81125 | Cord, Headlamp |
| 81134 | Gasket, Headlamp |
| 81135 | Unit Assy, Headlamp, RH |
| 81135A | Cap, Locking |
| 81135B | Cap, Locking |
| 81144 | Cover, Headlamp, NO.1 |
| 81144C | Cover, Headlamp Socket |
| 81145A | Adapter Assy |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81175 | Unit Assy, Headlamp, LH |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85967 | Computer, Light Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
