Toyota Windom

1996-08 → 2001-07 · chassis MCV2# · catalogue 282160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

5 part groups · 4 illustrations

Illustrations

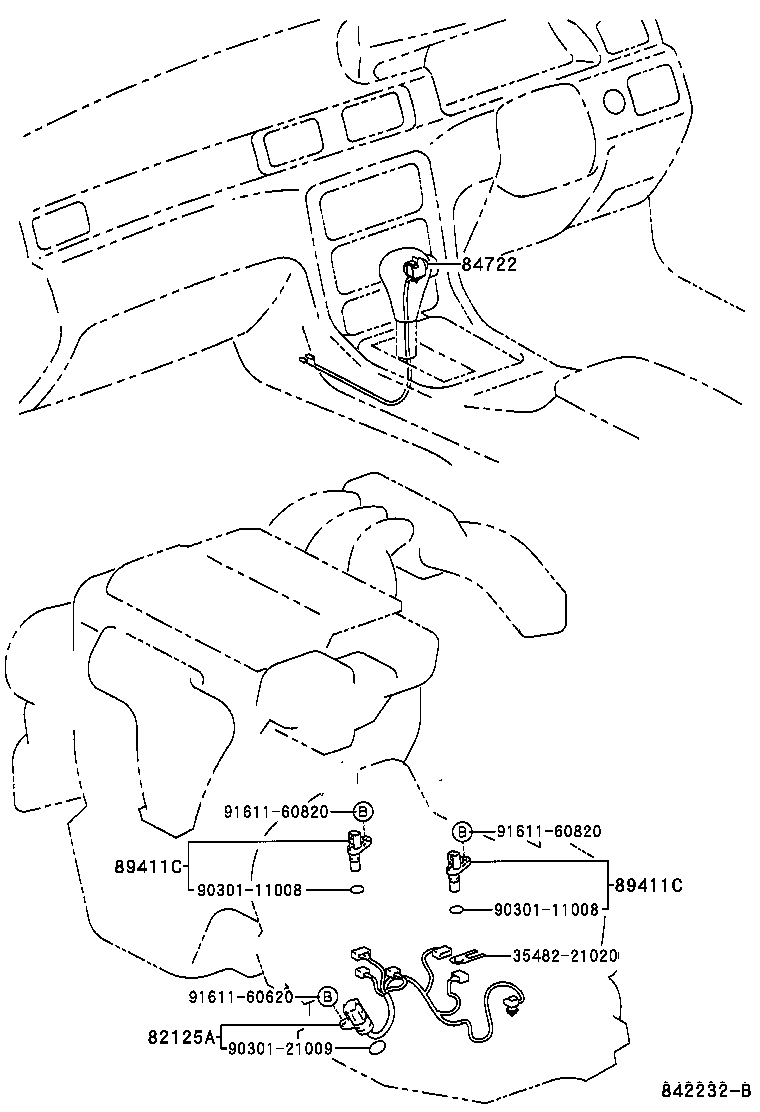

Figure 841900B 841900B 1996-08 → 1998-08 Figure 841900B 841900B 1998-08 → — Figure 842232B 842232B 1998-08 → — Figure 840225C 840225C 1996-08 → 1998-08

Part groups

PNCDescription
82125A Wire, Transmission
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
89411C Sensor, Speed
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
