Toyota Windom
1996-08 → 2001-07 · chassis MCV2# · catalogue 282160 · Japan
Discontinued model
Data version 2002-01

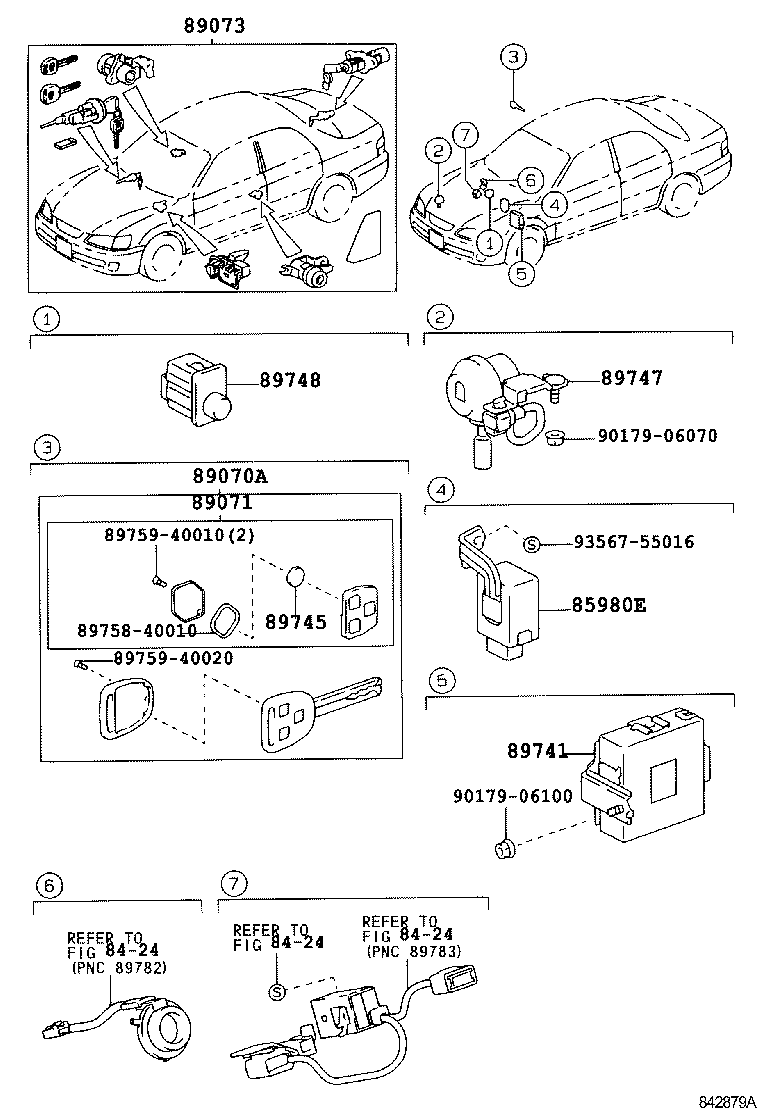

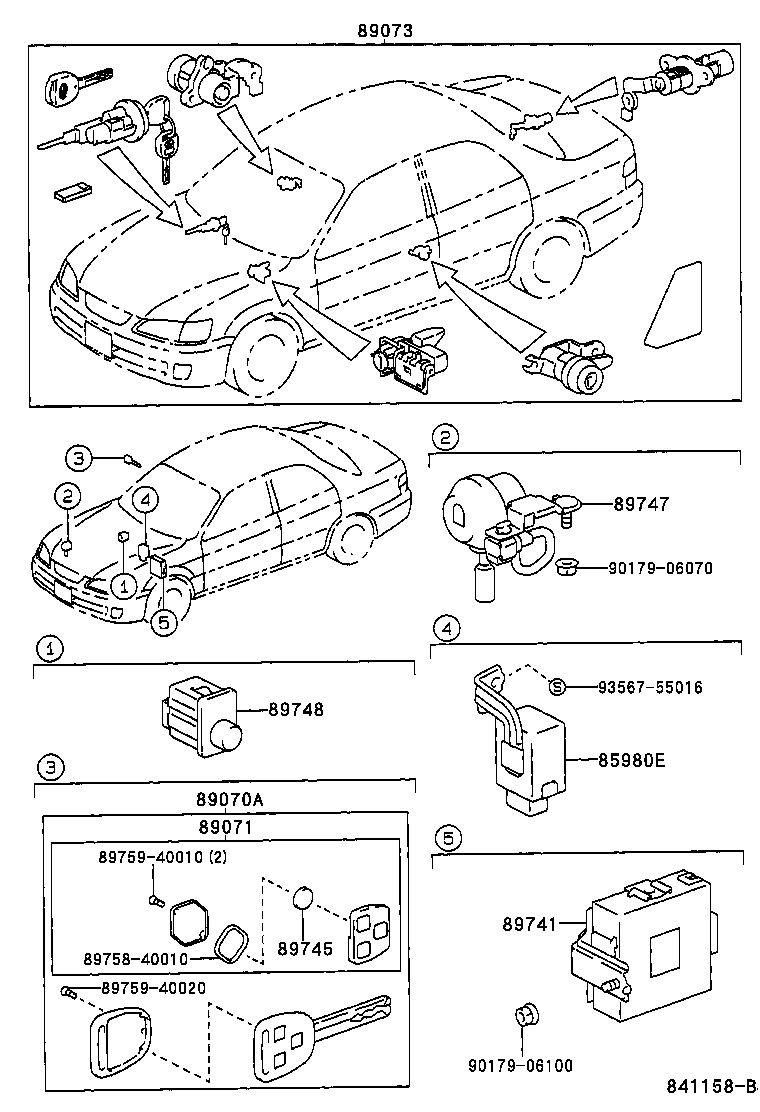

Wireless Door Lock
11 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 85980E | Relay Assy, Door Control |
| 89070A | Transmitter, Door Control (CUT KEY) |
| 89071 | Module Set, Transmitter Sub-assy, Door Control |
| 89073 | Cylinder Set, Lock W/Transmitter Housing(LESS MODULE) |
| 89741 | Receiver, Door Control |
| 89742 | Transmitter, Door Control |
| 89745 | Battery, Transmitter |
| 89747 | Buzzer, Wireless Door Lock |
| 89748 | Controller, Wireless Door Lock Buzzer |
| 89751 | Cover, Transmitter Housing |
| 89752 | Case, Transmitter Housing |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
