Toyota Windom

1996-08 → 2001-07 · chassis MCV2# · catalogue 282160 · Japan

Discontinued model Data version 2002-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

8 part groups · 5 illustrations

Illustrations

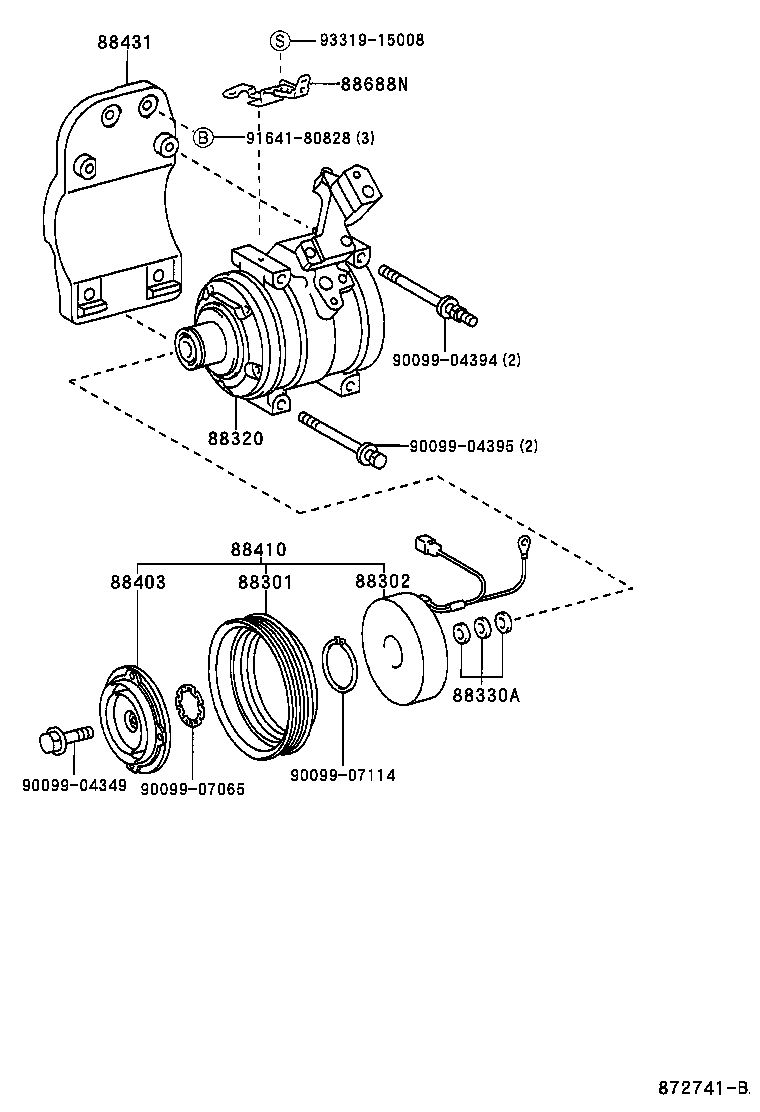

Figure 870210E 870210E 1996-08 → 1998-08 Figure 870210E 870210E 1998-08 → 1999-08 Figure 870210E 870210E 1999-08 → — Figure 872741B 872741B 1998-08 → 1999-08 Figure 872741B 872741B 1999-08 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
