Toyota Windom
2001-07 → 2006-03 · chassis MCV30 · catalogue 282170 · Japan
Discontinued model
Data version 2006-10

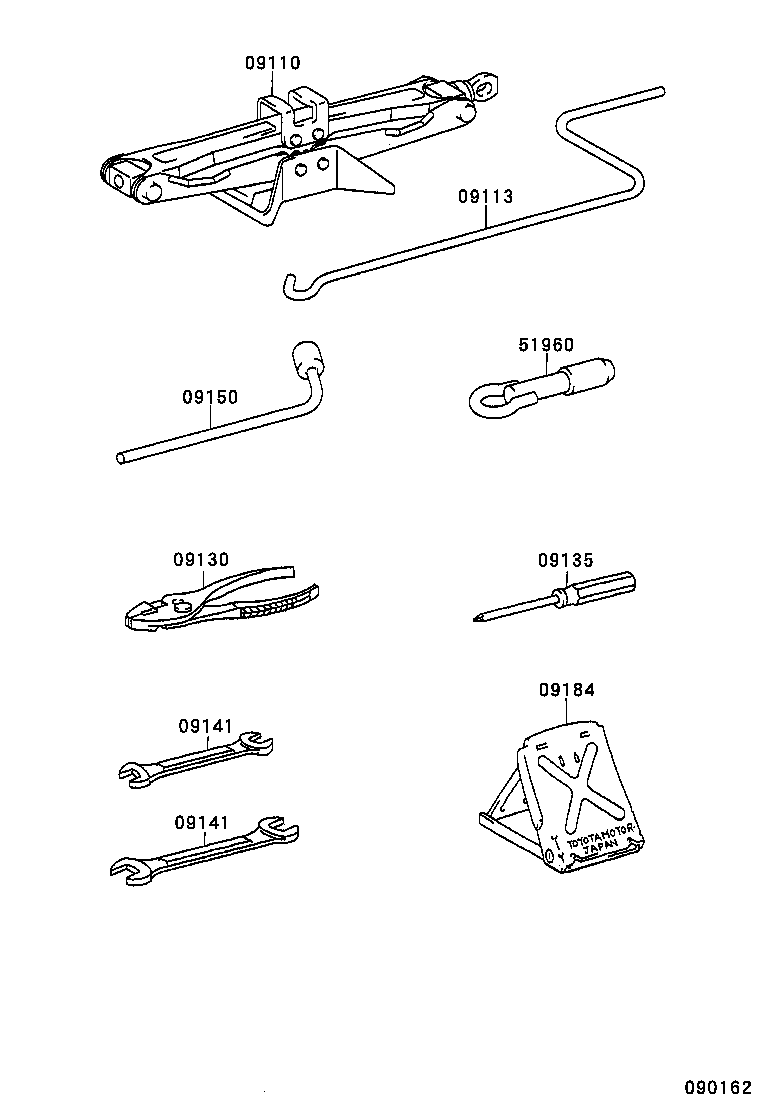

| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 09110 — Jack Assy | ||||
| 09111-06020 |
Jack Assy
2001-07 → 2002-01
ended
|
MCV30 | ¥6,200 | |
| 09111-0W080 |
Jack Assy
2002-01 → 2004-03
ended
|
MCV30 | ¥6,200 | |
| 09111-AA010 |
Jack Assy
2004-04 → 2004-06
ended
|
MCV30 | ¥5,900 | |
| 09111-AA010 |
Jack Assy
2004-06 → 2006-03
ended
|
MCV30 | ¥5,900 | |
| 09113 — Handle, Jack | ||||
| 09113-33010 |
Handle, Jack
2001-07 → 2004-06
ended
|
MCV30 | ¥540 | |
| 09113-33010 |
Handle, Jack
2004-06 → —
|
MCV30 | ¥540 | |
| 09130 — Pliers | ||||
| 09130-50030 |
Pliers
2001-07 → 2004-06
ended
|
MCV30 | ¥590 | |
| 09130-50030 |
Pliers
2004-06 → —
|
MCV30 | ¥590 | |
| 09135 — Driver, Screw | ||||
| 09135-50040 |
Driver, Screw
2001-07 → 2004-06
ended
|
MCV30 | ¥590 | |
| 09135-50040 |
Driver, Screw
2004-06 → —
|
MCV30 | ¥590 | |
| 09141 — Spanner | ||||
| 09141-50050 note |
Spanner
2001-07 → 2004-06
ended
|
MCV30 | ¥350 | |
| 09141-50060 note |
Spanner
2001-07 → 2004-06
ended
|
MCV30 | ¥580 | |
| 09141-50050 note |
Spanner
2004-06 → —
|
MCV30 | ¥350 | |
| 09141-50060 note |
Spanner
2004-06 → —
|
MCV30 | ¥580 | |
| 09150 — Wrench, Hub Nut Box | ||||
| 09150-50010 |
Wrench, Hub Nut Box
2001-07 → 2004-06
ended
|
MCV30 | ¥1,190 | |
| 09150-50010 |
Wrench, Hub Nut Box
2004-06 → 2006-03
ended
|
MCV30 | ¥1,190 | |
| 09184 — Stopper, Wheel | ||||
| 09184-00010 |
Stopper, Wheel
2001-07 → 2004-06
ended
|
MCV30 | ¥770 | |
| 09184-00010 |
Stopper, Wheel
2004-06 → —
|
MCV30 | ¥770 | |
| 51960 — Hook Assy, Front | ||||
| 51960-33010 |
Hook Assy, Front
2001-07 → 2004-06
ended
|
MCV30 | ¥2,560 | |
| 51960-33010 |
Hook Assy, Front
2004-06 → —
|
MCV30 | ¥2,560 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
